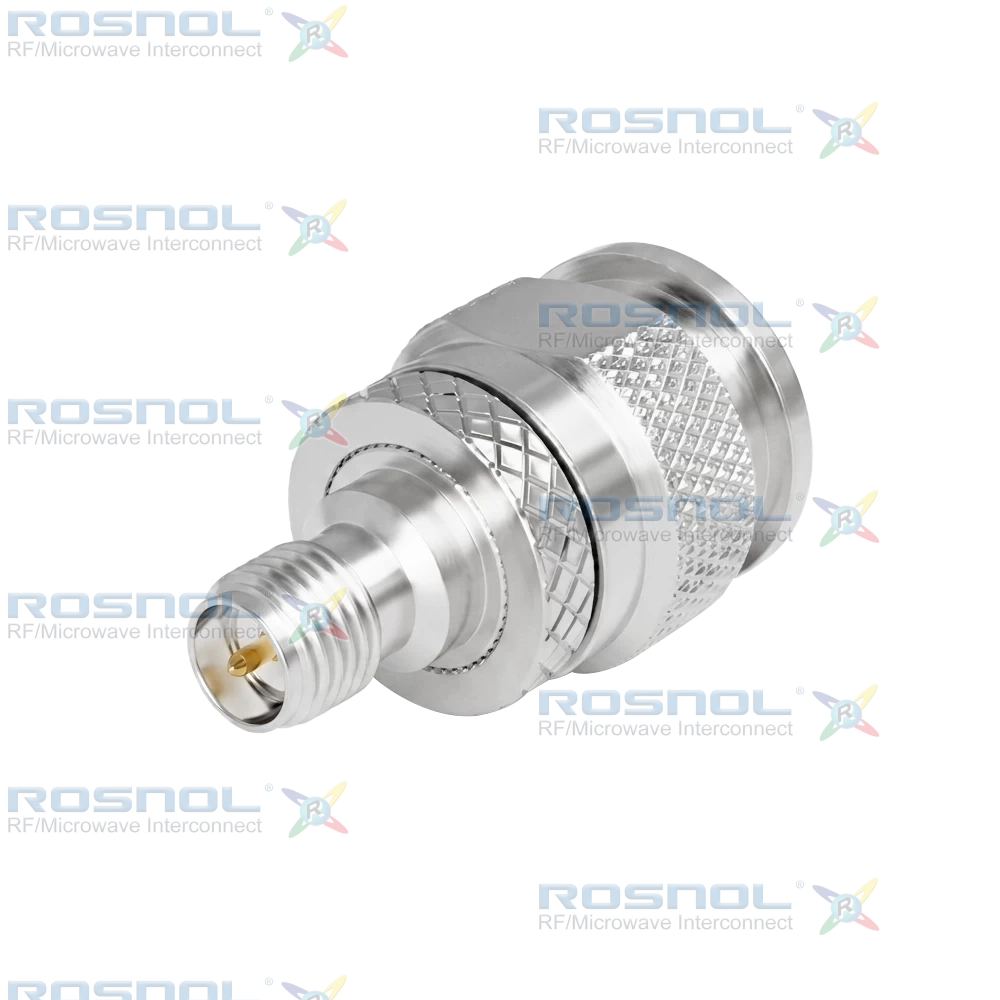

TNC RP Male to SMA RP Female Adapter, 18 GHz

Order No:AD-T5A75A/H44-H4
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
Between Series
Connector 1 Series:
TNC
Connector 1 Gender:
R/P Plug (Male)
Connector 2 Series:
SMA
Connector 2 Gender:
R/P Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Copper-Tin-Zinc Alloy
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Copper-Tin-Zinc Alloy
VSWR, Max:
1.30

Description

TNC Reverse Polarity Male to SMA Reverse Polarity Female Straight Adapter, DC-18 GHz, VSWR ≤ 1.3, 50 Ω Impedance.

ROSNOL AD-T5A75A/H44-H4 is a 50 Ω RF adapter featuring a TNC Reverse Polarity Plug (Male) to SMA Reverse Polarity Jack (Female) configuration. Engineered for broadband RF applications, it operates from DC to 18 GHz with VSWR ≤ 1.30 and low insertion loss, providing reliable performance for wireless communication, RF testing, measurement equipment, and microwave systems.

This precision RF adapter incorporates phosphor bronze center contacts, brass bodies, PTFE insulators, and selected components finished with gold plating over non-magnetic nickel-phosphorus underplating and copper-tin-zinc alloy plating for enhanced conductivity and corrosion resistance. Electrical specifications include ≤0.1 × √F dB insertion loss, ≥5 GΩ insulation resistance, 480 Vrms working voltage, and power handling up to 80 W at 2 GHz.

With screw-lock coupling interfaces, a minimum of 500 mating cycles, and an operating temperature range of-65°C to +165°C, the AD-T5A75A/H44-H4 ensures stable RF connectivity in demanding environments. It is ideal for WLAN equipment, RF modules, antennas, test benches, instrumentation, and communication systems requiring secure reverse-polarity TNC-to-SMA interconnection while maintaining signal integrity across a wide frequency range.
