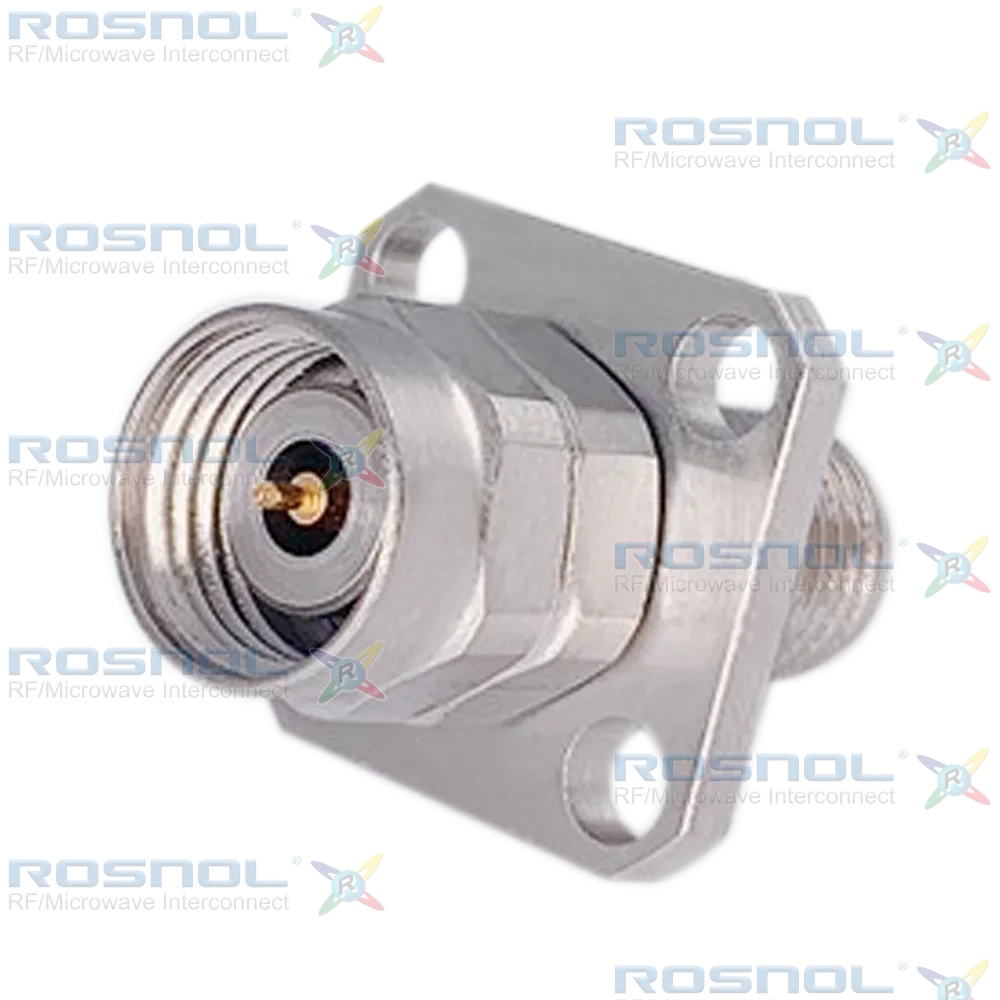

2.92mm Female to 2.4mm Male 4 Hole Flange Panel Mount Adapter, DC-40 GHz, VSWR ≤ 1.15, 50 Ohm Impedance.
The ROSNOL AD-Q1K25A-PF/9XX-9X is a precision RF adapter designed for DC to 40 GHz operation, featuring 50 Ω impedance, VSWR ≤ 1.15 (>23.13 dB return loss), and insertion loss ≤ 0.05√f (GHz) dB. Electrical ratings include insulation resistance ≥5 GΩ, test voltage 500 V rms, and working voltage 150 V rms, with RF leakage ≥100 dB up to 1 GHz. Coupling mechanisms are screw-lock on both sides, with center contact captivation ≥20 N and mechanical endurance of ≥500 cycles. The 4-hole flange mount ensures secure panel installation.
Constructed with beryllium copper center contacts plated with gold over nickel-phosphorus underplating, stainless steel bodies with passivation, and PS insulators for excellent dielectric stability. The adapter operates reliably across −60°C to +100°C, making it suitable for high-frequency and demanding RF environments.
ROSNOL’s precision-engineered RF adapters deliver consistent performance across RF and microwave systems. Manufactured in ISO 9001-certified facilities, all products comply with RoHS and REACH standards, offering a cost-effective alternative to leading European and American brands. Customization services for materials, plating, and mechanical design are available to meet specialized interconnect requirements.
