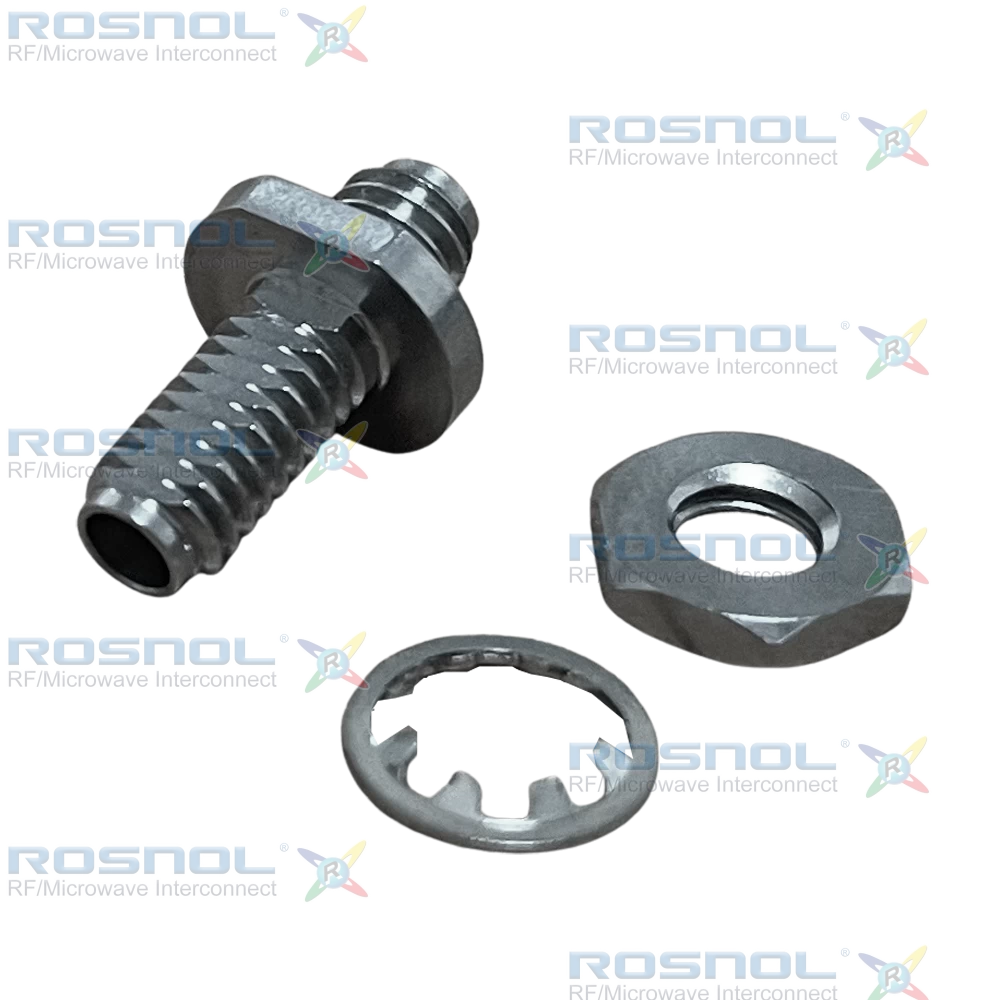

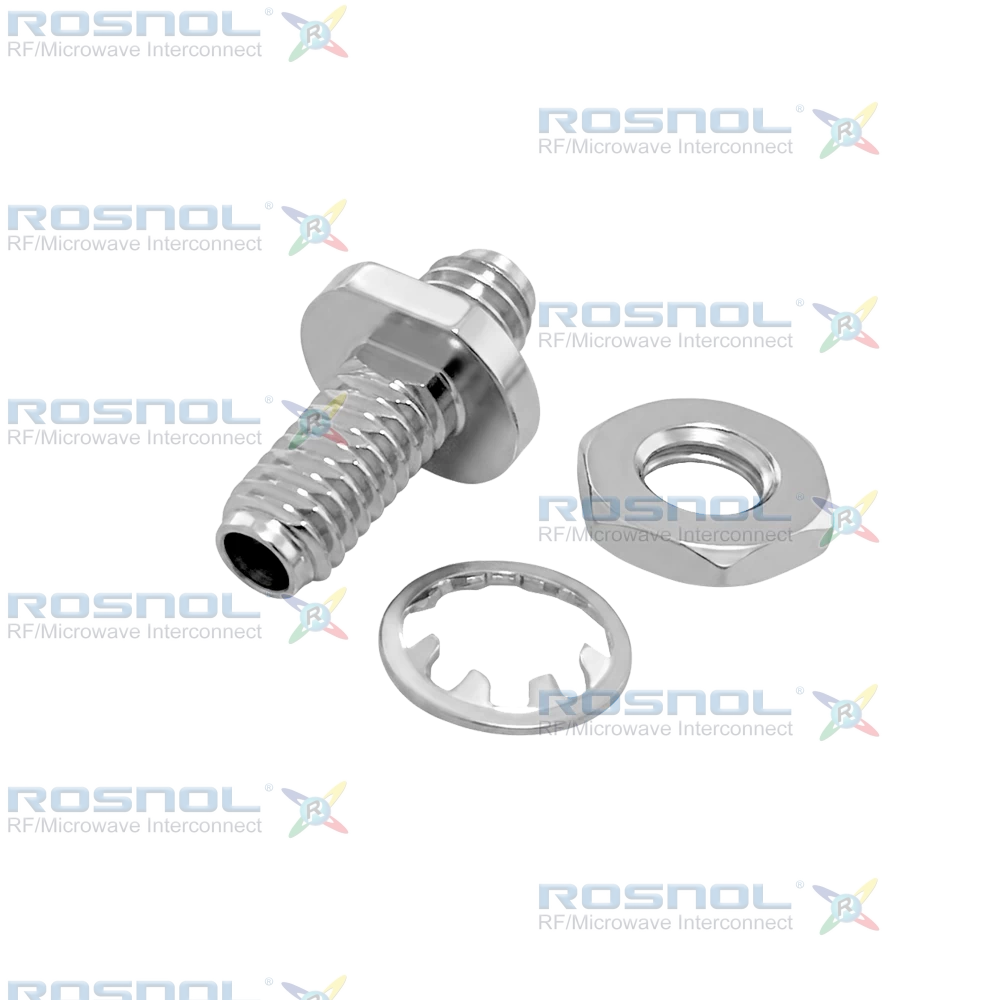

1.0mm Female Bulkhead Adapter, DC-110 GHz

Order No:AD-W2W25A-BH/9X-9X
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
In-Series
Connector 1 Series:
1.0mm
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
1.0mm
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
Bulkhead
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
110
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.35

Description

1.0mm Female to 1.85mm Female Bulkhead Adapter, DC-110 GHz, VSWR ≤ 1.35, 50 Ω Impedance.

ROSNOL AD-W2W25A-BH/9X-9X is a 1.00 mm Jack (Female) to 1.00 mm Jack (Female) bulkhead adapter designed for broadband RF and microwave applications. Supporting 50 Ω impedance and an ultra-wide frequency range from DC to 110 GHz, it delivers VSWR ≤ 1.35 and insertion loss ≤ 0.6 dB for precise high-frequency signal transmission.

The adapter features beryllium copper center contacts with gold plating and a passivated stainless-steel body for excellent conductivity, durability, and corrosion resistance. PEI insulation ensures electrical stability, while stainless-steel mounting hardware and silicone sealing components enhance mechanical reliability. The screw-lock coupling mechanism supports over 500 mating cycles.

Engineered for millimeter-wave systems, advanced test equipment, high-speed communication platforms, and laboratory instrumentation, this adapter provides reliable signal integrity and stable performance across extremely wide frequency bandwidths.
