Key Specifications
Type Design:
Standard
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Style:
Panel Connector
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End
Description

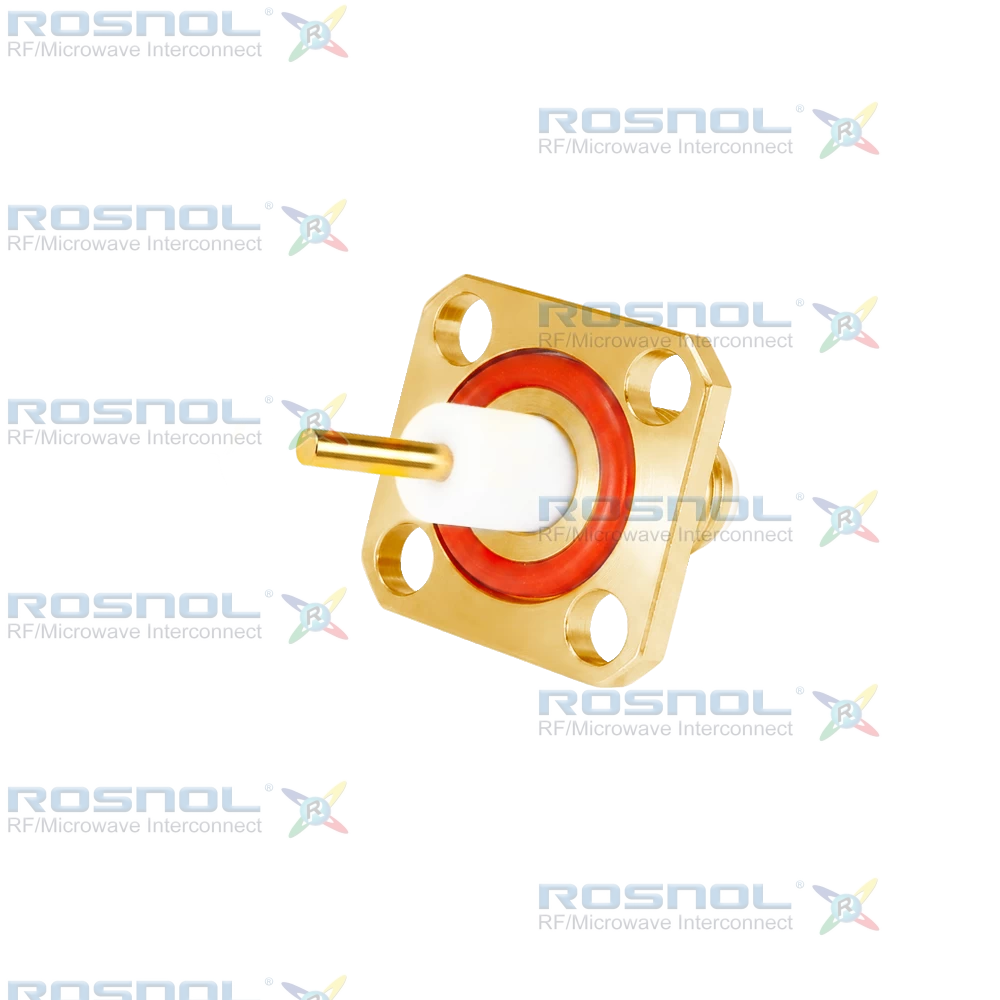

SMA Jack (Female) | Solder Attachment | 4 Hole Flange | Stainless steel Body| Hermetic sealed
The ROSNOL HS-SMA2GFA50-1839A/9Q is a 50 Ω SMA Jack (Female) connector designed for precision RF applications. It features a solder attachment, hermetic sealing, and a 4-hole flange mount with stub terminals. The hole spacing is 8.64mm (.340 inch), and it supports DC to 18 GHz operation with a VSWR of ≤ 1.30 (≥ 17.7 dB).This connector includes a screw-lock coupling mechanism rated for ≥ 500 mating cycles, with axial contact captivation ≥ 27 N and radial ≥ 3 Ncm.
Made with beryllium copper center contacts and stainless steel body, both plated in 3 µinch gold over 80 µinch non-magnetic nickel-phosphorus, and a PTFE insulator, the ROSNOL RF connector delivers high reliability and performance in hermetically sealed environments.
All Rosnol RF components are precision-manufactured in ISO 9001-certified facilities, and are fully RoHS and REACH compliant, ensuring environmental safety and global regulatory alignment. Customization services for plating, materials, and mechanical design are available upon request.
