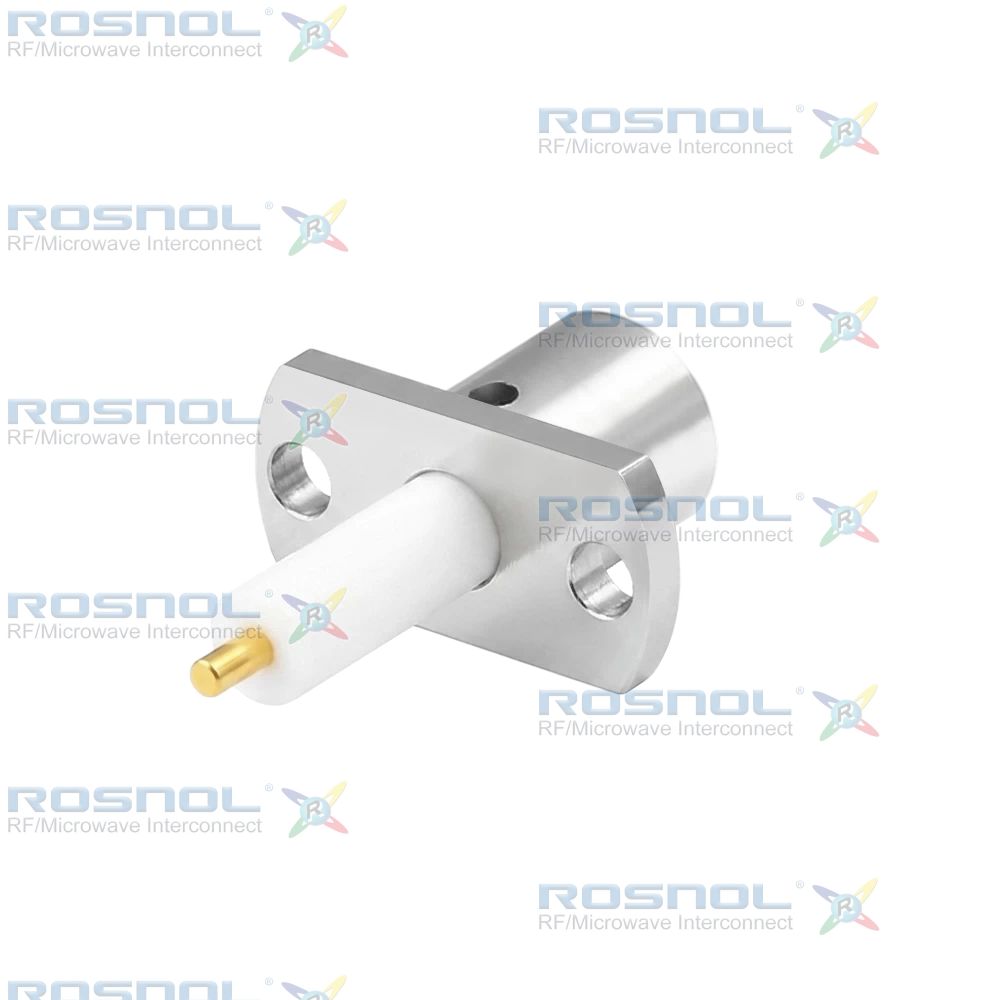

BMA 2 Hole Flange Female Connector, 22 GHz

Order No:BMA2GTA50-1798A-EC/9X
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
22
VSWR, Max:
1.25
Connector Series:
BMA
Connector Gender:
Jack (Female)
Connection Method:
Slide-On
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Epoxy Captivation
Bankend Type:
Coaxial End

Description

BMA Female Panel Connector, 2 Hole Flange Mount, 12.22 mm (.481 in) Hole Spacing, 50 Ω, DC-22 GHz, VSWR ≤ 1.25.

ROSNOL BMA2GTA50-1798A-EC/9X is a precision BMA Jack (Female) RF Connector engineered for broadband RF and microwave interconnect applications. Featuring a 2-hole flange mount design with 12.22 mm hole spacing, this connector simplifies panel installation while providing secure mechanical retention and interface consistency. Designed for 50 Ω systems and operating from DC to 22 GHz, it achieves VSWR ≤ 1.25, low insertion loss, and excellent RF leakage performance. The epoxy captivated center contact design further enhances structural stability and long-term reliability in demanding operating environments.

The connector incorporates a gold-plated beryllium copper center contact with non-magnetic nickel-phosphorus underplating to ensure reliable conductivity and wear resistance. Its passivated stainless-steel body offers excellent durability and corrosion protection, while the PTFE insulator maintains stable dielectric properties across the full frequency range. The center contact utilizes a solder attachment structure for dependable cable termination and electrical continuity. Mechanical characteristics include a slide-on coupling mechanism, 1000 mating cycles minimum, engagement force of ≤13.5 N, and operation between-65°C and +165°C.

This BMA Female Connector is ideal for microwave equipment, RF communication systems, aerospace electronics, wireless infrastructure, test and measurement equipment, and compact RF module integration. Its combination of broadband performance, rugged materials, and precise flange-mount construction makes it a reliable choice for engineers seeking stable RF connectivity in advanced electronic systems.
