BMA 2 Hole Flange Female Connector, 22 GHz

Order No:BMA2GTA50-1503A/9X
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
22
VSWR, Max:
1.25
Connector Series:
BMA
Connector Gender:
Jack (Female)
Connection Method:
Slide-On
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

BMA Female Panel Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-22 GHz, VSWR ≤ 1.25.

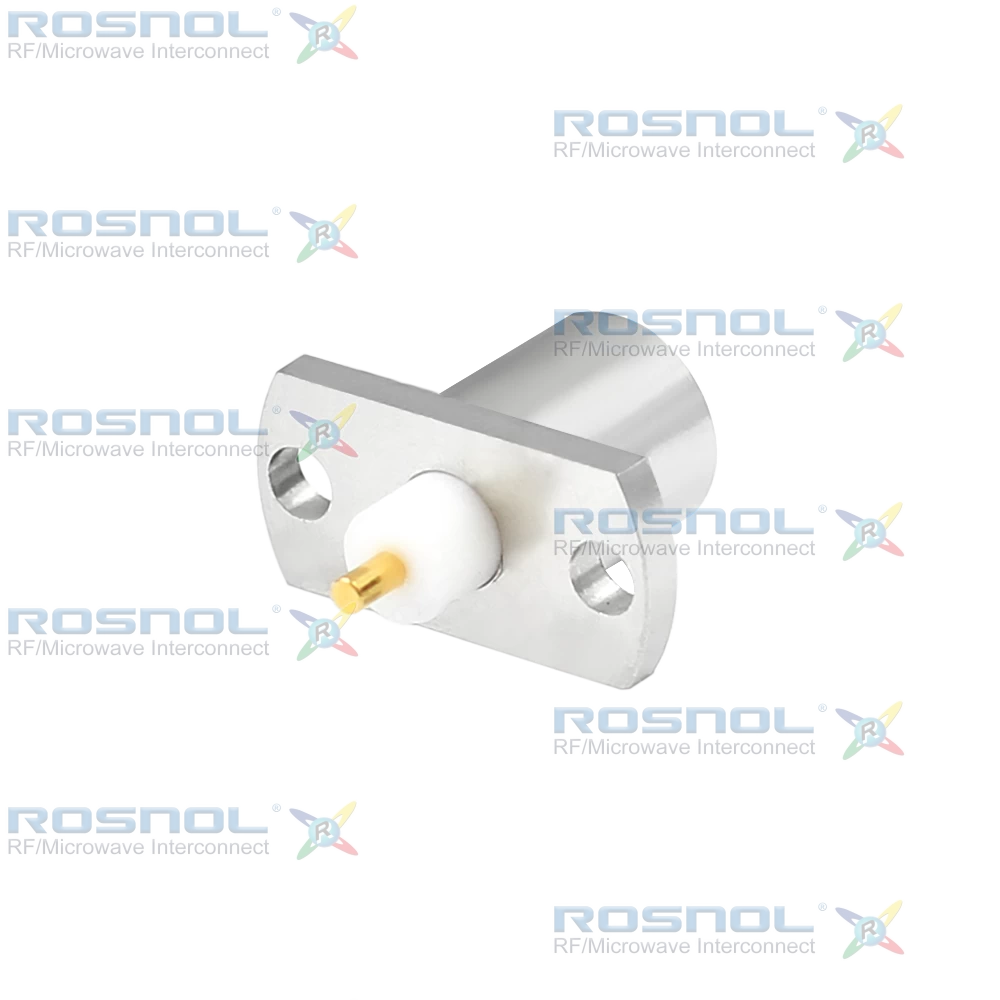

ROSNOL BMA2GTA50-1503A/9X is a BMA Jack (Female) Slide-On Panel RF Connector engineered for broadband RF and microwave applications. Featuring a 2-hole flange mount design with 12.22 mm hole spacing, this connector provides secure panel installation and compatibility with standard RF mounting layouts. Designed with 50 Ω impedance and supporting frequencies from DC to 22 GHz, it achieves VSWR ≤ 1.25, low insertion loss, and stable signal transmission performance. The slide-on coupling design makes it well suited for high-density RF systems where quick engagement and reliable connectivity are required.

Constructed with a gold-plated beryllium copper center contact over a non-magnetic nickel-phosphorus underplating, the connector delivers excellent electrical conductivity and wear resistance. The passivated stainless-steel body enhances durability and corrosion protection, while the PTFE insulator provides consistent dielectric characteristics. The center contact utilizes a solder attachment design that ensures secure cable termination and dependable electrical continuity. Mechanical characteristics include 1000 mating cycles minimum, center contact retention of ≥27 N, and operation across a temperature range of-65°C to +165°C.

This BMA Female Connector is suitable for microwave communication equipment, RF modules, aerospace systems, wireless infrastructure, instrumentation platforms, and radar-related electronics. Its broadband frequency coverage, robust materials, and slide-on mating mechanism provide engineers with a reliable RF connectivity solution for demanding applications.
