SMA Jack (Female) Straight Bulkhead Cable Connector for RSR-086, RSF-086, RSF-086-FEP, RSF-086-PVC, RG-405, EF-405, Belden 1671A, Belden 1671J, DC-18GHz VSWR 1.25
Key Specifications
Type Design:
Standard
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
18
VSWR, Max:
1.25
Connector Style:
Cable Connector
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Crimped or Soldered
Cable Entry:
Soldered
Mount Method:
Bulkhead
Body Material:
Stainless Steel
Body Plating:
Gold Plating (Nickel underplated)
Captivated Type:
Mechanical Captivation
Suitable Cables:
Semi-Rigid 0.086(RSR-086)
Description

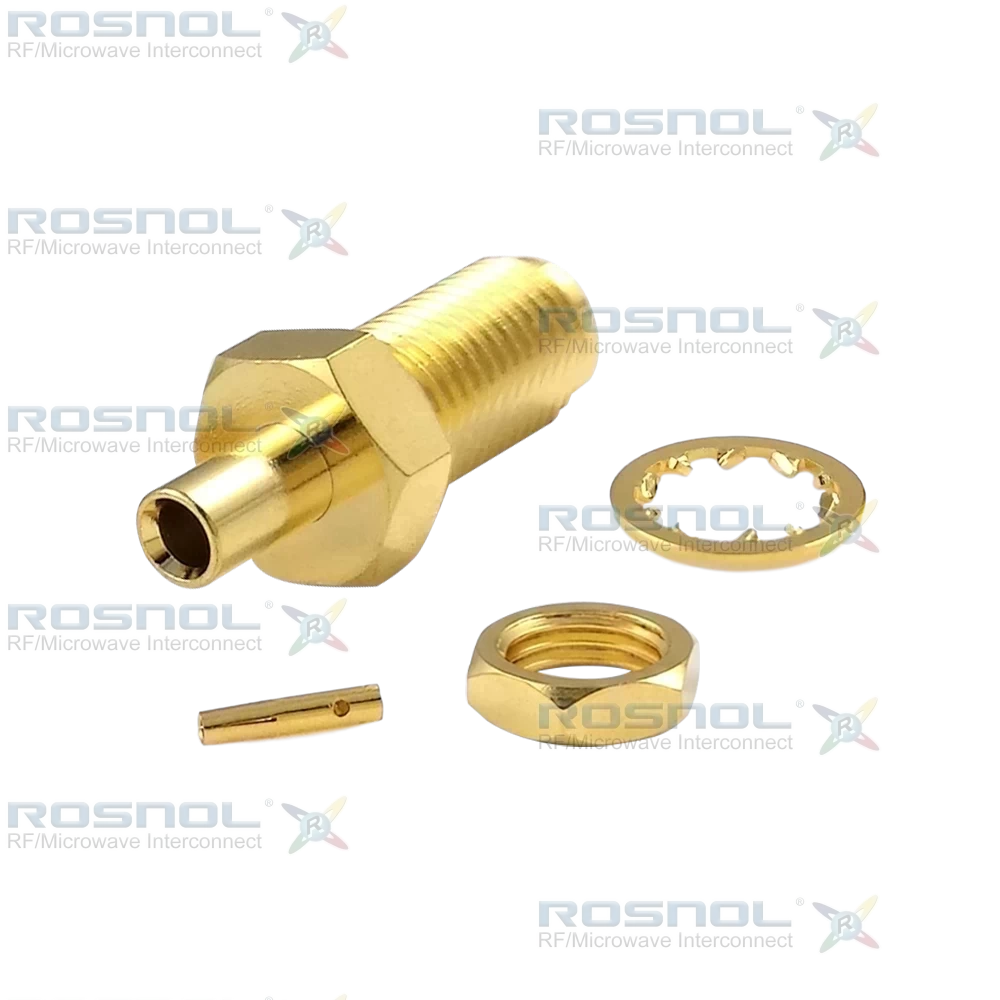

SMA Jack (Female) Bulkhead | Soldered Cable Entry | Screw-lock | Stainless Steel Body
The ROSNOL SMA2EA50-0085B/9Q connector is a bulkhead SMA jack optimized for RF systems up to 18 GHz. It features a 50Ω impedance and VSWR ≤1.25, with a screw-lock coupling mechanism, soldered cable entry, and a soldered centre contact. Supported cable types include Semi-Rigid 0.086 (RSR 086), Semi-Flex 0.086 (RSF 086), RSF-086-FEP, RSF-086-PVC, RG 405, EF 405, BELDEN-1671A, and BELDEN-1671J.The connector body is stainless steel with gold plating over nickel underplating. The centre contact is beryllium copper with gold plating, and the insulator is PTFE. Fastening components including the nut are brass with gold plating, ensuring secure panel mounting and mechanical integrity.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All Rosnol RF components are precision-manufactured in ISO 9001-certified facilities, and are fully RoHS and REACH compliant, ensuring environmental safety and global regulatory alignment. Customization services for plating, materials, and mechanical design are available upon request.
