Precision SMA Jack (Female) 4 Hole Panel Cable Connector for SR-047, SF-047, RSF-047-PVC, RSF-047-FEP, DC -26.5GHz VSWR 1.30
Key Specifications
Type Design:
Precision
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
26.5
VSWR, Max:
1.30
Connector Style:
Cable Connector
Connector Series:
Precision SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Plug-in
Cable Entry:
Solder Clamp
Mount Method:
4 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Suitable Cables:
Semi-Rigid 0.047(RSR-047)
Description
Precision SMA Jack (Female) | Solder Clamp Cable Entry | Screw-lock | Stainless Steel Body

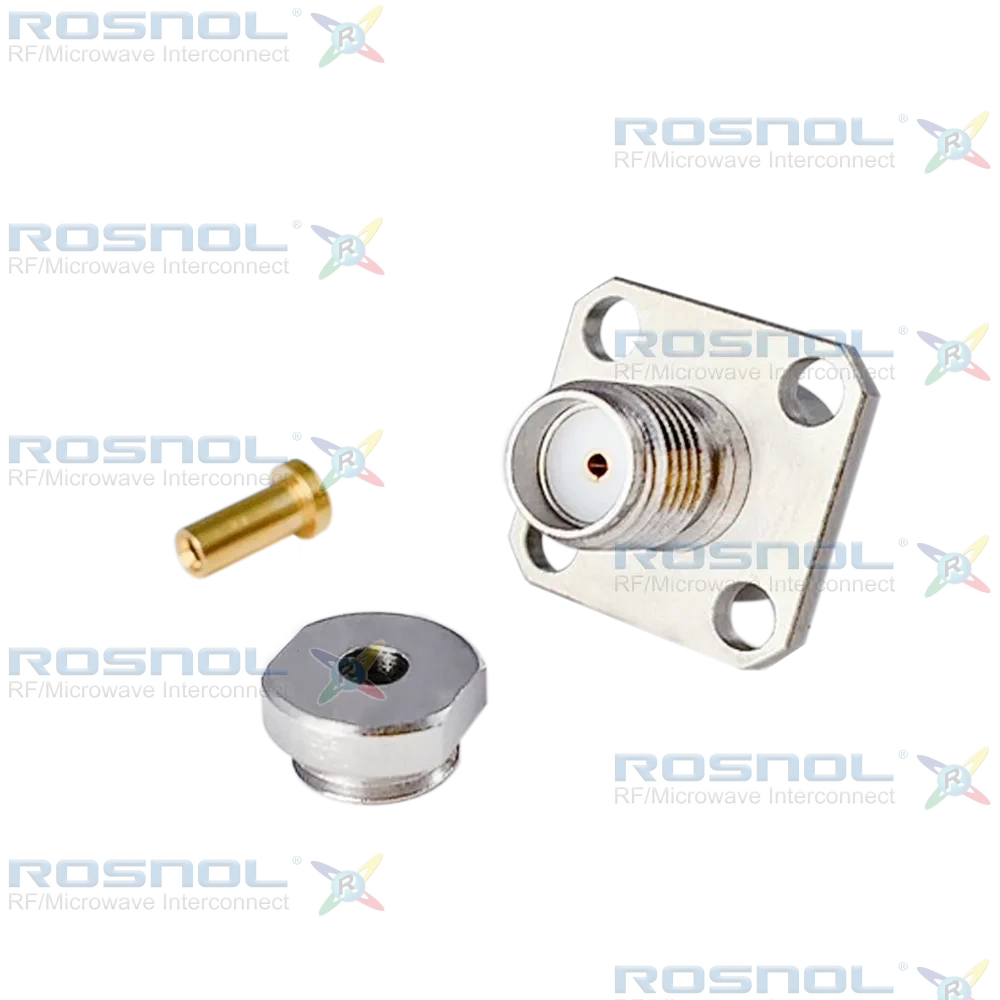

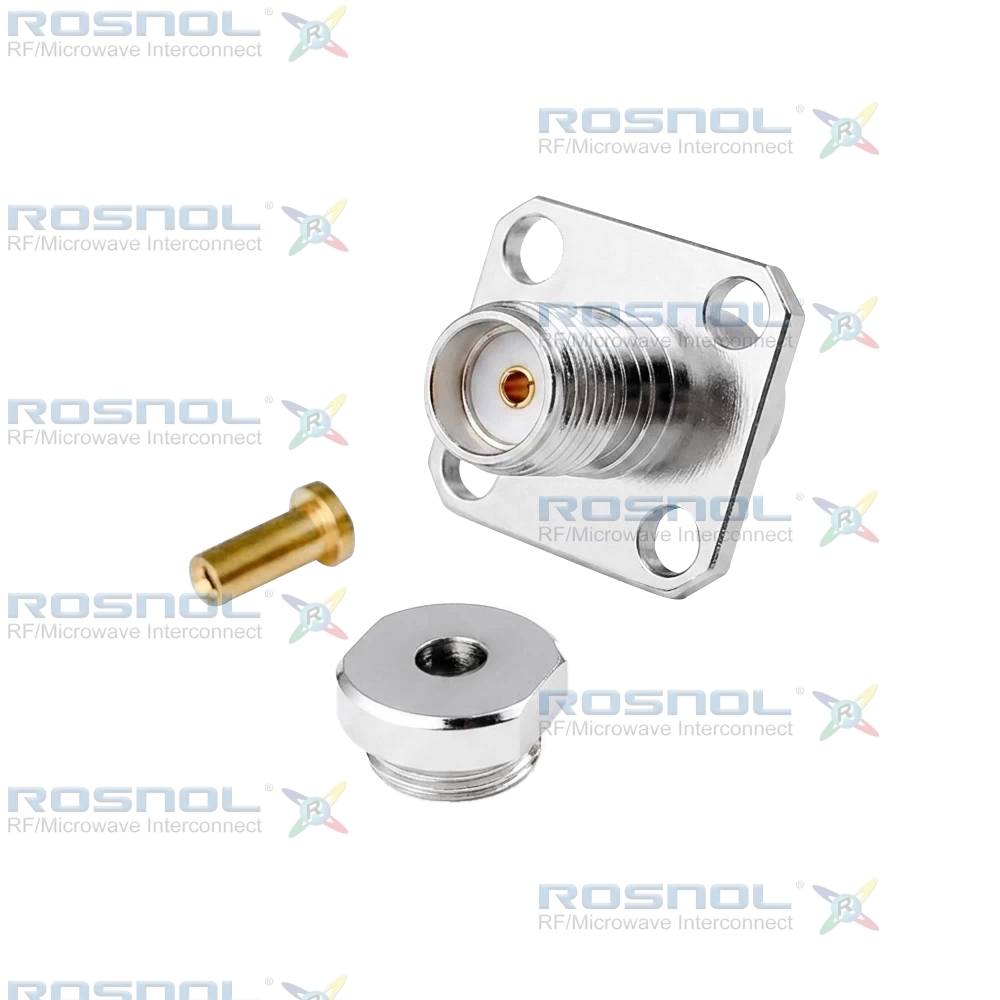

The ROSNOL PCA2KBF50-0047A/9X is a Precision SMA Jack (Female) connector designed for Semi-Rigid 0.047 (RSR-047), Semi-Flex 0.047 (RSF-047), RSF-047 PVC, RSF-047 FEP, EF047 cables. Featuring a screw-lock coupling mechanism, solder clamp cable entry, and plug-in center contact, this connector supports frequencies up to 26.5 GHz with a nominal impedance of 50 Ω. VSWR is ≤ 1.30 (≥ 17.69 dB), and insertion loss is ≤ 0.1 × √F (GHz) dB, ensuring stable performance across the RF spectrum.The connector is constructed with a passivated stainless steel body, gold-plated beryllium copper center contact (nickel underplated), and PTFE insulator. Designed for 4-hole panel mounting, it offers robust mechanical integrity and consistent electrical performance in demanding environments.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All Rosnol RF components are precision-manufactured in ISO 9001-certified facilities, and are fully RoHS and REACH compliant, ensuring environmental safety and global regulatory alignment. Customization services for plating, materials, and mechanical design are available upon request.
