UHF Jack (Female) Cable Connector for RG-174, RG-188A, RG-316, BELDEN 7805, DC-300MHz
Key Specifications
Type Design:
Standard
Body Style:
Straight
Impedance (Ohm):
Non-Constant
Frequency, Max (GHz):
300MHz
Connector Style:
Cable Connector
Connector Series:
UHF
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Crimped or Soldered
Cable Entry:
Crimped
Mount Method:
None
Body Material:
Brass
Body Plating:
Copper-Tin Zinc Alloy
Captivated Type:
Mechanical Captivation
Suitable Cables:
RG-174(174/U)
Description

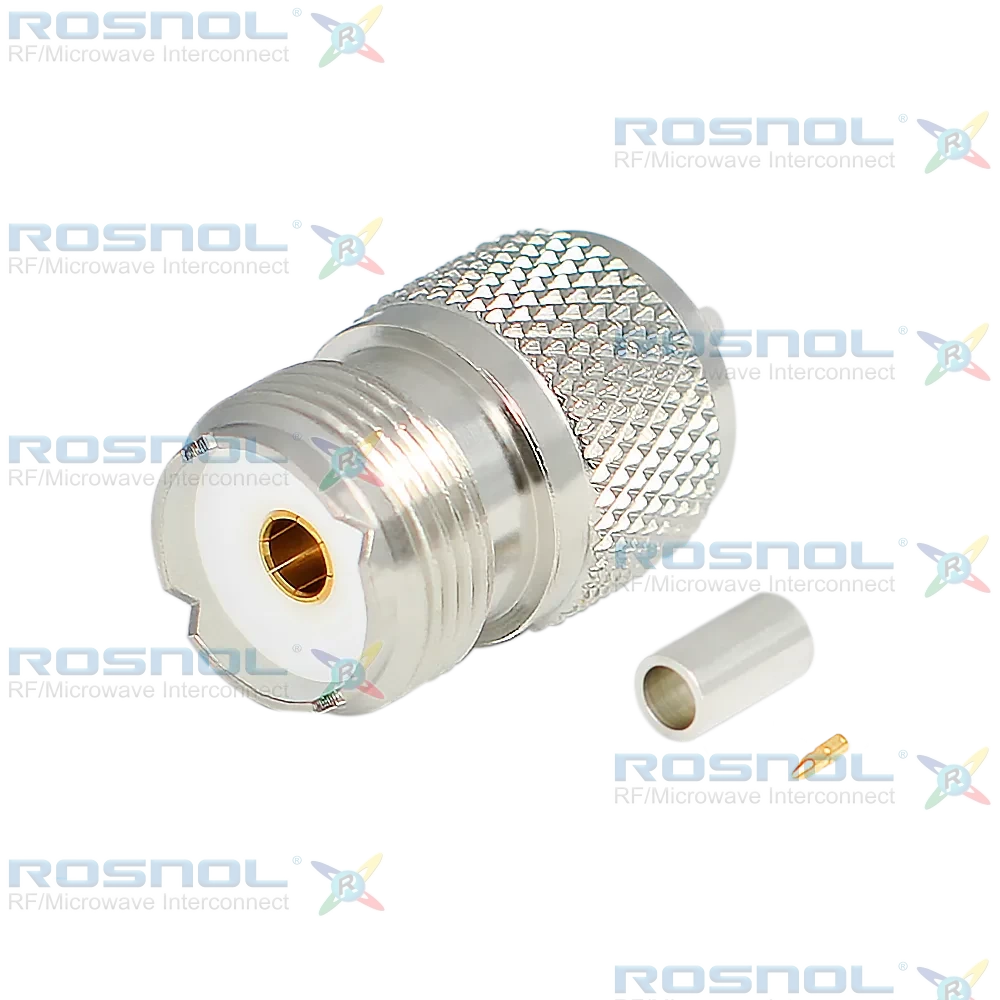

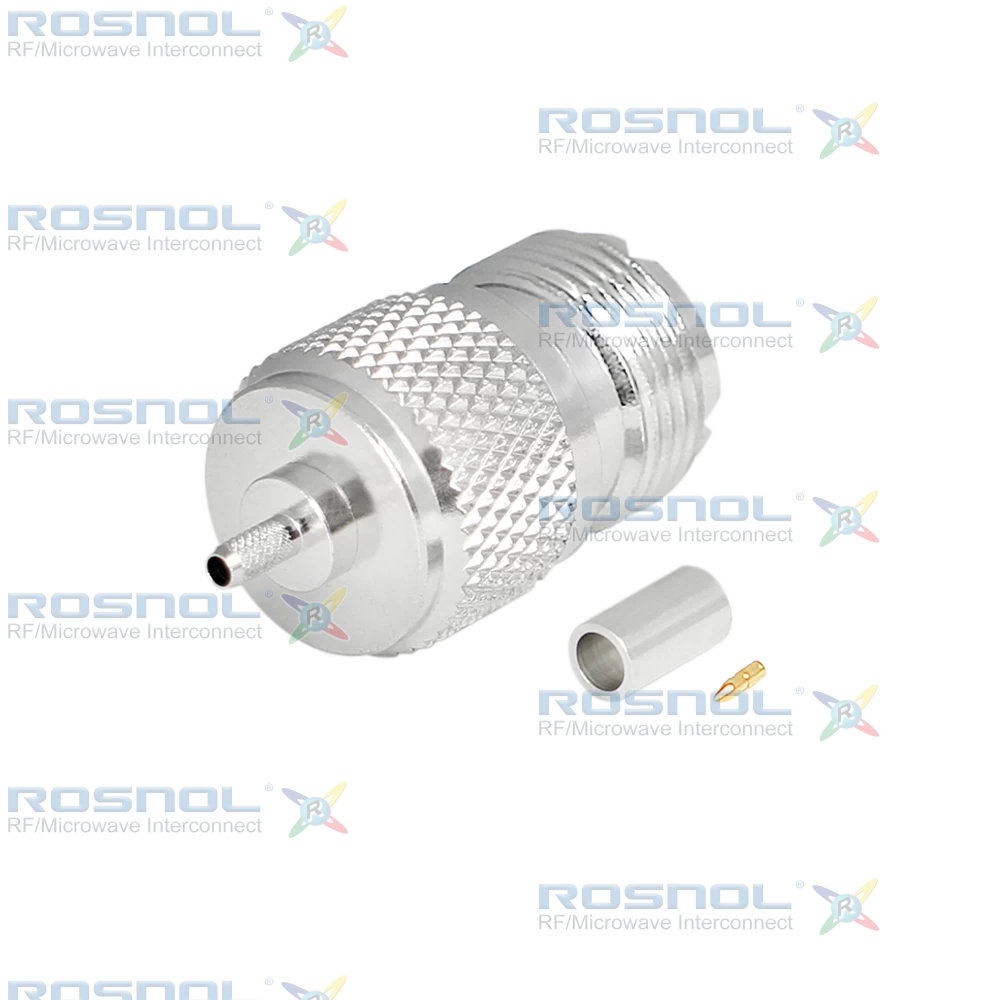

UHF Jack (Female) | Crimped Cable Entry | Screw-lock | Brass Body
The ROSNOL UHF2CN0-G316A/H4 is a straight cable jack optimized for RF applications up to 300 MHz. It features a screw-lock coupling mechanism and a crimped cable entry, with a centre contact that supports both soldered and crimped termination. The connector provides non-constant impedance and is built for mechanical durability. Structurally, it includes a cylindrical body with a total length of 34.8 mm [1.370 inch], and diameters of Ø1.6 mm [.063 inch], Ø3 mm [.118 inch], and Ø4 mm [.157 inch], with a thread size of 5/8-24UNEF-2A and hex width of 7.2 mm [.283 inch].The body and crimp ferrule are made of brass with copper-tin-zinc alloy plating. The centre contact is brass with gold plating over a nickel underlayer. The insulator is PTFE. This connector supports RG174, RG188A, RG316, and BELDEN7805 cables. Crimp dimensions are 3.25 mm [.128 inch] for the ferrule and 0.7 mm [.028 inch] for the centre contact.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All Rosnol RF components are precision-manufactured in ISO 9001-certified facilities, and are fully RoHS and REACH compliant, ensuring environmental safety and global regulatory alignment. Customization services for plating, materials, and mechanical design are available upon request.
