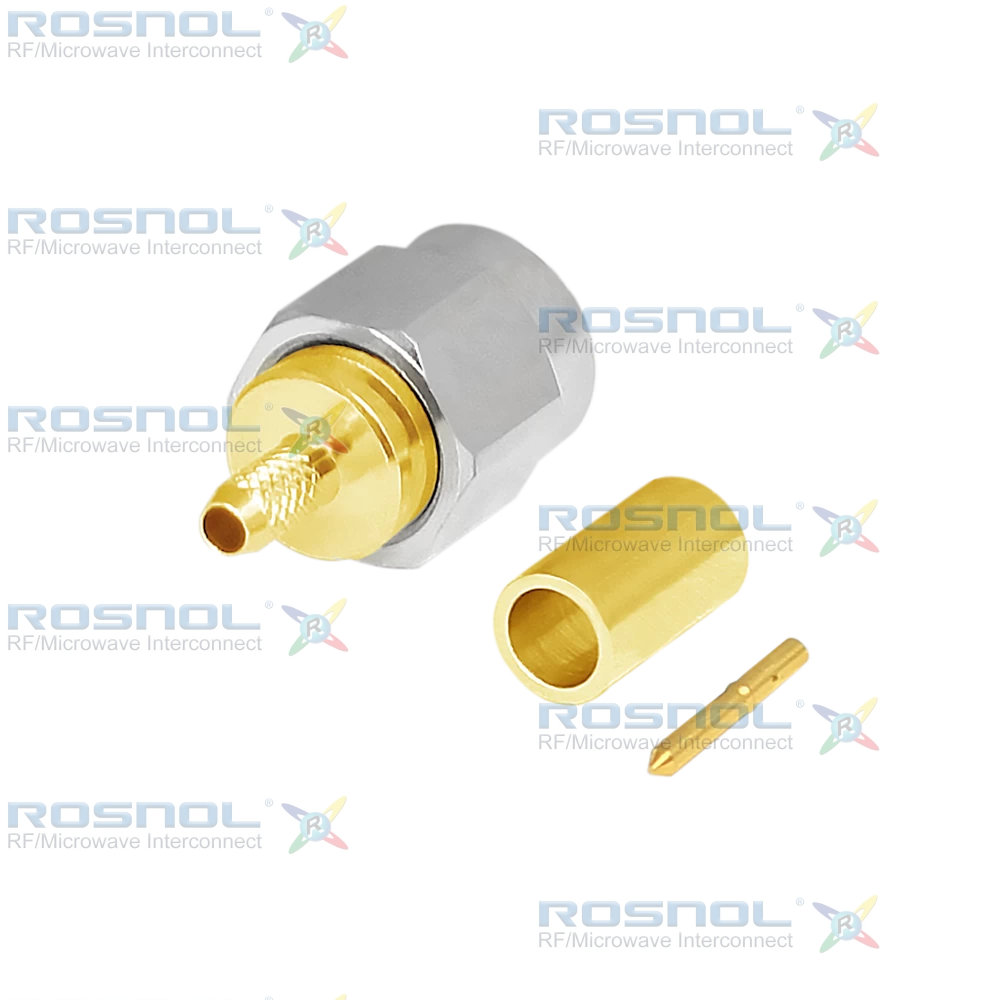

SMA Plug (Male) Cable Connector for RG-174, RG-188A, RG-316, BELDEN 7805, DC- 6 GHz VSWR 1.20
Key Specifications
Type Design:
Standard
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
6.0
VSWR, Max:
1.20
Connector Style:
Cable Connector
Connector Series:
SMA
Connector Gender:
Plug (Male)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Crimped or Soldered
Cable Entry:
Crimped
Mount Method:
None
Body Material:
Brass
Body Plating:
Gold Plating (Nickel underplated)
Captivated Type:
Mechanical Captivation
Suitable Cables:
RG-174(174/U)
Description
SMA Plug (Male) | Crimped Cable Entry | Screw-lock | Brass Body
The ROSNOL SMA1C50-G316A/11X is a straight SMA plug connector designed for RG174, RG188A, RG316, and BELDEN7805 cables. Featuring a screw-lock coupling mechanism and crimped cable entry, it supports 50Ω impedance and operates up to 6 GHz with VSWR ≤ 1.20 (≥ 20.8 dB). Insertion loss is rated ≤ 0.03 × √F (GHz) dB.Constructed with a gold-plated brass body and a passivated stainless steel coupling nut, and a brass center contact with gold plating over nickel, this connector ensures excellent durability and signal integrity. The insulator is PTFE, and the gasket is silicone rubber. Crimp ferrules are gold-plated brass.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All Rosnol RF components are precision-manufactured in ISO 9001-certified facilities, and are fully RoHS and REACH compliant, ensuring environmental safety and global regulatory alignment. Customization services for plating, materials, and mechanical design are available upon request.
