Key Specifications
Type Design:
Standard
Impedance (Ohm):
50
Frequency, Max (GHz):
40
VSWR, Max:
1.20
Power, Max (Watts):
1
Connector Series:
SMP
Connector Gender:
Jack (Female)
Connection Method:
Snap-On
Body Material:
Brass
Body Plating:
Gold Plating (Nickel underplated)
Description

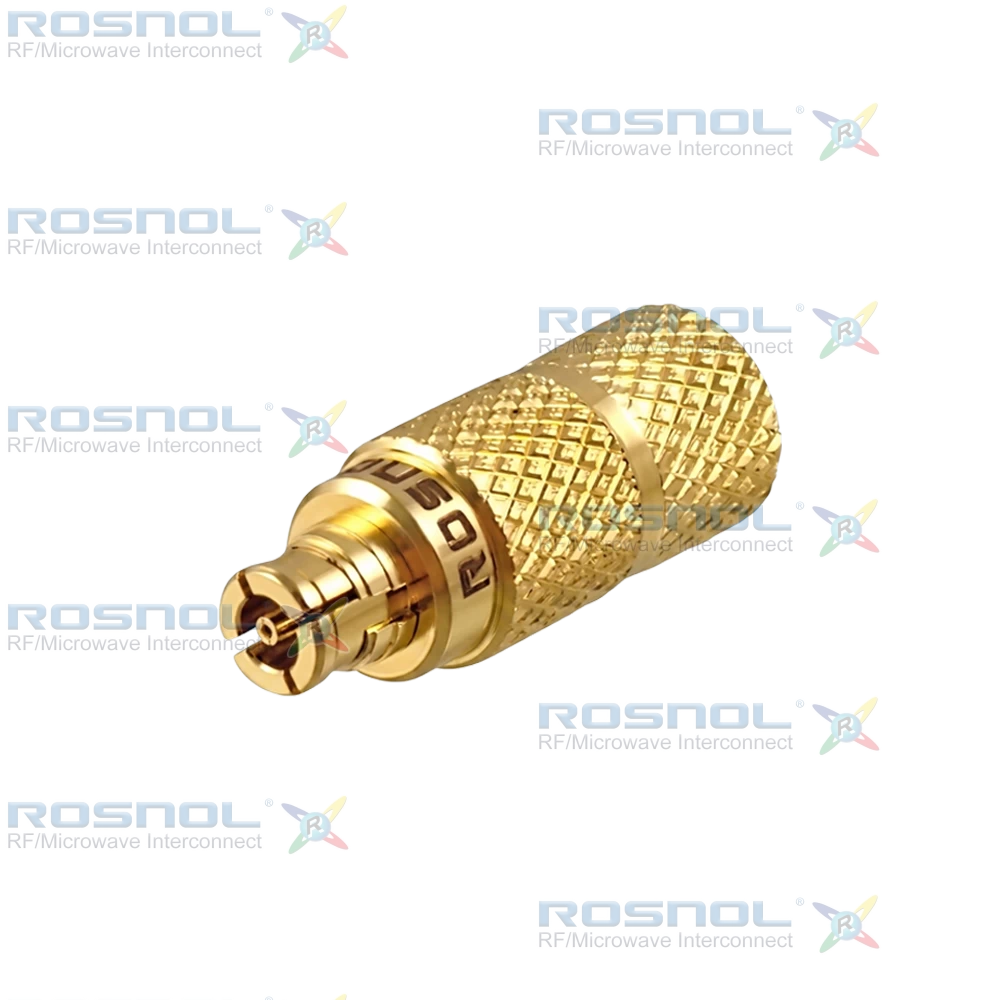

SMP Termination Load Jack (Female) | DC to 40 GHz | 50 Ω | 1 W | Snap-On Coupling
The ROSNOL T-P25-40G1WA/91 is a precision-engineered SMP termination load designed for ultra-high-frequency RF systems operating up to 40 GHz. This 50 Ω termination ensures accurate impedance matching and delivers a VSWR of ≤ 1.20 (Return Loss ≥ 20.8 dB), minimizing signal reflections for optimal performance. Rated for 1 W average power at 25°C, it incorporates a snap-on coupling mechanism for quick and secure engagement. The design supports reliable operation across a temperature range of -55°C to +125°C, making it suitable for demanding RF and microwave environments, including modular systems and high-density interconnect applications.The termination is constructed from high-quality materials to guarantee electrical stability and mechanical durability. The center contact is beryllium copper with gold plating over a nickel underlayer, ensuring excellent conductivity and wear resistance. The body is brass with gold plating for superior corrosion protection, and the insulator is PS for stable dielectric performance. This model is ideal for telecommunications systems, RF test benches, and precision measurement setups requiring dependable low-reflection terminations at extremely high frequencies.
ROSNOL manufactures all RF components under ISO 9001-certified processes and ensures full compliance with RoHS and REACH standards. Our products combine premium quality with competitive pricing, serving as cost-effective alternatives to leading international brands. Customization services for materials, plating, and mechanical design are available to meet specialized RF system requirements.
