Key Specifications
Type Design:
Standard
Impedance (Ohm):
50
Frequency, Max (GHz):
18
VSWR, Max:
1.20
Power, Max (Watts):
2
Connector Series:
N
Connector Gender:
Plug (Male)
Connection Method:
Threaded (Screw-lock)
Body Material:
Brass
Body Plating:
Copper-Tin Zinc Alloy
Description

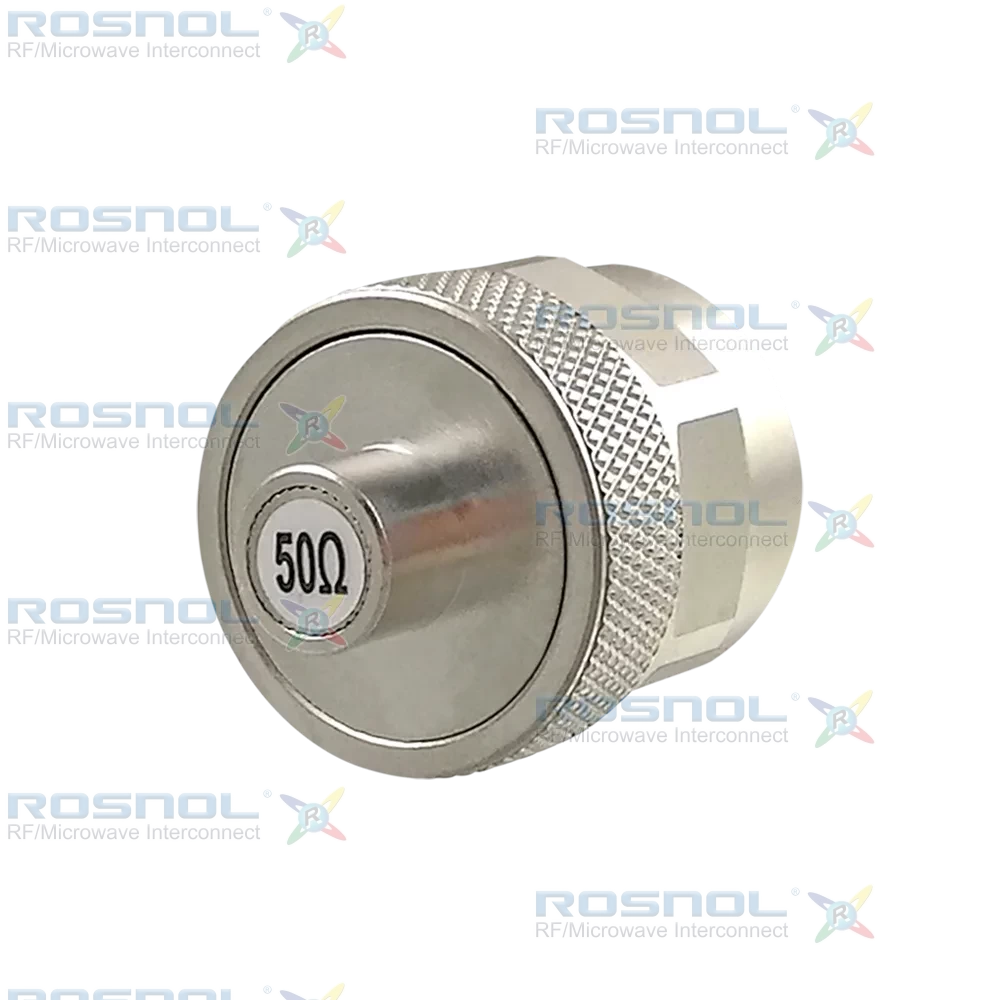

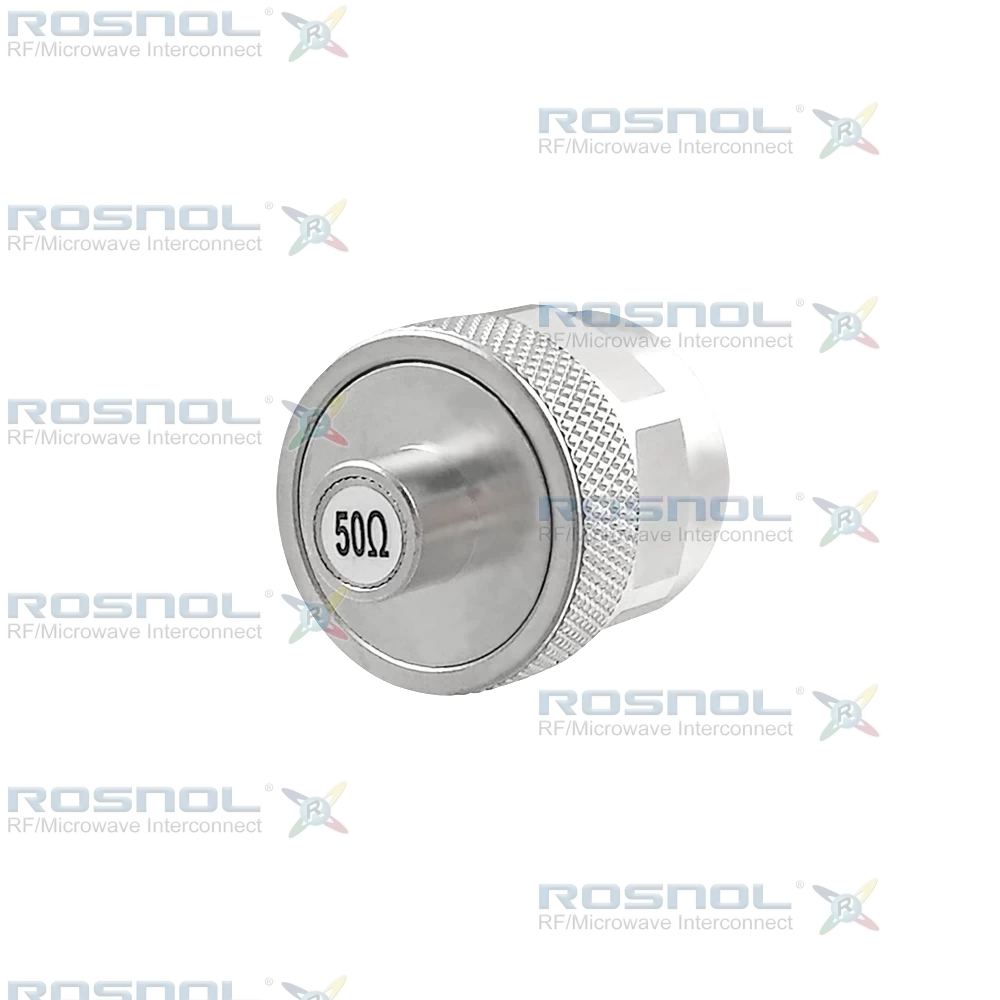

N Type Termination Load Plug (Male) | DC to 18 GHz | 50 Ω | 2 W
The ROSNOL T-N15-18G2WA/H44 is an N Type termination load plug developed for RF and microwave systems requiring stable signal termination up to 18 GHz. It provides a nominal impedance of 50 Ω and supports operation from DC to 18 GHz with a maximum VSWR of ≤ 1.20 (Return Loss ≥ 20.83 dB). Rated for an average power handling of 2 W, this termination load effectively absorbs RF energy to reduce reflections and protect system components. The screw-lock coupling mechanism ensures secure mechanical connection in professional RF installations and test environments.The center contact is manufactured from phosphor bronze with gold plating over a nickel underlayer to ensure reliable electrical performance. The connector body and coupling nut are constructed from brass with a copper–tin–zinc alloy plating, providing a balanced combination of mechanical strength and corrosion resistance. A PTFE insulator maintains stable dielectric characteristics, while a silicone rubber gasket supports reliable environmental sealing. The mechanical design is suitable for repeated mating cycles in RF test and measurement applications.
ROSNOL termination loads are produced under ISO 9001-certified quality management systems and comply with RoHS and REACH requirements. Offering dependable RF performance, robust mechanical construction, and competitive pricing, ROSNOL termination loads provide a practical alternative to established European and American manufacturers. Flexible customization services are available to accommodate specific requirements for materials, plating, and frequency performance.
