Key Specifications
Type Design:
Standard
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Style:
PCB Connector
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
None
Body Material:
Brass
Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Captivated Type:
Mechanical Captivation
Bankend Type:
Flat End
Description

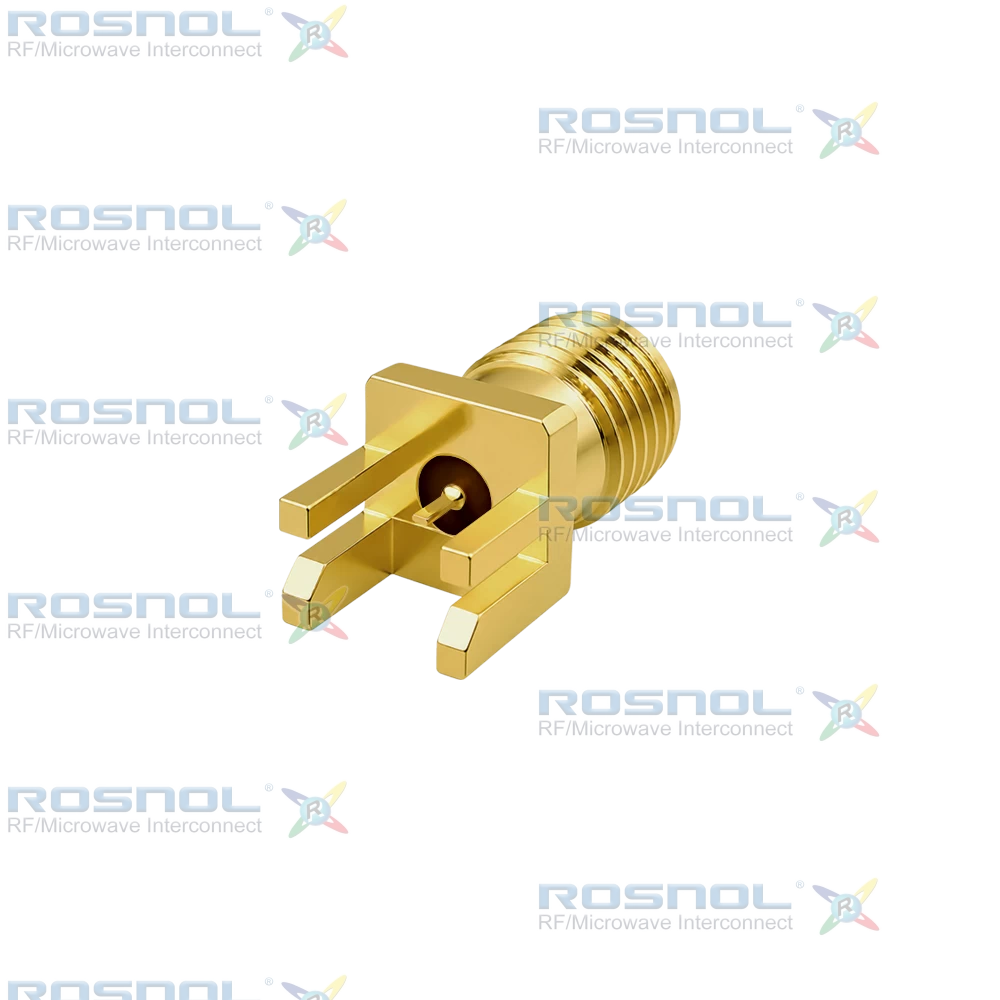

SMA Jack (Female) | PCB End Launch | Screw-lock | Brass Body
The ROSNOL SMA2H3B50-0110A/91 connector is a high-precision SMA Jack (Female) designed for PCB end-launch applications with a straight flat pin and air-space design for enhanced RF performance. It supports DC to 18 GHz frequency range with 50 Ω impedance, VSWR ≤ 1.20 at 6 GHz and ≤ 1.30 at 18 GHz, and insertion loss ≤ 0.03 × √F (GHz) dB. Electrical ratings include insulation resistance ≥ 5 GΩ, center contact resistance ≤ 3.0 mΩ, and outer contact resistance ≤ 2.0 mΩ. It handles up to 200 W at 2 GHz and 100 W at 10 GHz, with RF leakage ≤ 100 dB up to 1 GHz.Material construction includes a beryllium copper center contact with 3 µinch gold plating over 80 µinch non-magnetic nickel-phosphorus underplating. The body is brass with gold plating, and the insulator is PTFE for excellent dielectric stability. Mechanical specifications include screw-lock coupling, ≥ 500 mating cycles, axial captivation ≥ 20 N, radial captivation ≥ 1 Ncm, and torque ratings of 0.8–1.1 Nm recommended (1.7 Nm max).
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All ROSNOL RF components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring environmental safety and global standards. Customization services for plating, materials, and mechanical design are available upon request.
