Key Specifications
Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.40
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
Bulkhead
Body Material:
Brass
Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End
Description
SMA PCB Connector | End Launch for Bulkhead | Brass Body

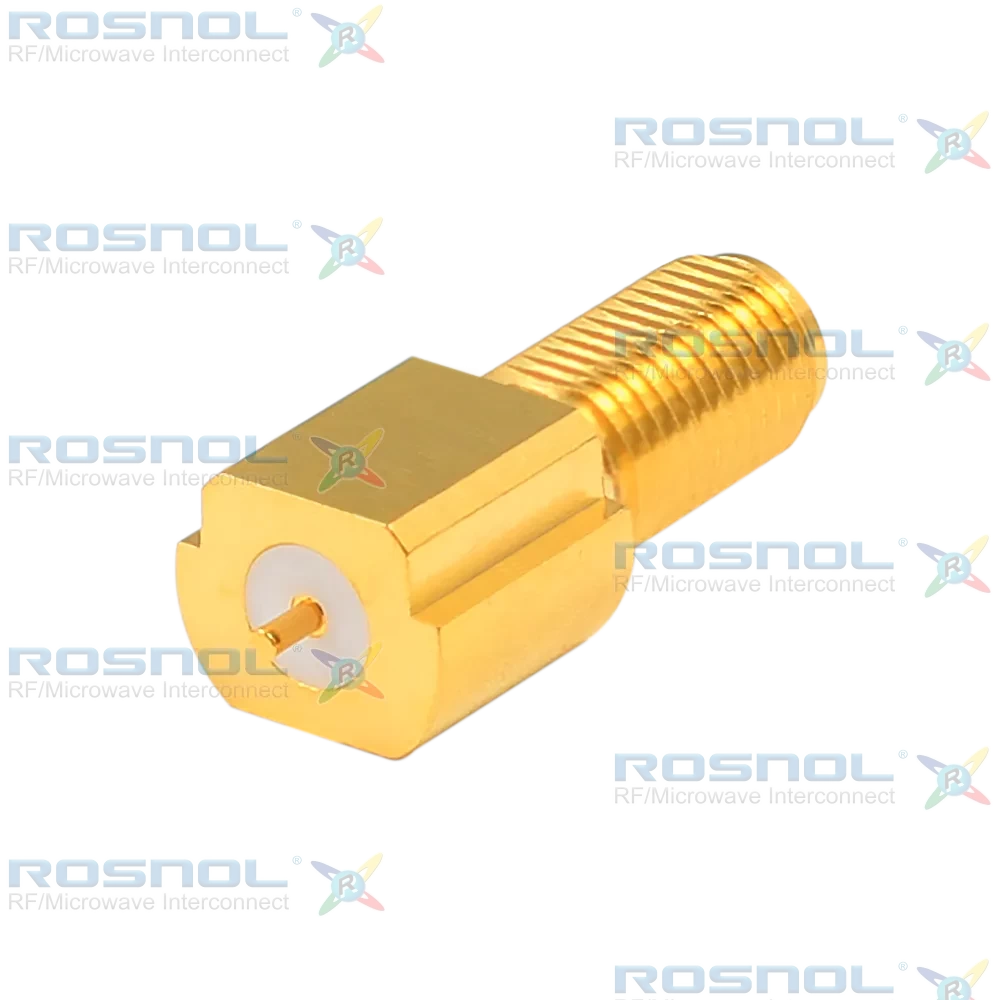

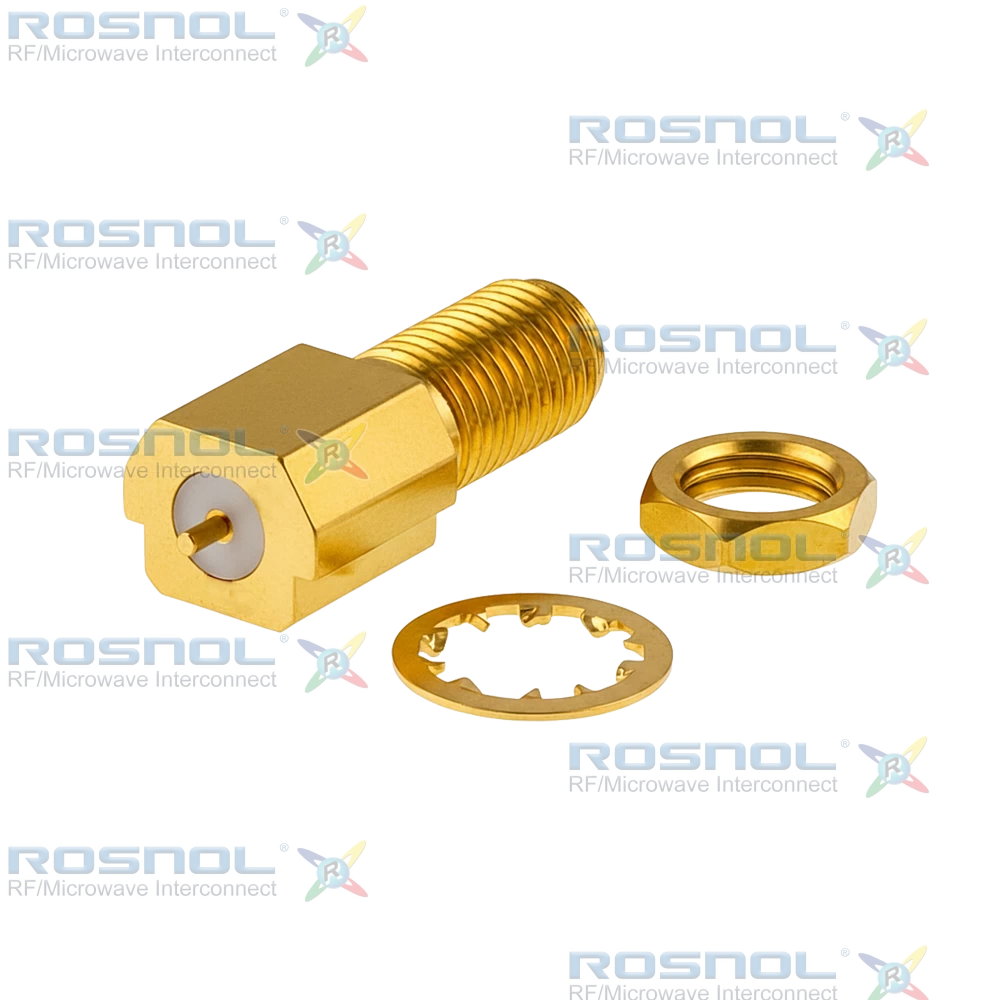

The ROSNOL SMA2JA50-2210A/91 connector is a precision-engineered SMA Jack (Female) designed for edge-mount PCB applications with solder attachment and stud terminal configuration for bulkhead integration. It operates from DC to 18 GHz with a 50 Ω impedance, delivering VSWR ≤ 1.40 and insertion loss ≤ 0.05 × √F (GHz) dB. Electrical performance includes insulation resistance ≥ 5 GΩ, center contact resistance ≤ 3 mΩ, and outer contact resistance ≤ 2 mΩ. Rated for 1000 V rms test voltage and 480 V rms working voltage, this connector supports power handling up to 200 W at 2 GHz and 100 W at 10 GHz, with RF leakage ≥ 100 dB up to 1 GHz.Constructed from premium materials, the center contact is beryllium copper with 3 µinch gold plating over 80 µinch non-magnetic nickel-phosphorus underplating. The body, washer, and fastening nut are brass with gold plating, and the insulator is PTFE for excellent dielectric stability. Mechanical features include screw-lock coupling, edge-mount design, ≥ 500 mating cycles, axial captivation ≥ 20 N, and torque ratings of 0.57 Nm recommended (0.6 Nm max). The connector meets IP68 moisture resistance and withstands soldering temperatures up to +260°C for 10 seconds.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All ROSNOL RF components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring environmental safety and global standards. Customization services for plating, materials, and mechanical design are available upon request.
