Key Specifications
Type Design:
Standard
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
27
Connector Style:
PCB Connector
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
None
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End
Description
SMA Jack (Female) | Compression Mount | Screw-lock | Stainless Steel Body

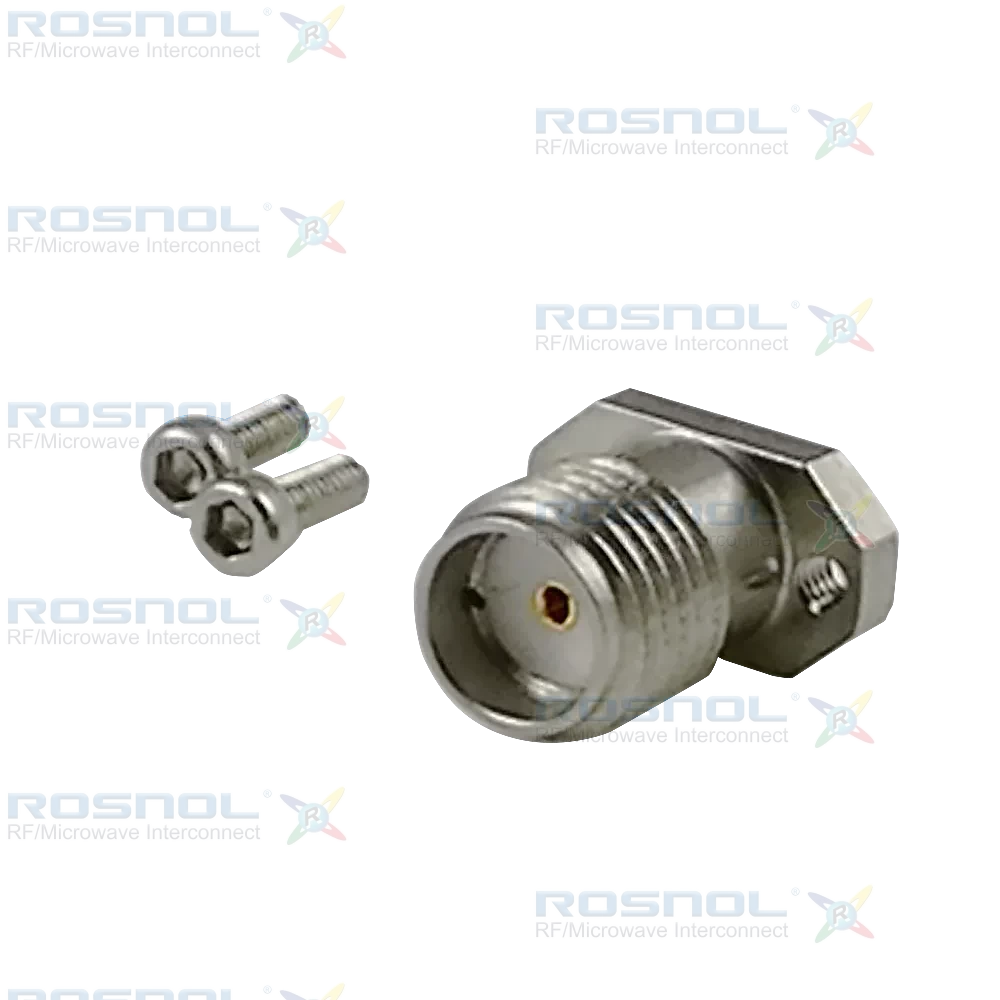

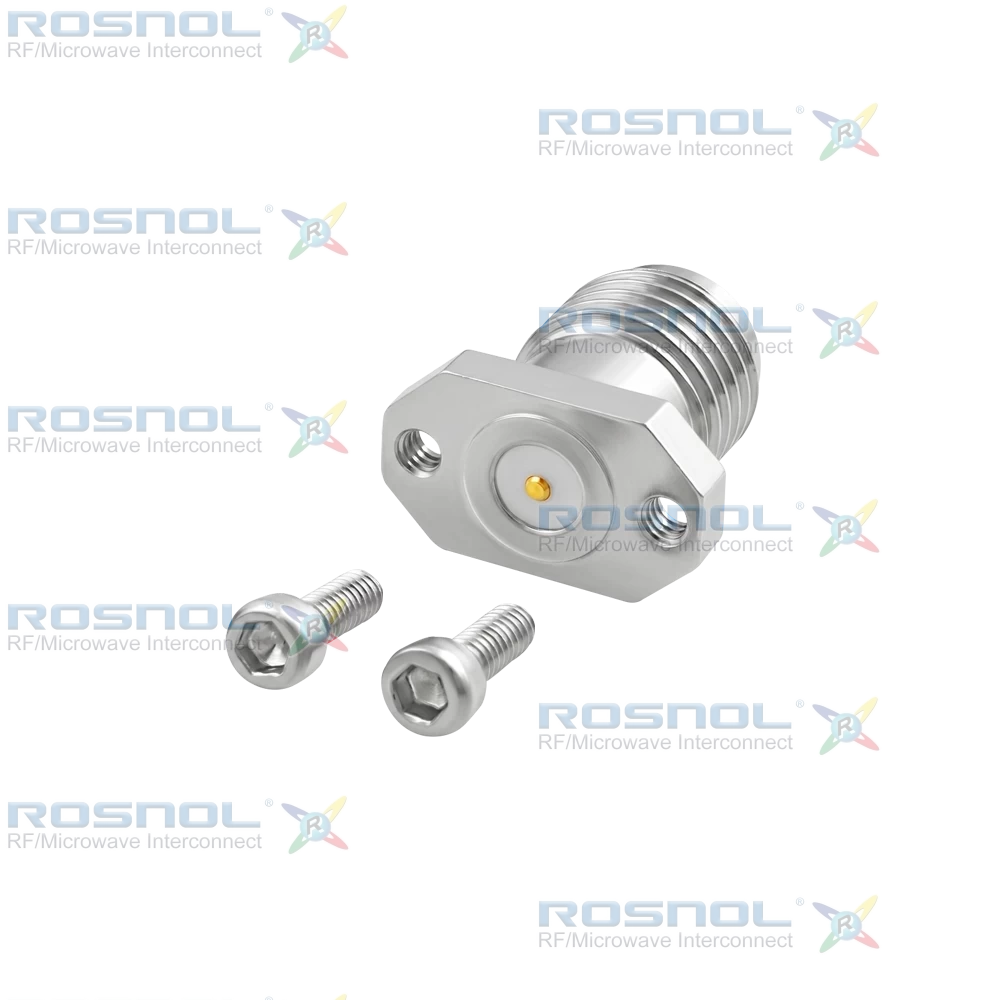

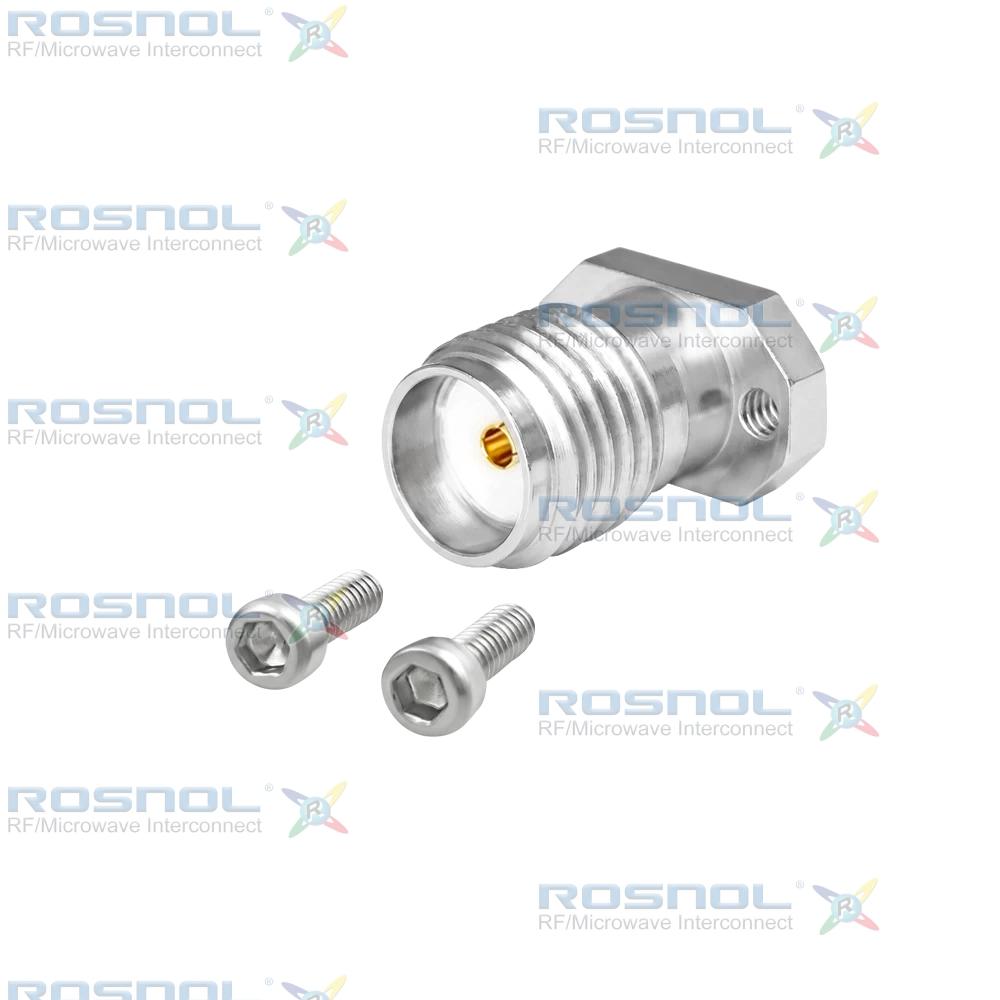

The ROSNOL SMA2LA50-0963A/9X connector is a high-precision SMA Jack (Female) designed for compression mount applications in stripline transmission systems. It supports DC to 27 GHz frequency range with 50 Ω impedance, ensuring stable signal integrity for high-speed PCB layouts. Electrical ratings include insulation resistance ≥ 5 GΩ and robust performance under demanding RF conditions.Material construction includes a beryllium copper center contact with gold plating over nickel underplating for superior conductivity and durability. The body is stainless steel with passivated finish, and the insulator is PTFE for excellent dielectric stability. Mechanical specifications include screw-lock coupling, lightweight design (0.0021 kg), and compatibility with stripline mounting patterns.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All ROSNOL RF components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring environmental safety and global standards. Customization services for plating, materials, and mechanical design are available upon request.
