Key Specifications
Type Design:
Precision
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
50
Connector Style:
PCB Connector
Connector Series:
2.4mm
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
None
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End
Description

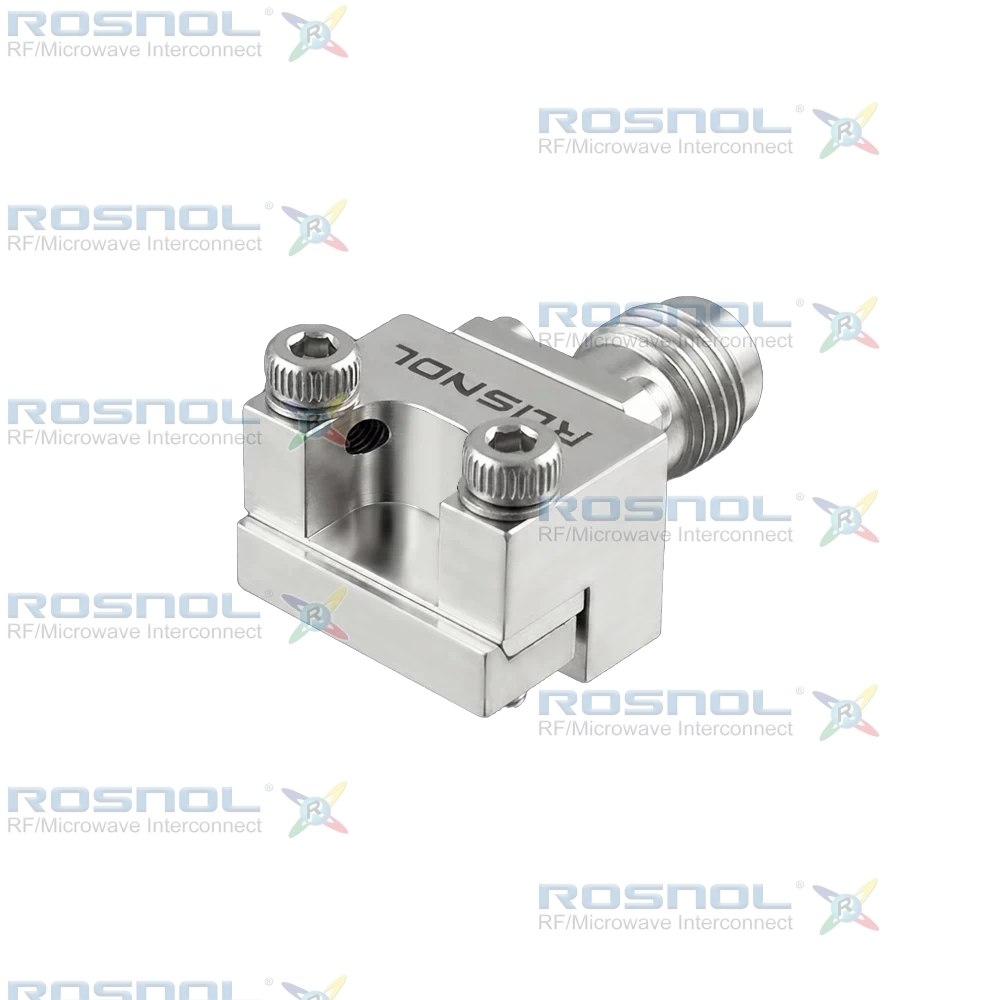

2.4mm Jack (Female) | PCB End Launch | Screw-lock | Stainless Steel Body
The ROSNOL Q2HA50-2021D/9X connector is a high-precision 2.4mm Jack (Female) designed for PCB end-launch applications requiring superior RF performance. It supports DC to 50 GHz frequency range with 50 Ω impedance and insertion loss ≤ 0.05 × √F (GHz) dB. Electrical ratings include insulation resistance ≥ 5 GΩ, test voltage 500 V rms, and RF leakage ≥ 100 dB up to 1 GHz. Mechanical features include screw-lock coupling, end-launch mounting, and compatibility with compact PCB designs for high-speed signal integrity.Material construction includes a beryllium copper center contact and launch pin with gold plating over nickel underplating. The connector body and coupling nut are stainless steel with passivated finish, while the transition block is brass with copper-tin-zinc alloy plating. Insulators are PEI and PTFE for enhanced dielectric stability.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All ROSNOL RF components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring environmental safety and global standards. Customization services for plating, materials, and mechanical design are available upon request.
