Key Specifications
Type Design:
Precision
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
50
Connector Style:
PCB Connector
Connector Series:
2.4mm
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
None
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End
Description

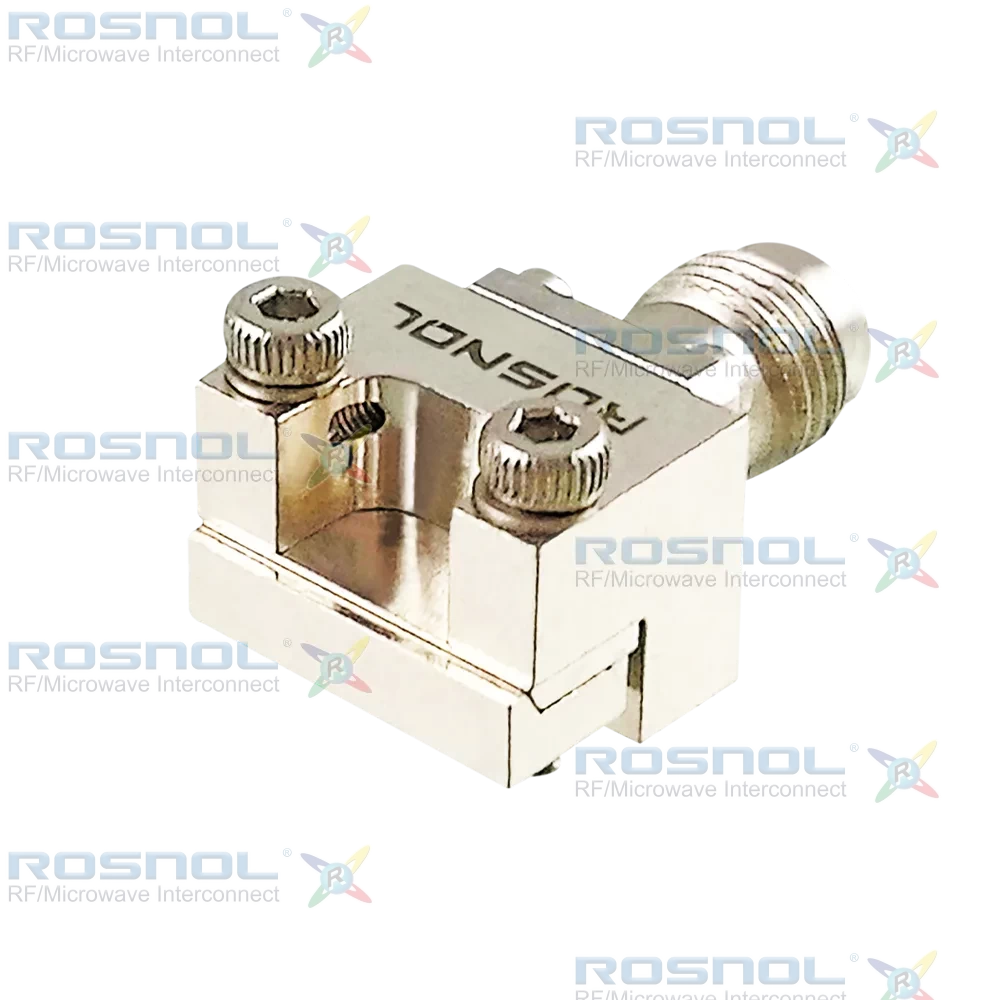

2.4mm Jack (Female) | PCB End Launch | Screw-lock | Stainless Steel Body
The ROSNOL Q2HA50-2021C/9X connector is a precision-engineered 2.4mm Jack (Female) designed for PCB end-launch applications in high-frequency systems. It operates from DC to 50 GHz with a 50 Ω impedance, delivering exceptional electrical performance with insertion loss ≤ 0.05 × √F (GHz) dB. Rated for -55°C to +135°C operating temperature, this connector ensures reliability under demanding conditions. Mechanical features include screw-lock coupling, robust end-launch mounting, and compatibility with high-speed PCB layouts.Constructed from premium materials, the center contact and launch pin are beryllium copper with gold plating over nickel underplating for superior conductivity and durability. The body and coupling nut are stainless steel with passivated finish, while the transition block is brass with copper-tin-zinc alloy plating. Insulators are PEI and PTFE for excellent dielectric stability.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All ROSNOL RF components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring environmental safety and global standards. Customization services for plating, materials, and mechanical design are available upon request.
