Key Specifications
Type Design:
Precision
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
6.0
VSWR, Max:
1.35
Connector Style:
PCB Connector
Connector Series:
2.4mm
Connector Gender:
Jack (Female)
Connection Method:
Snap-On
Center Contact:
Soldered
Mount Method:
None
Body Material:
Beryllium Copper
Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End
Description

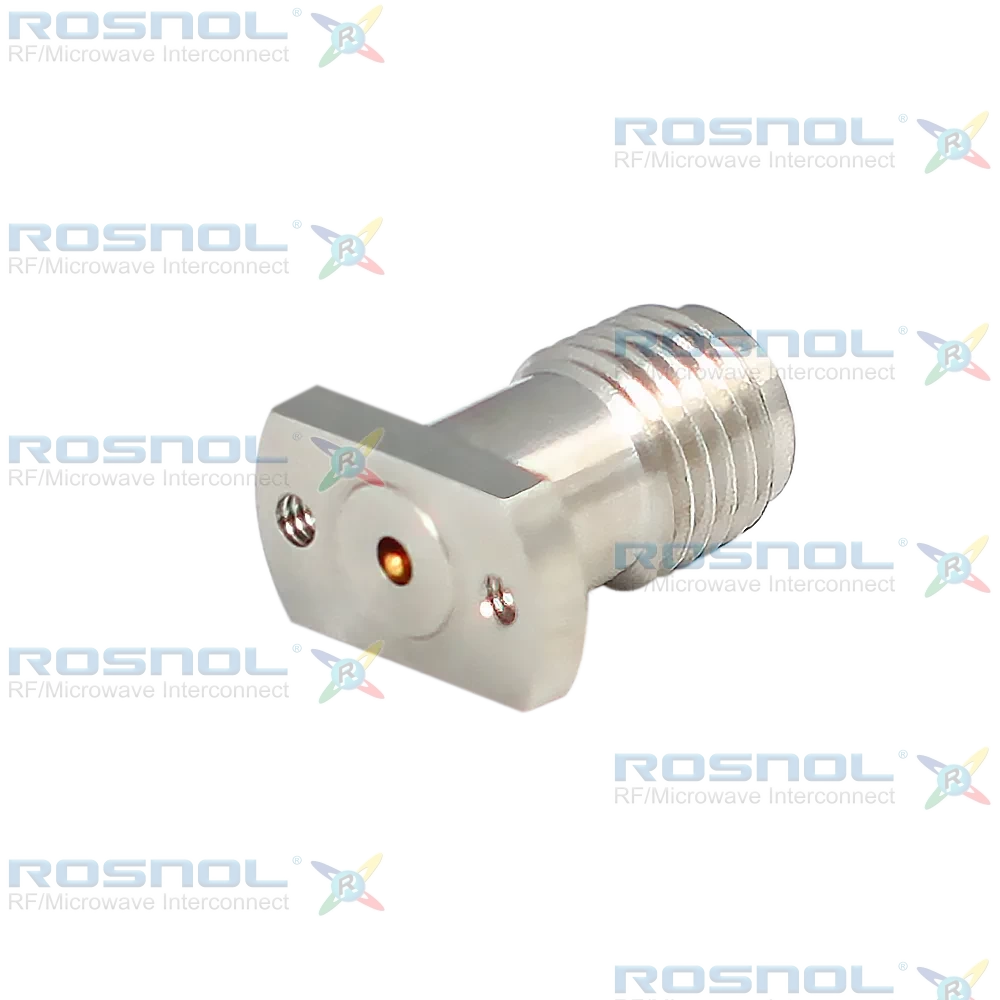

2.92mm Jack (Female) | Edge Mount PCB | Snap-on | Stainless Steel Body
The ROSNOL Q2LA50-1092A-0794/9X connector is a precision-engineered 2.92mm Jack (Female) designed for edge-mount PCB applications with a full detent snap-on coupling mechanism. It operates from DC to 18 GHz with a 50 Ω impedance, delivering VSWR ≤ 1.25 up to 6 GHz and ≤ 1.35 from 6 to 18 GHz, ensuring excellent return loss performance. Insertion loss is ≤ 0.1 × √F (GHz) dB, while insulation resistance is ≥ 5 GΩ. Electrical ratings include center contact resistance ≤ 6.0 mΩ, outer contact resistance ≤ 2.0 mΩ, test voltage 500 V rms, and working voltage 335 V rms.Constructed from premium materials, the center contact is beryllium copper with 3 µinch gold plating over 80 µinch non-magnetic nickel-phosphorus underplating. The body is stainless steel with passivated finish, and the insulator is PTFE for superior dielectric stability. Mechanical specifications include snap-on coupling, full detent engagement force up to 68 N, disengagement force ≥ 22 N, and center contact captivation ≥ 7 N. The connector supports ≥ 100 mating cycles and withstands soldering temperatures up to +260°C for 10 seconds.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All ROSNOL RF components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring environmental safety and global standards. Customization services for plating, materials, and mechanical design are available upon request.
