Key Specifications
Type Design:
Standard
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
11
VSWR, Max:
1.13
Connector Style:
Panel Connector
Connector Series:
TNC
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Brass
Body Plating:
Nickel
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End
Description
TNC Jack (Female) | Coaxial End | 4-Hole Flange Mount | Brass Body

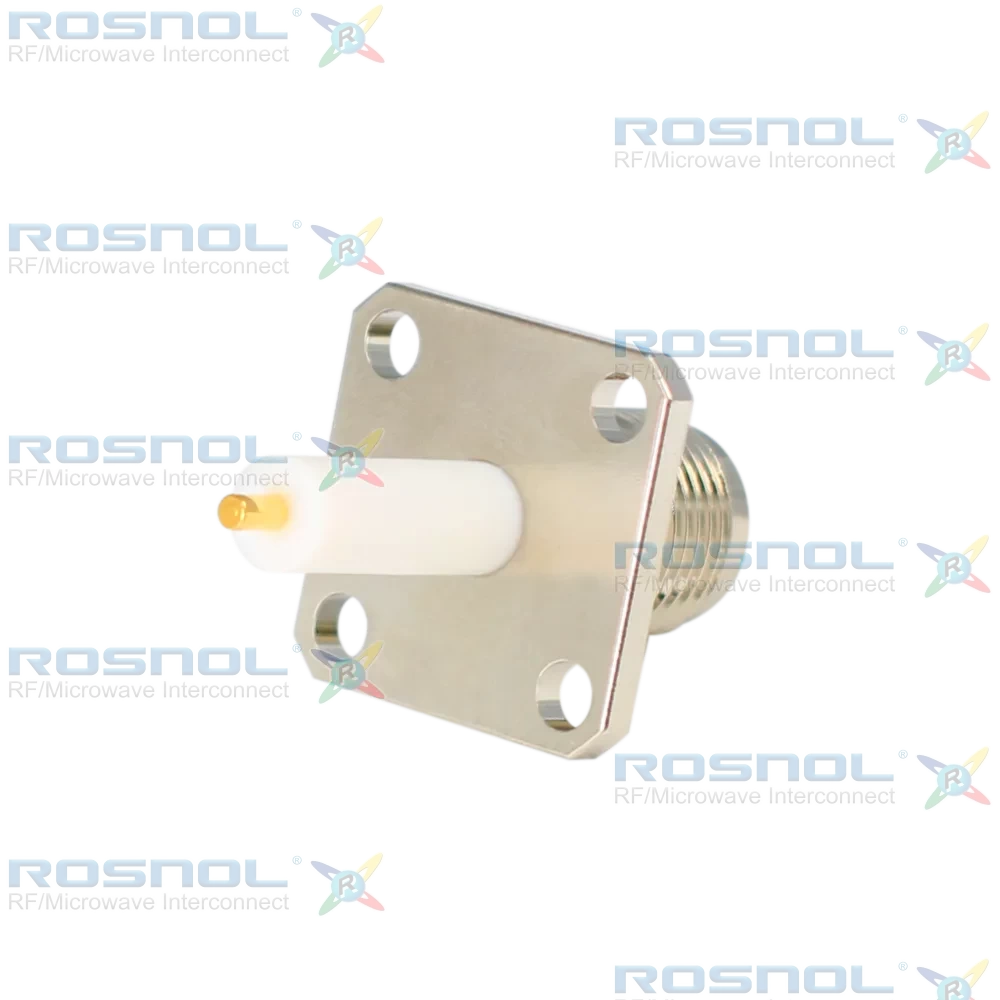

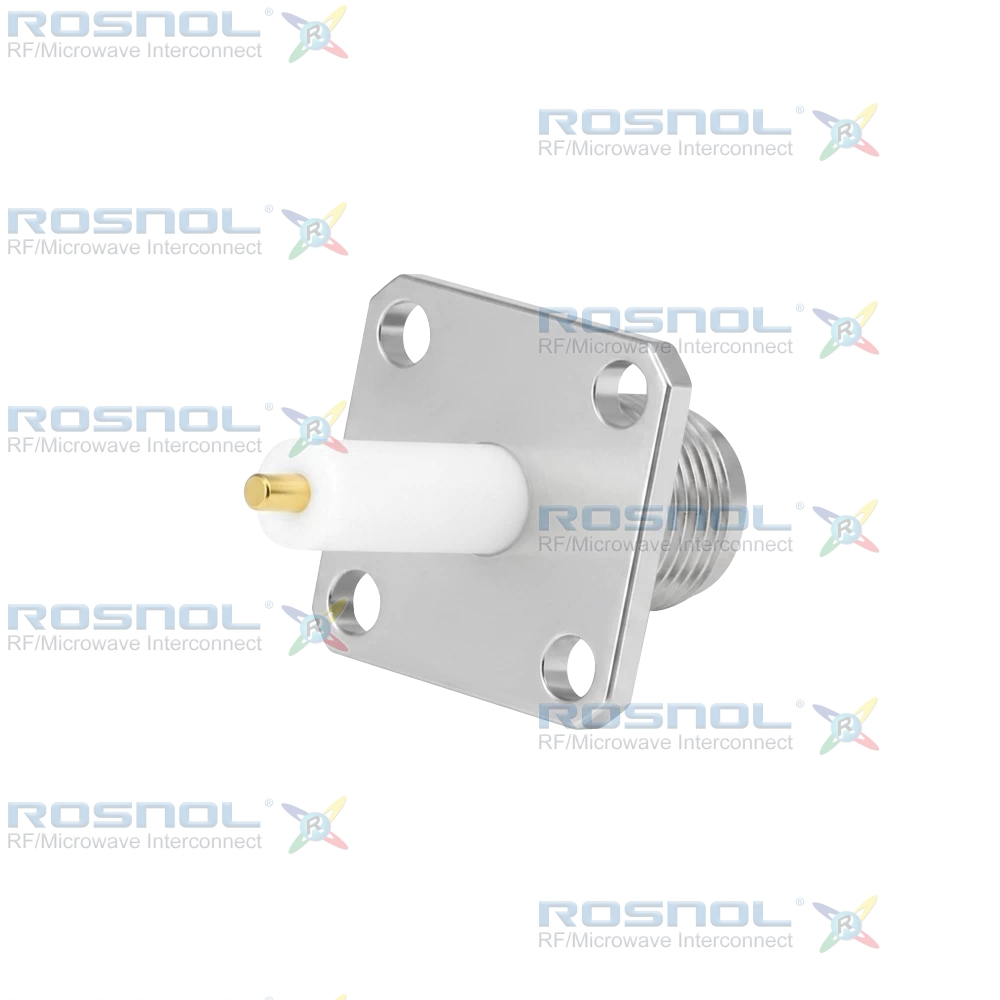

The ROSNOL TNC2GFA50-3170E/93 is a straight panel receptacle jack designed for high-frequency RF and microwave systems. It offers 50 Ω impedance and operates from DC to 11 GHz with VSWR ≤ 1.13, ensuring excellent signal integrity. The screw-lock coupling mechanism provides secure engagement and supports long-term reliability. Key dimensions include an overall length of 32.7 mm \[1.287 in], flange diameter of 24.5 mm \[.965 in], mounting holes of Ø3.2 mm \[.126 in], and hole spacing of 15 mm \[.591 in]. The thread specification is 7/16-28 UNEF, and the connector withstands temperatures from -65°C to +165°C.The center contact is beryllium copper with gold plating over a nickel underplate, while the body is brass with nickel plating for corrosion resistance. The insulator is PTFE, and a silicone rubber gasket ensures environmental sealing. This robust construction guarantees mechanical strength and electrical reliability under demanding conditions.
ROSNOL’s precision-engineered solutions offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All ROSNOL components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring environmental safety and global regulatory alignment. Customization services for materials, plating, and mechanical design are available to support specialized requirements across a wide range of RF and microwave applications.
