Key Specifications
Type Design:
Standard
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Style:
Panel Connector
Connector Series:
SMP
Connector Gender:
Plug (Male)
Connection Method:
Snap-On
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End
Description

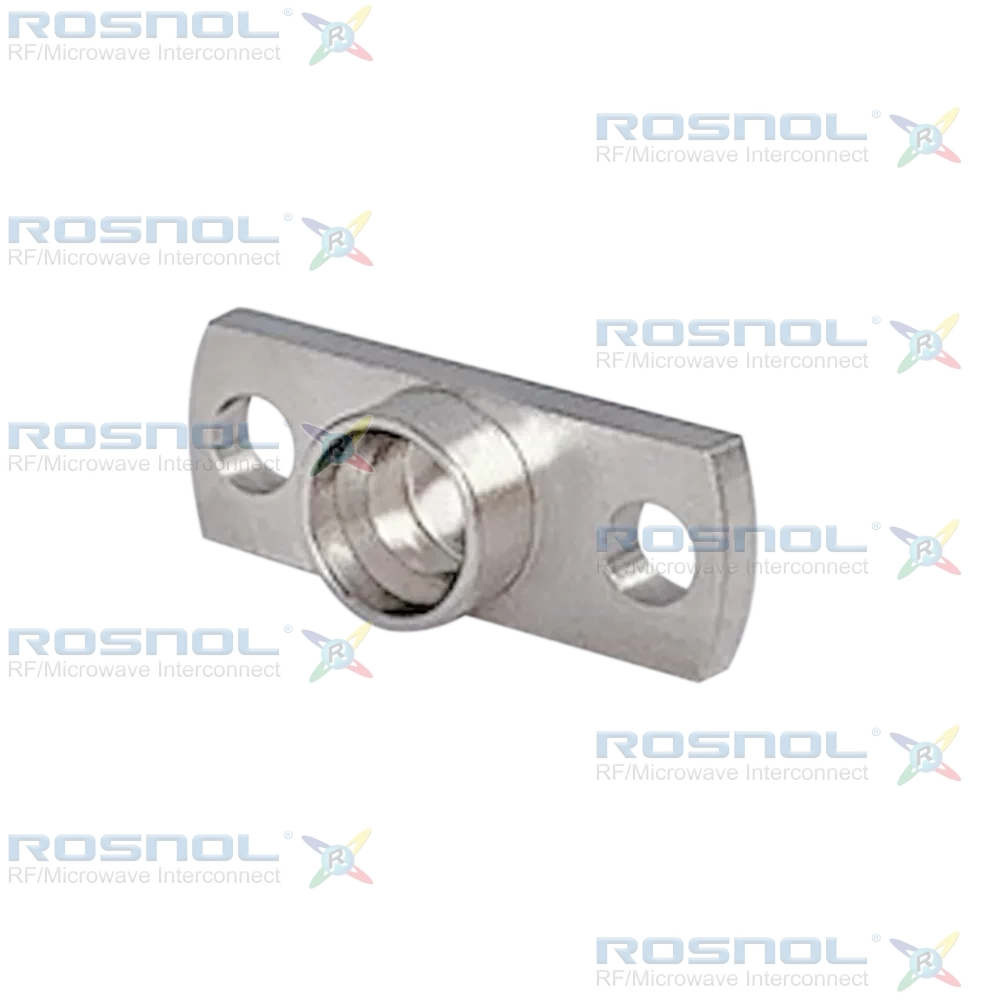

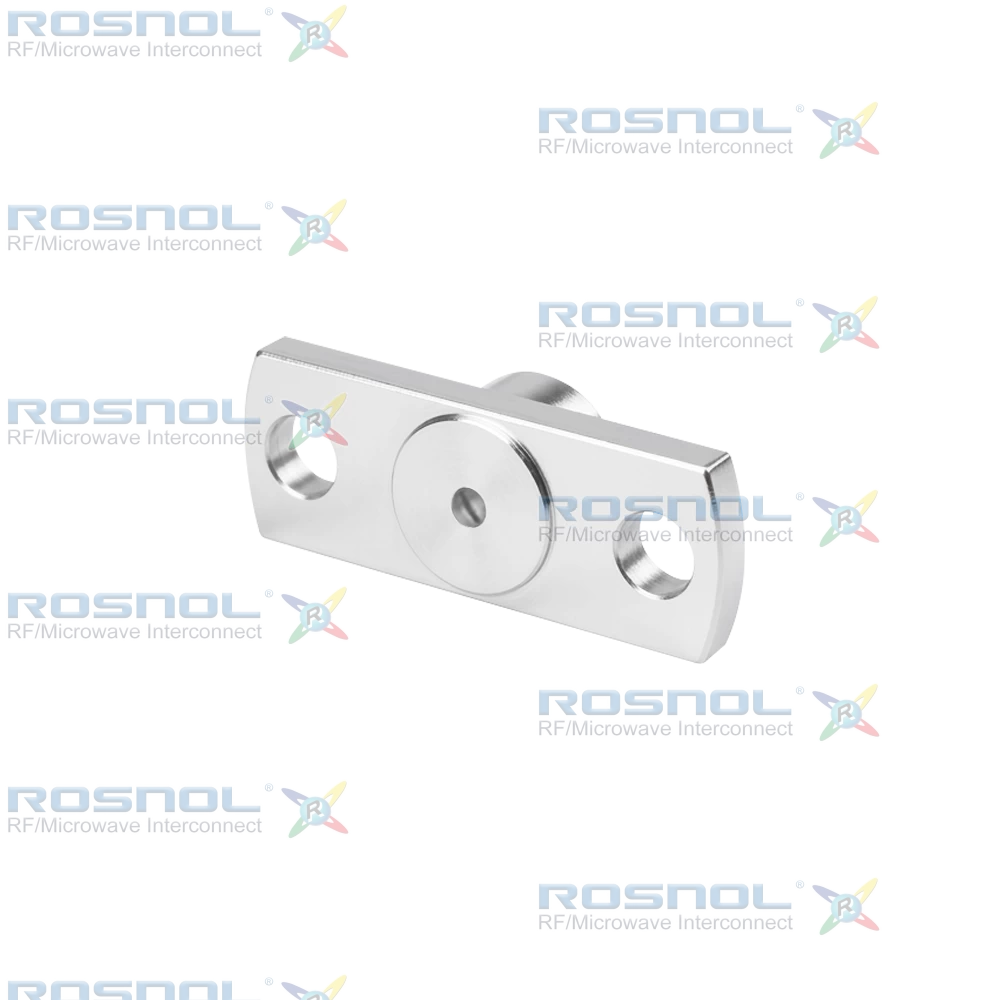

SMP Plug (Male) | Full Detent | 2-Hole Flange Mount | Stainless Steel Body
The ROSNOL SMP1GTA50FD-0305A/-X is a precision-engineered SMP plug connector designed for high-frequency RF and microwave applications. It offers 50 Ω impedance and utilizes a snap-lock coupling mechanism with full detent for secure engagement, supporting ≥100 mating cycles. The connector operates reliably from -65°C to +165°C, ensuring durability under extreme conditions. Key dimensions include an overall body diameter of Ø12.19 mm \[.480 in], mounting holes of Ø3.93 mm \[.155 in], and hole spacing of 8.99 mm \[.354 in]. The flange thickness is 4.47 mm \[.176 in], providing robust mechanical stability for panel integration.Constructed from high-grade stainless steel with a passivated finish, this connector delivers superior corrosion resistance and mechanical strength. The solder attachment stub terminal ensures secure electrical connection for high-frequency performance. All dimensions comply with DIN ISO 2768-mH tolerances, and the design meets MIL-STD-348B/326.2 interface standards for full detent SMP connectors.
ROSNOL’s precision-engineered solutions offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All ROSNOL components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring environmental safety and global regulatory alignment. Customization services for materials, plating, and mechanical design are available to support specialized requirements across a wide range of RF and microwave applications.
