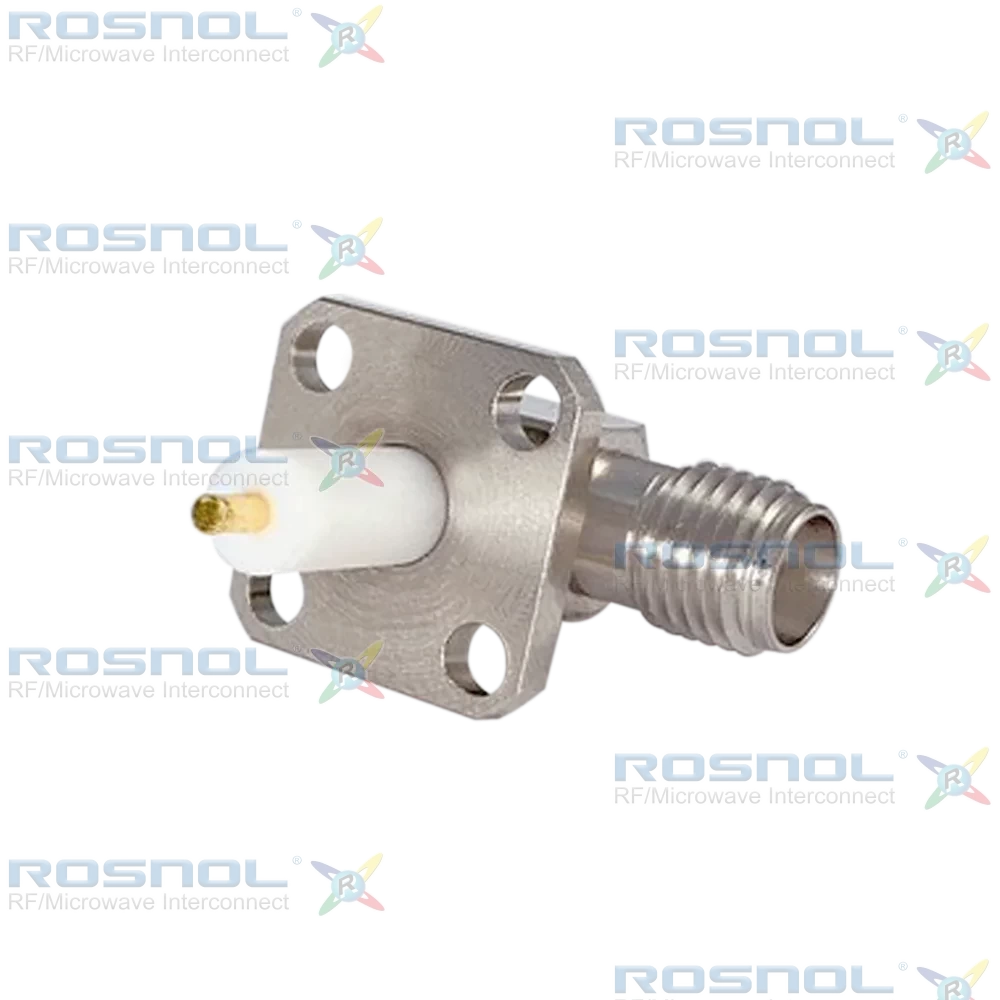

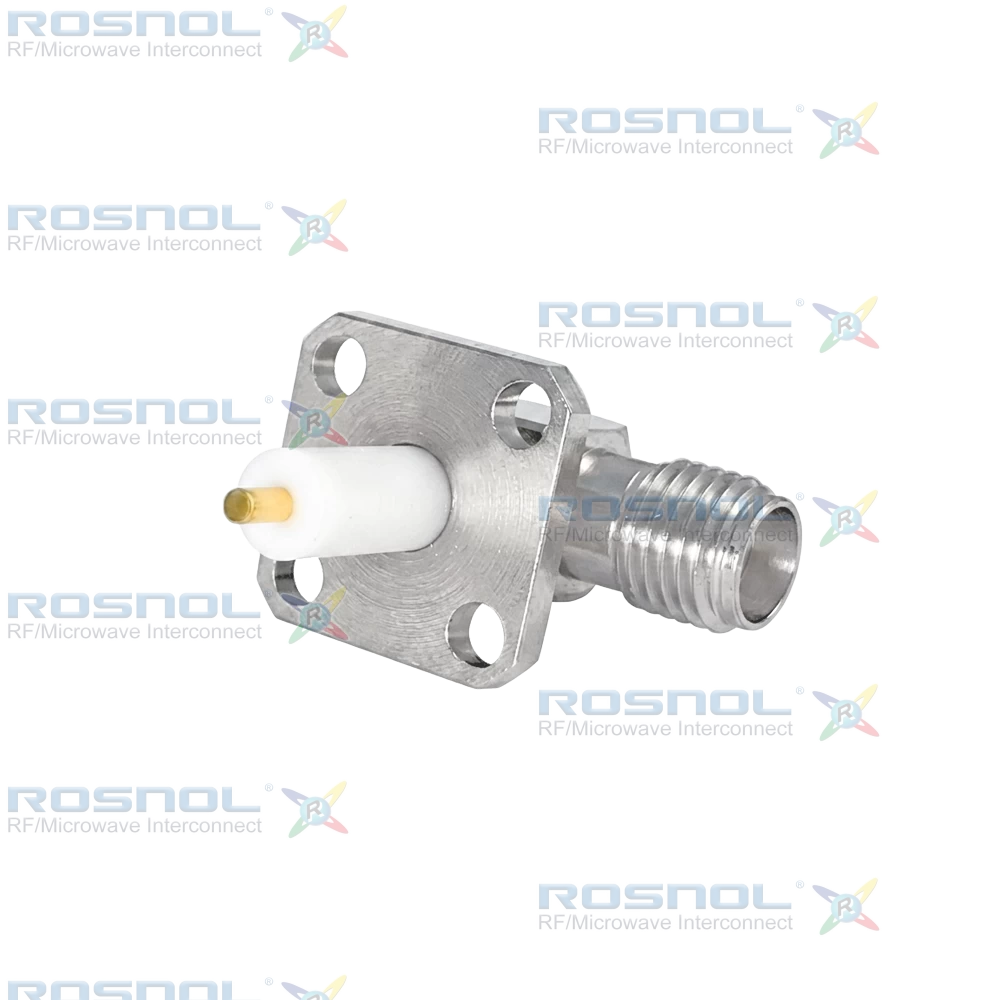

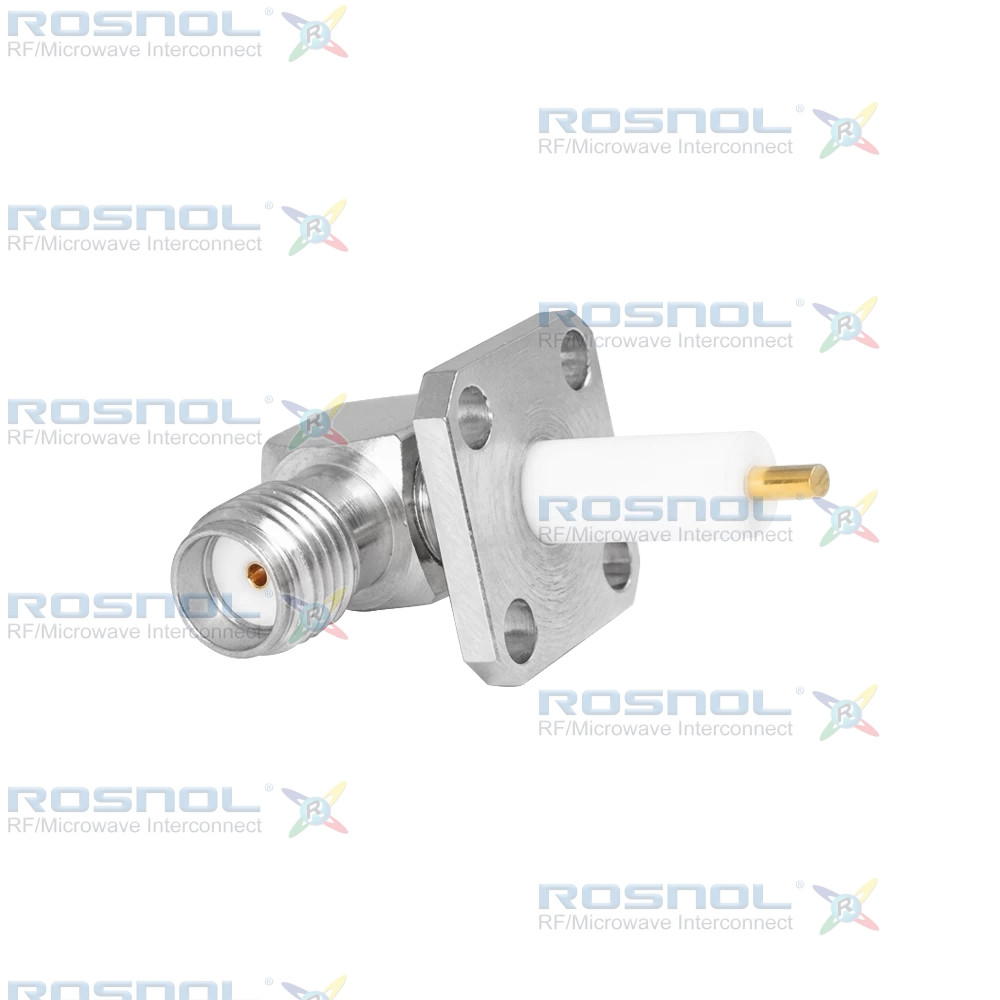

SMA Female RA Connector, 4 Hole Flange, 18 GHz

Order No:SMA2GFA59-2340A/9X
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Right Angle
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Flat End

Description

SMA Female Right Angle Connector, 4 Hole Flange Mount, Stub Terminal, 8.64 mm Hole Spacing, 50 Ω, 18 GHz, VSWR ≤ 1.3.

ROSNOL SMA2GFA59-2340A/9X is an SMA Jack (Female) Right Angle Connector designed for high-frequency RF and microwave applications. Featuring a 4-Hole Flange Mount configuration with 8.64 mm hole spacing, this connector provides secure panel installation and excellent mechanical stability. The connector supports a frequency range from DC to 18 GHz with a characteristic impedance of 50 Ω and a VSWR of ≤ 1.30, helping maintain signal integrity in demanding RF systems. Its solder attachment and stub terminal design make it suitable for integration into communication equipment, microwave modules, and RF test assemblies.

The connector utilizes a beryllium copper center contact with gold plating over a non-magnetic nickel-phosphorus underplate to optimize conductivity and contact reliability. The body is manufactured from stainless steel with a passivated finish, offering excellent resistance to corrosion and environmental exposure. A PTFE insulator provides stable dielectric performance. Mechanical characteristics include screw-lock coupling, a minimum of 500 mating cycles, center contact captivation of ≥27 N axial force, and an operating temperature range of -65°C to +165°C, supporting reliable long-term performance.

This SMA flange-mount connector is well suited for RF communication systems, wireless infrastructure, microwave instrumentation, defense electronics, test and measurement equipment, and antenna interface modules. The compact right-angle structure, controlled VSWR, and durable mechanical design make the ROSNOL SMA2GFA59-2340A/9X an effective solution for applications where secure mounting, signal integrity, and dependable RF connectivity are critical.
