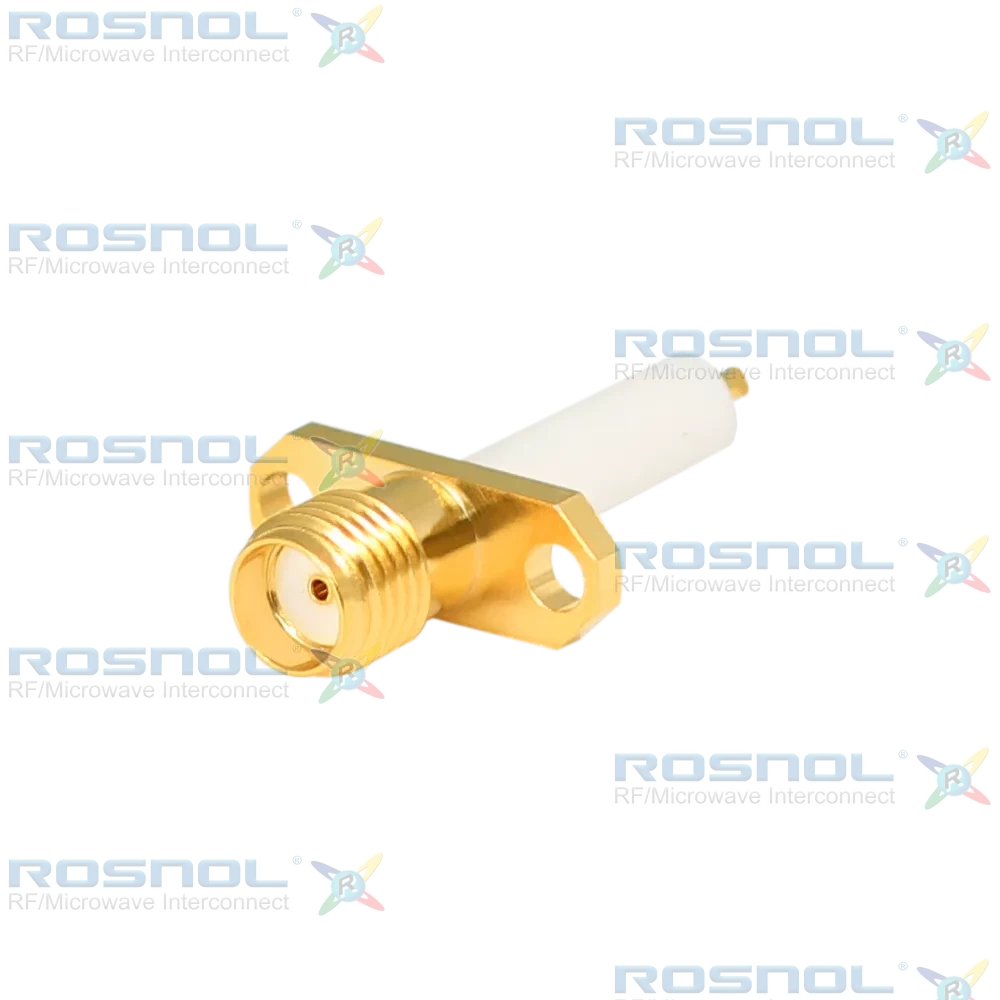

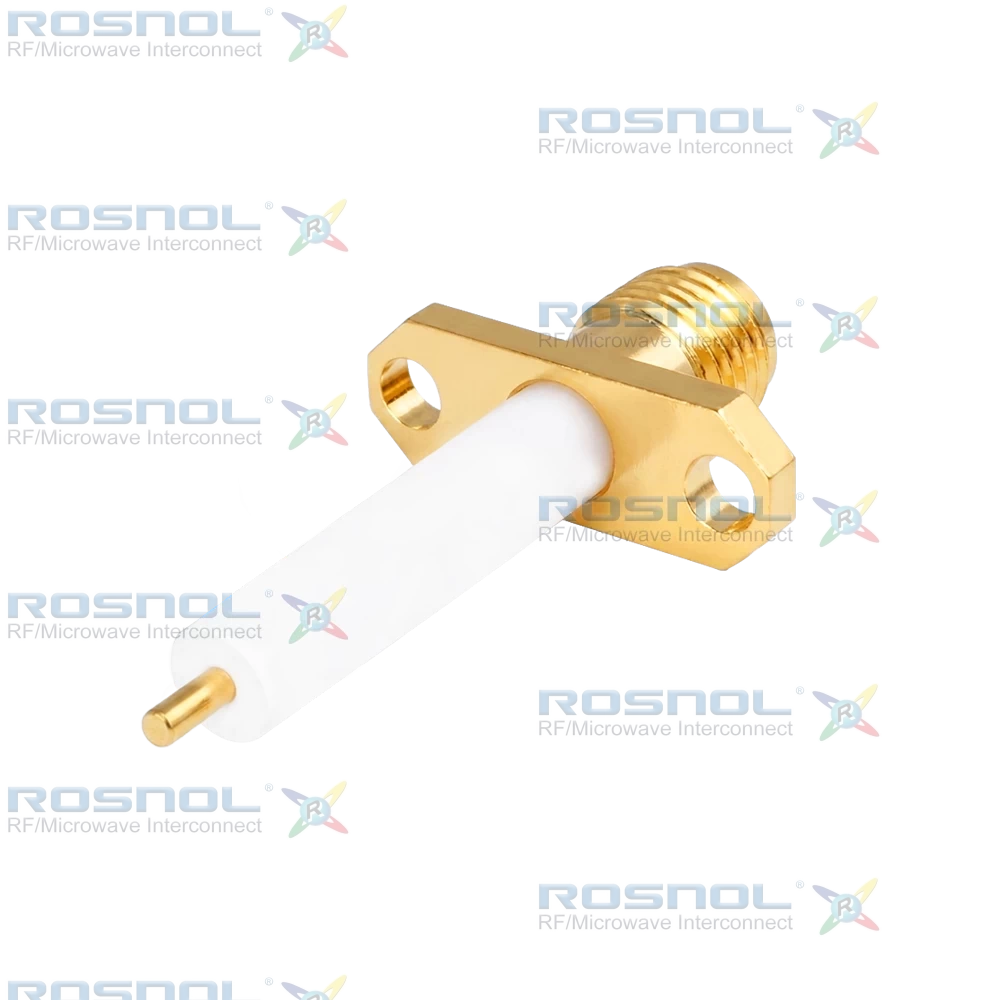

SMA Female Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.
ROSNOL SMA2GTA50-2740A/91 is an SMA Jack (Female) connector developed for RF and microwave systems requiring dependable panel-mounted signal connections. Featuring a solder attachment interface, 2-hole flange mount design, and stub terminal configuration, this 50 Ohm connector incorporates 12.22 mm (0.481 inch) hole spacing for secure installation. The connector operates from DC to 18 GHz with a VSWR of ≤ 1.30 and insertion loss of ≤ 0.05 × √F (GHz) dB. Additional electrical characteristics include insulation resistance of at least 5 GΩ, center contact resistance of ≤ 3 mΩ, and power handling capability up to 200 W at 2 GHz.
The center contact is fabricated from beryllium copper with gold plating over non-magnetic nickel-phosphorus underplating to provide reliable conductivity and long-term durability. The connector body is manufactured from brass with gold plating and matching underplating, while the PTFE insulator delivers excellent dielectric stability. Mechanical features include a screw-lock coupling mechanism, soldered center contact, mechanical captivation structure, mating durability of at least 500 cycles, and an operating temperature range from -65°C to +165°C.
This SMA Jack (Female) connector is ideal for RF communication systems, wireless infrastructure, microwave equipment, antenna interfaces, signal distribution equipment, and test and measurement instruments. Its stable electrical performance, durable plated construction, and secure flange-mount design provide a reliable RF connectivity solution for demanding RF and microwave applications.
