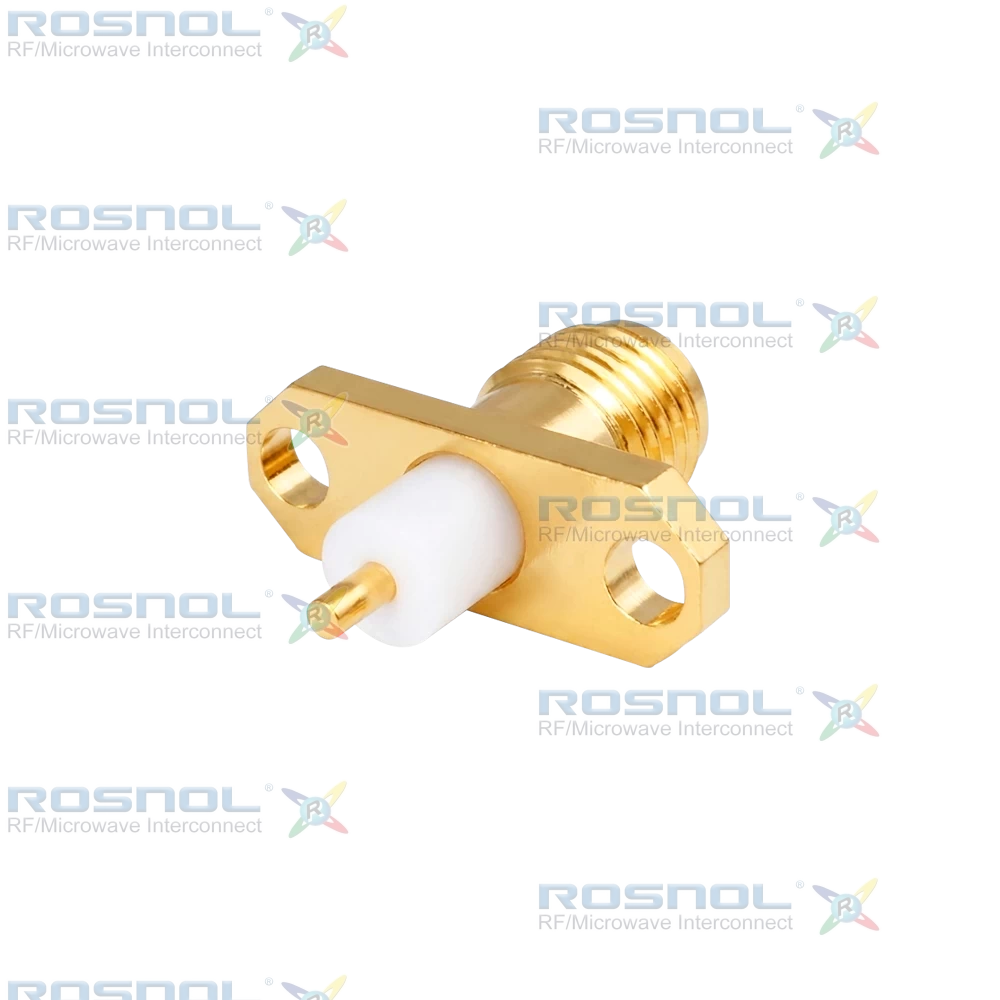

SMA Female Connector, 2 Hole Flange, 18 GHz

Order No:SMA2GTA50-1610A/91
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Brass
Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

SMA Female Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.

ROSNOL SMA2GTA50-1610A/91 is a precision SMA Jack (Female) connector designed for RF and microwave applications requiring secure panel mounting and dependable electrical performance. This 50 Ohm connector features a solder attachment interface, 2-hole flange mount configuration, and stub terminal design with 12.22 mm (0.481 inch) hole spacing. Operating from DC to 18 GHz, it delivers a VSWR of ≤ 1.30 and insertion loss of ≤ 0.05 × √F (GHz) dB, helping maintain signal integrity across a wide frequency range. Additional electrical characteristics include insulation resistance of ≥ 5 GΩ, center contact resistance of ≤ 3 mΩ, and power handling capability up to 200 W at 2 GHz.

The center contact is manufactured from beryllium copper with gold plating over non-magnetic nickel-phosphorus underplating, while the body is constructed from brass with the same plating structure. A PTFE insulator ensures reliable dielectric performance. The connector incorporates a screw-lock coupling mechanism, soldered center contact, and mechanical captivation design to enhance durability and connection stability. With a mating life of at least 500 cycles and an operating temperature range of -65°C to +165°C, it is suitable for demanding RF environments. The 12.22 mm (0.481 inch) flange mounting pattern supports standardized panel installation.

This SMA Jack (Female) RF connector is suitable for RF communication systems, microwave assemblies, wireless infrastructure, antenna equipment, signal distribution modules, and laboratory test instrumentation. Its combination of broad DC-18 GHz frequency coverage, robust mechanical construction, and stable electrical characteristics makes it a dependable solution for professional RF interconnect applications.
