Key Specifications
Type Design:
Standard
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Style:
Panel Connector
Connector Series:
SMA
Connector Gender:
Plug (Male)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Epoxy Captivation
Bankend Type:
Coaxial End
Description

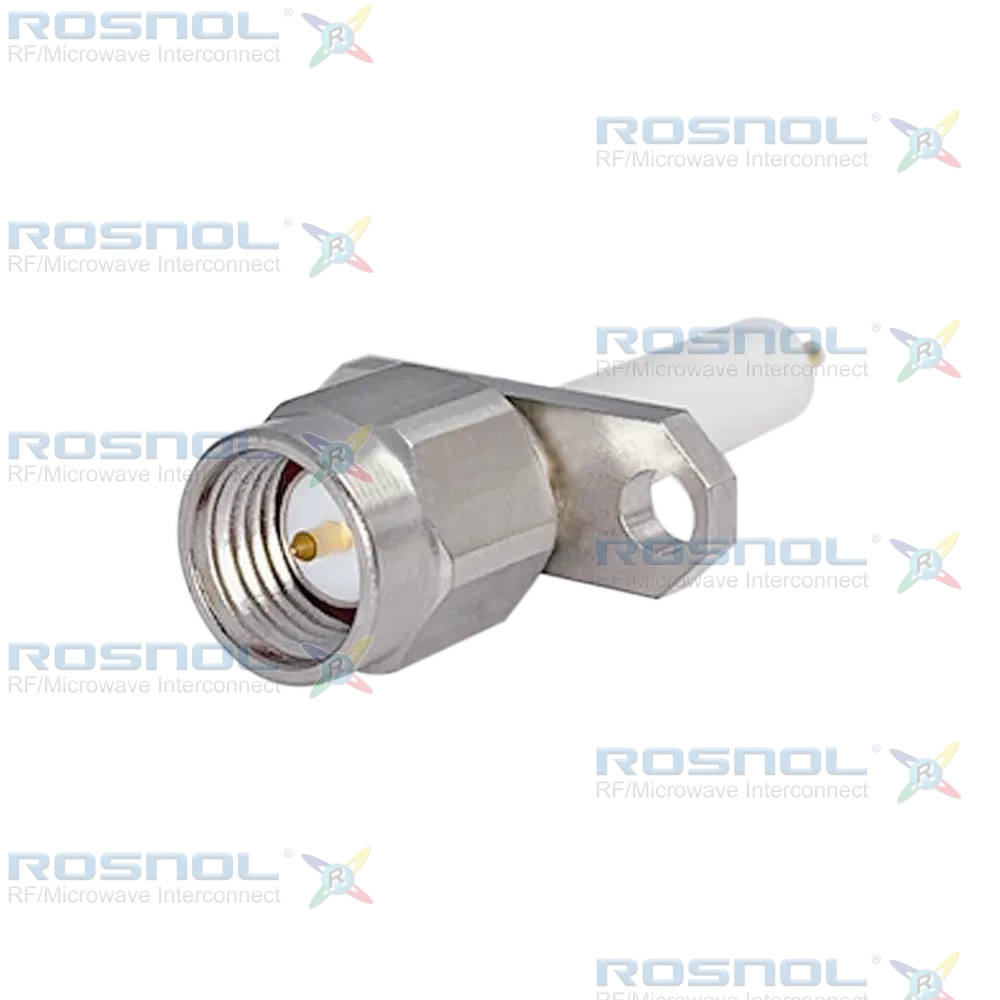

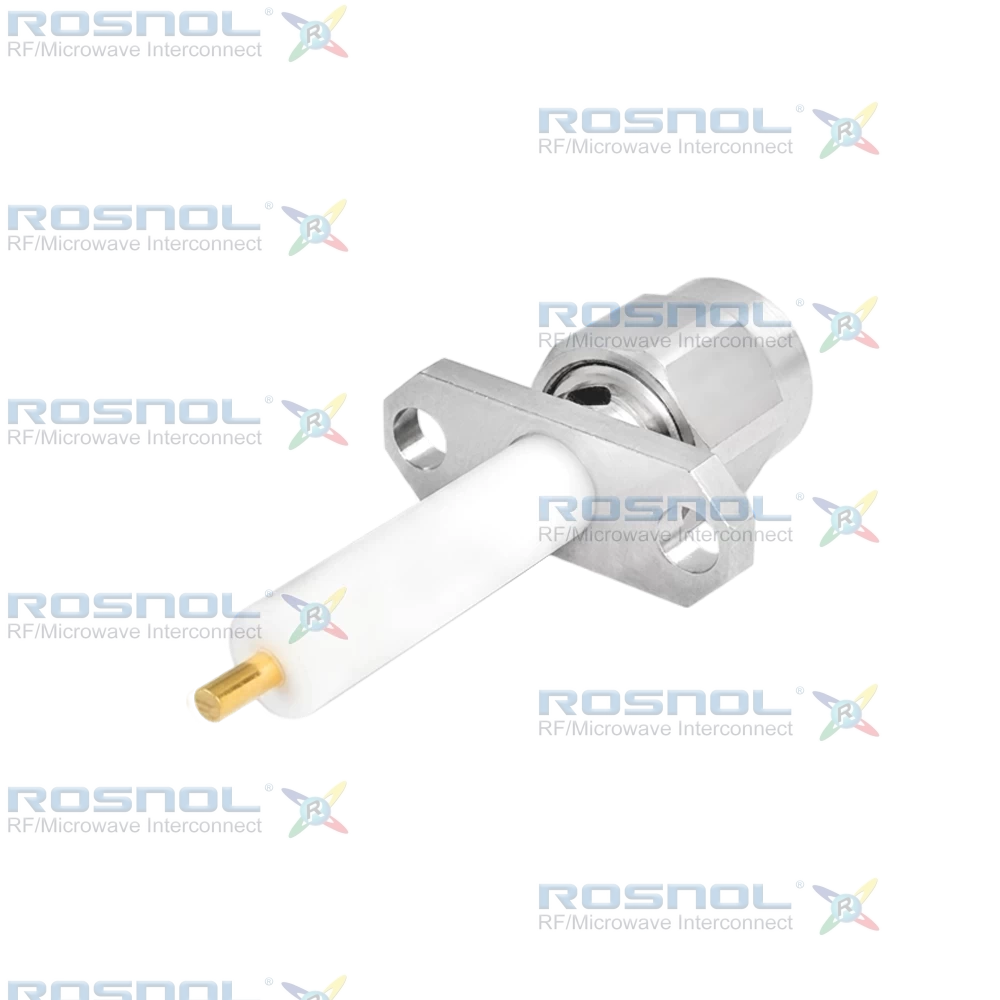

SMA Plug (Male) | High-Performance RF Connector | Solder Attachment | 2-Hole Flange Mount | Stainless Steel Body | Epoxy Captivation
The ROSNOL SMA1GTA50-3050A-EC/1XX offers exceptional RF performance for flange-mounted applications, supporting DC to 18 GHz with 50 Ω impedance, VSWR ≤ 1.30, and insertion loss ≤ 0.05√f (GHz) dB. Electrical specifications include insulation resistance ≥ 5 GΩ, test voltage 1000 V rms, and working voltage 480 V rms. Power handling is rated at 200 W at 2 GHz, making it ideal for precision microwave systems.The connector features a brass center contact with gold plating (3 μinch) over nickel-phosphorus underplating (80 μinch). The body and coupling nut are stainless steel with passivated finish, complemented by PTFE insulation and a silicone rubber gasket for environmental sealing. Epoxy captivation ensures secure assembly, while the design withstands -65°C to +165°C for rugged reliability.
ROSNOL’s precision RF connectors provide a competitive alternative to premium European and American brands. All products are manufactured under ISO 9001-certified processes and comply with RoHS and REACH standards. Customization services for plating, materials, and mechanical design are available upon request.
