Key Specifications
Type Design:
Standard
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
5.0
VSWR, Max:
1.10
Connector Style:
Panel Connector
Connector Series:
N
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Brass
Body Plating:
Silver
Captivated Type:
Mechanical Captivation
Bankend Type:
Special End
Description

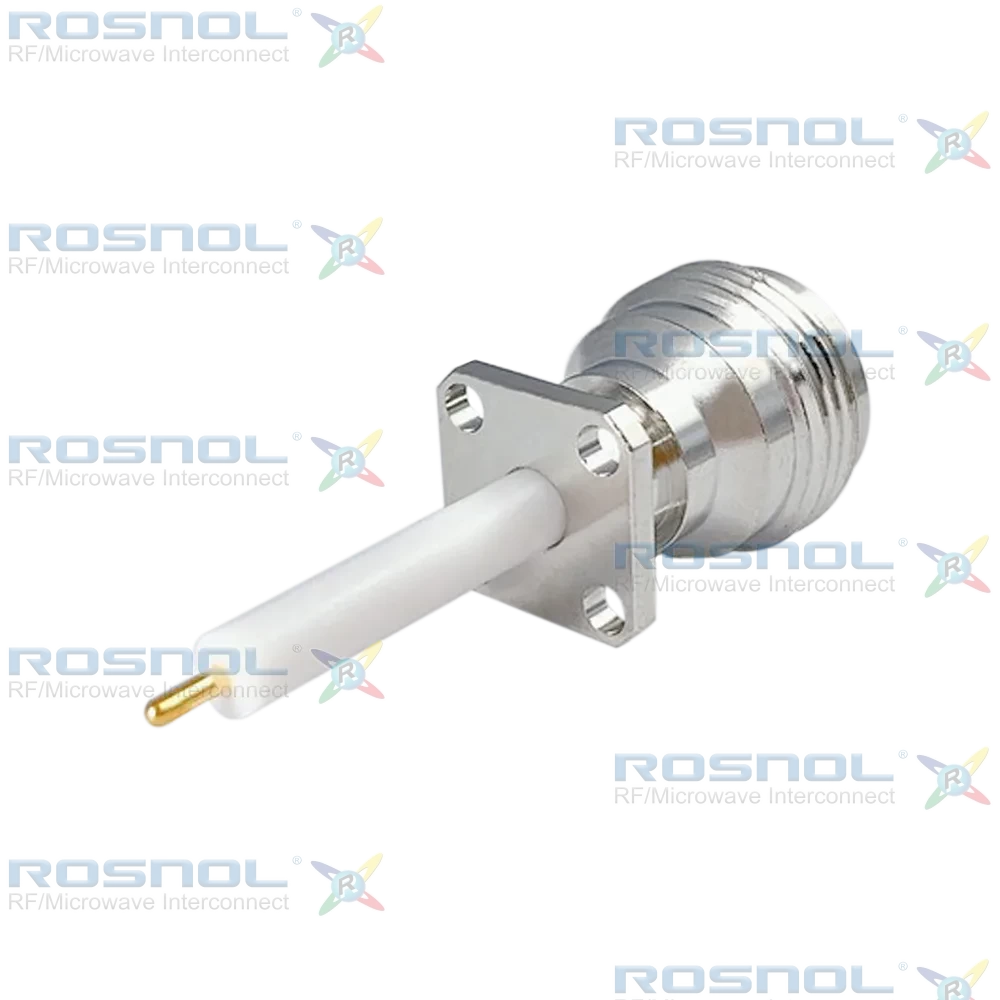

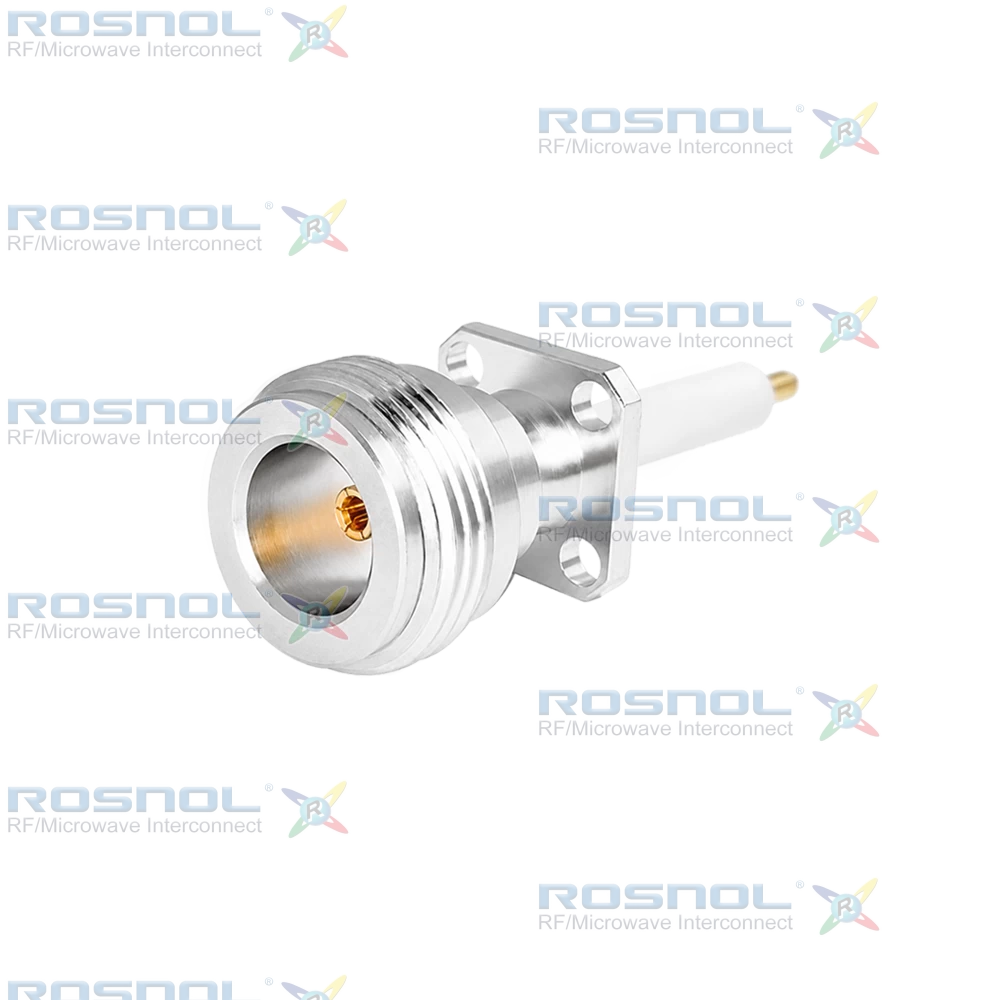

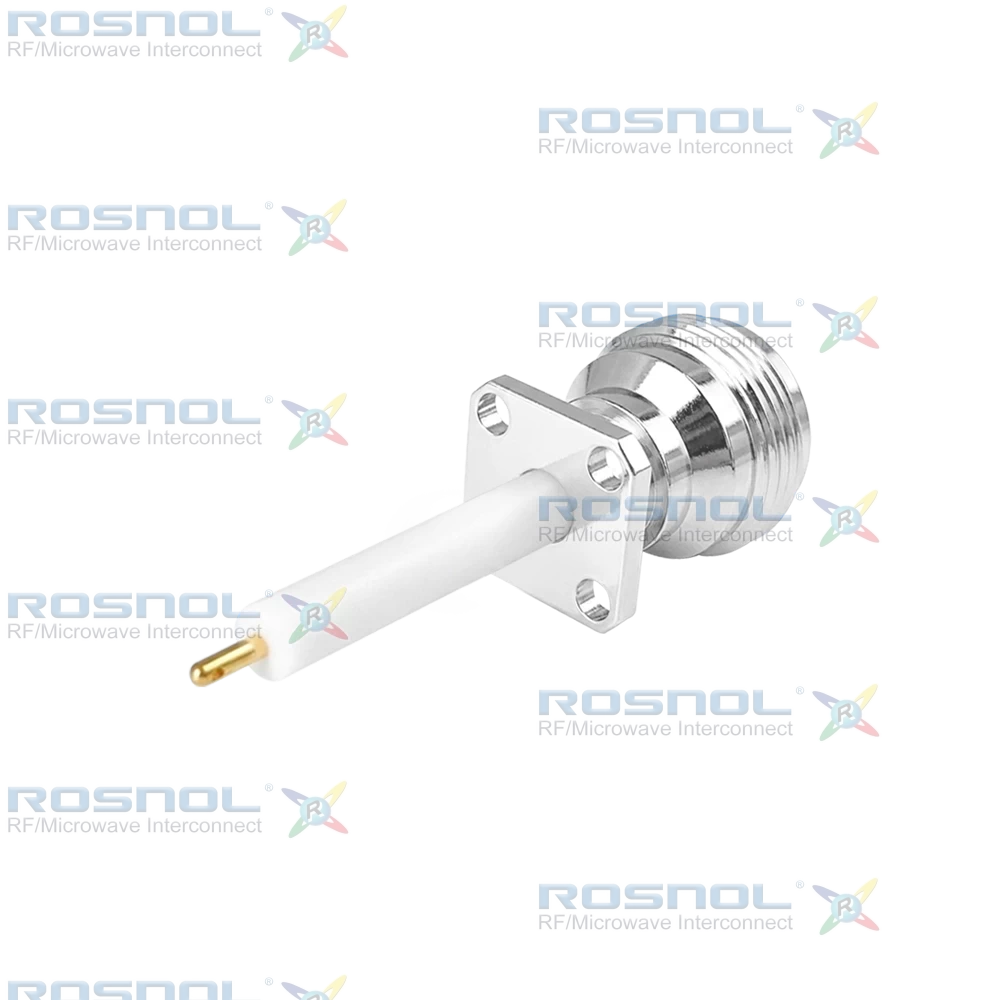

N Jack (Female) | Solder Attachment | 4-Hole Flange Mount | Silver-Plated Brass Body
The ROSNOL N2GFE50-4364B/90-LP is a high-performance panel connector designed for RF and microwave applications requiring secure solder attachment and flange mounting. It operates from DC to 5 GHz with 50 Ω impedance, VSWR ≤ 1.10, and insertion loss ≤ 0.05√f (GHz) dB. Electrical specifications include RF leakage ≥ -90 dB, insulation resistance ≥ 5000 MΩ, and PIM level ≥ -150 dBc. Power handling is rated at 250 W average (400 W peak) from 1.3–2.3 GHz and 150 W average (200 W peak) from 4.4–5 GHz. Mechanical integrity is ensured with screw-lock coupling, ≥ 500 mating cycles, and captivated solder cup terminal for enhanced durability.The center contact is beryllium copper with gold plating (≥100 microinches per MIL-G-45204), while the body is brass with silver plating. PTFE insulators provide superior dielectric properties, and the connector withstands environmental conditions from -40°C to +85°C.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All ROSNOL RF components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring environmental safety and global standards. Customization services for plating, materials, and mechanical design are available upon request.
