N Female RA Connector, 4 Hole Flange, DC-5GHz

Order No:N2GFE59-4547B/90-LP
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Right Angle
Frequency, Max (GHz):
5.0
VSWR, Max:
1.12
Connector Series:
N
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Brass
Body Plating:
Silver
Captivated Type:
Mechanical Captivation
Bankend Type:
Special End

Description

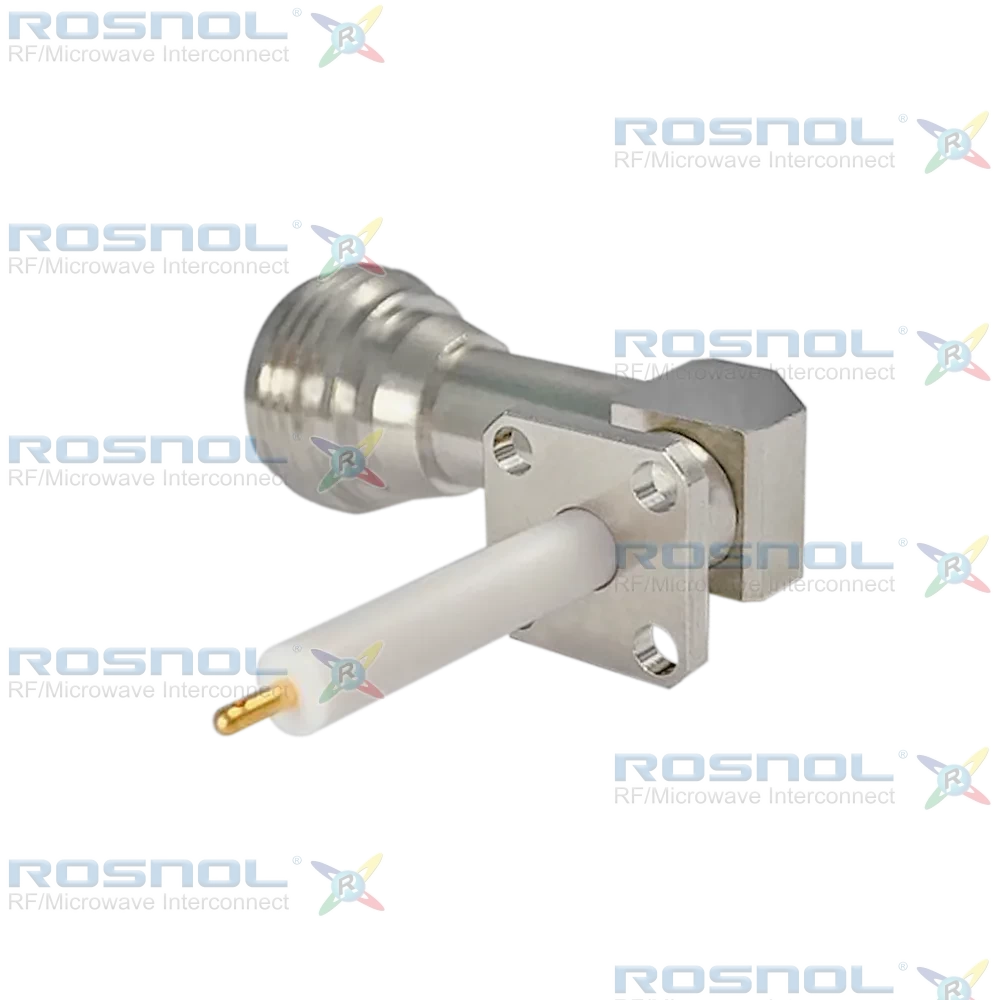

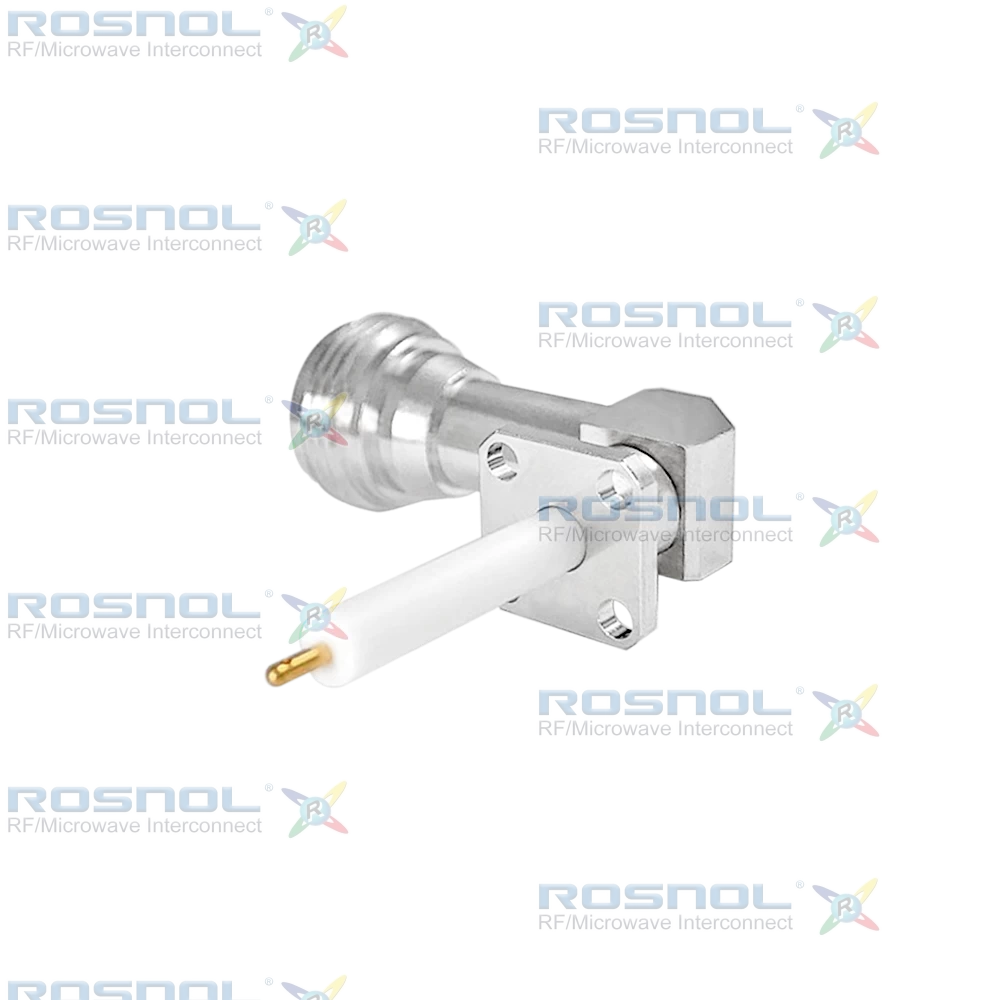

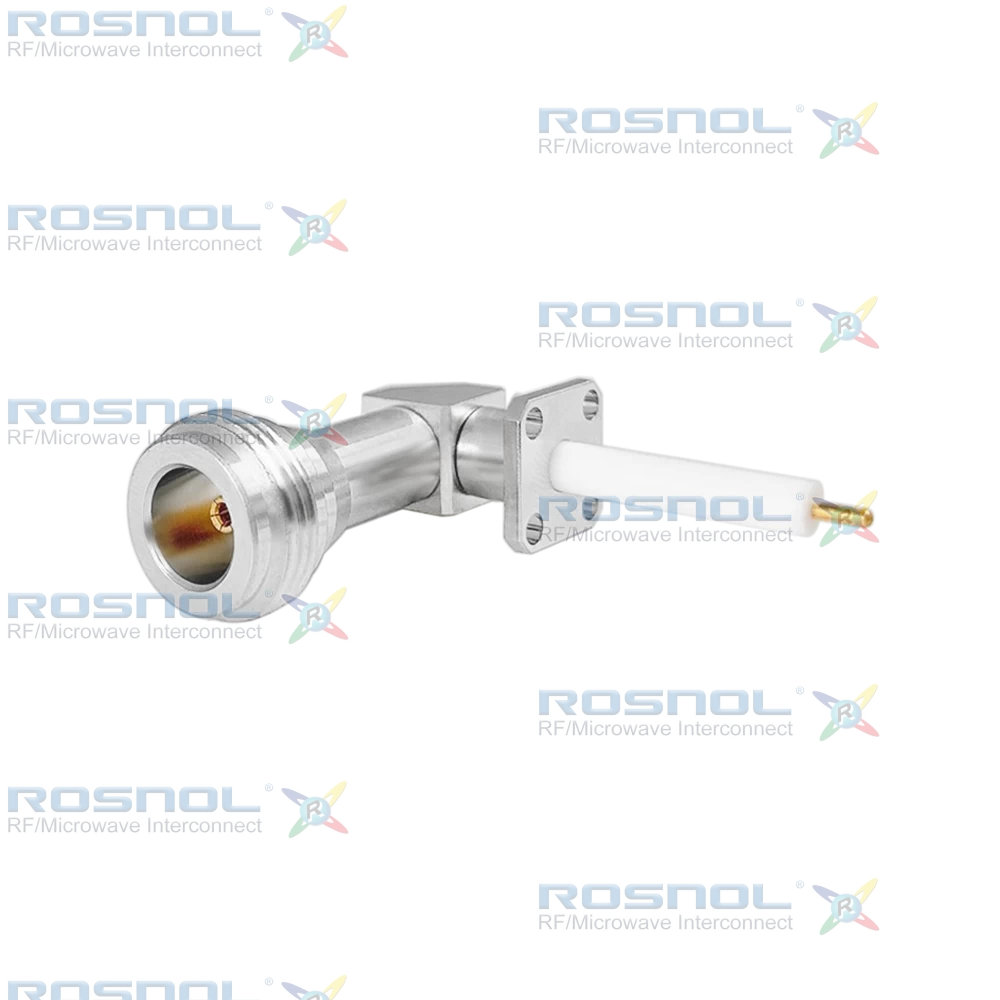

N Female Right angle Connector, 4 Hole Flange Mount, Solder cup, 8.64 mm Hole Spacing, 5 GHz, VSWR ≤ 1.12 Low PIM.

ROSNOL N2GFE59-4547B/90-LP is an N Jack (Female) Right Angle Low PIM RF Connector engineered for wireless infrastructure and high-power RF transmission applications where passive intermodulation performance is critical. Featuring a 4-hole flange mount configuration with 8.64 mm hole spacing, this connector provides secure panel installation and dependable mechanical stability. Designed with 50 Ω impedance and operating from DC to 5 GHz, it achieves excellent electrical performance with VSWR ≤ 1.12, low insertion loss, and RF leakage of ≤128 dB up to 1 GHz. Its Low PIM performance of ≥160 dBc (2 × 43 dBm) supports high-quality signal transmission in modern communication networks.

The connector utilizes a beryllium copper center contact with heavy gold plating to ensure outstanding conductivity and long-term reliability. The silver-plated brass body enhances conductivity and corrosion resistance, while the PTFE insulator maintains stable dielectric performance. The connector features a non-solder attachment design and incorporates a solder cup terminal structure for dependable cable termination. Additional mechanical characteristics include a screw-lock coupling mechanism, 500 mating cycles minimum, recommended torque of 0.7 to 1.1 Nm, and an operating temperature range of-55°C to +155°C.

This N Female Low PIM Connector is ideal for wireless infrastructure, distributed antenna systems (DAS), base station equipment, RF communication networks, antenna systems, and high-power RF installations. Its low VSWR, low intermodulation characteristics, and robust mechanical construction provide a reliable interconnect solution for engineers seeking stable RF performance in demanding network environments.
