N Female Connector, 4 Hole Flange, 11 GHz

Order No:N2GFB50-2550A/H4
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
11
VSWR, Max:
1.20
Connector Series:
N
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Brass
Body Plating:
Copper-Tin Zinc Alloy
Captivated Type:
Mechanical Captivation
Bankend Type:
Solder End

Description

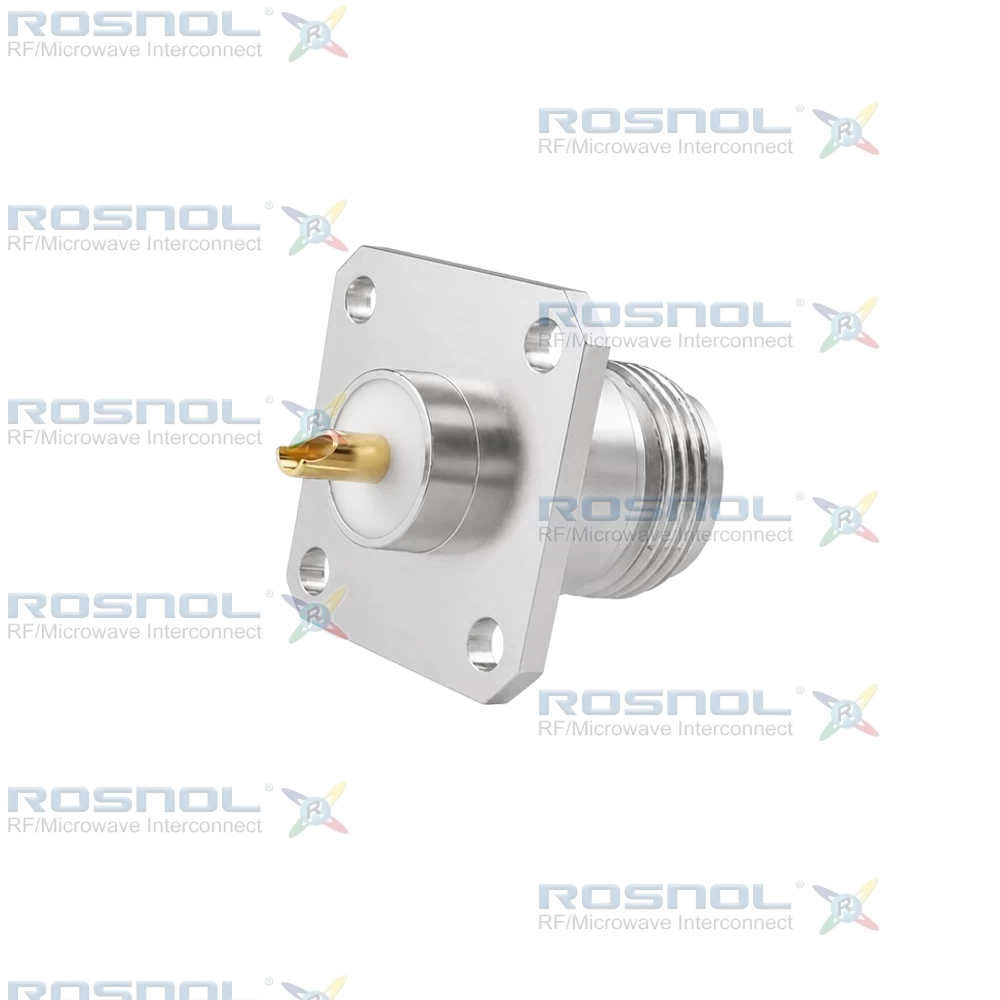

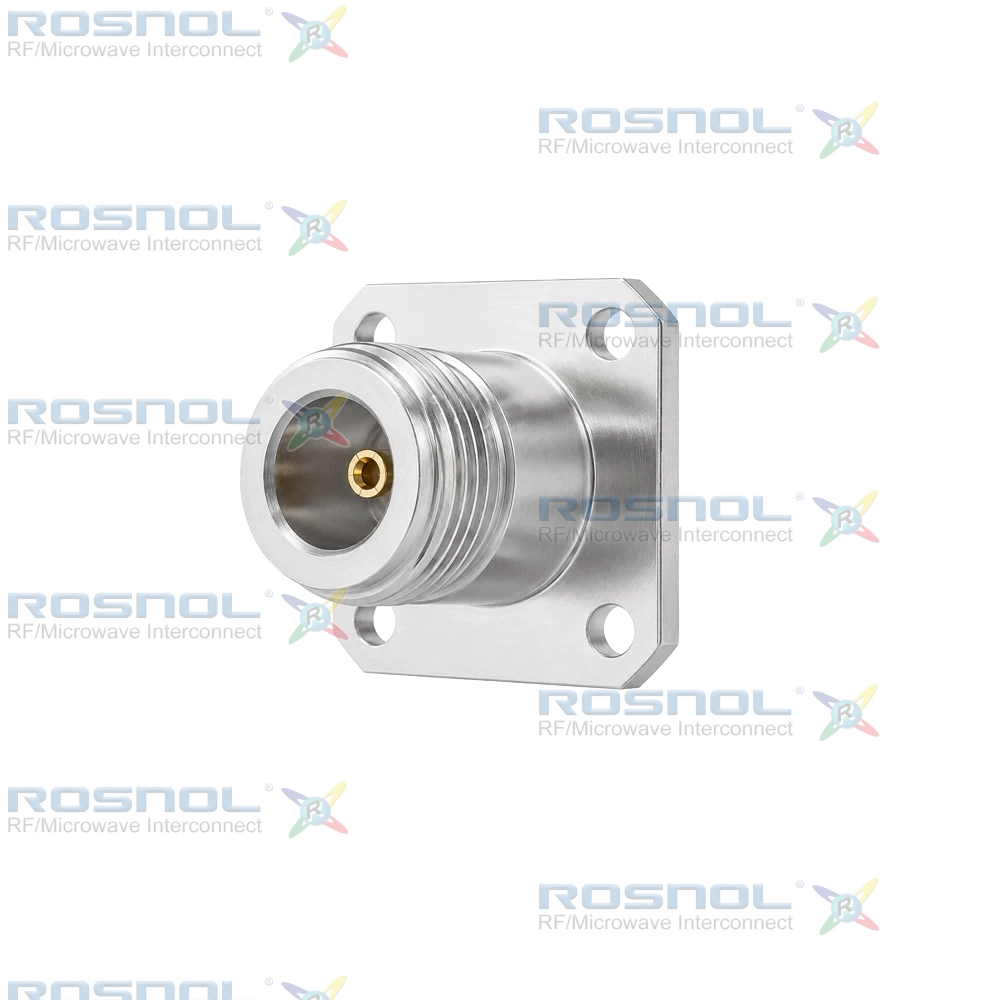

N Female Connector, 4 Hole Flange Mount, Solder cup Terminal, 18.25 mm Hole Spacing, 50 Ω, DC-11 GHz, VSWR ≤1.20.

ROSNOL N2GFB50-2550A/H4 is a precision N Jack (Female) connector designed for RF and microwave systems requiring secure panel mounting and dependable signal transmission. This 4-hole flange mount connector features an 18.25 mm (0.718 inch) hole spacing and a solder cup terminal, providing stable mechanical installation and reliable cable termination. Designed with a 50 Ω impedance and operating from DC to 11 GHz, it delivers a VSWR of ≤ 1.20 and insertion loss of ≤ 0.1 × √F (GHz) dB, supporting low-reflection signal transmission and excellent impedance matching for high-frequency applications.

The connector utilizes a phosphor bronze center contact with gold plating over a non-magnetic nickel-phosphorus underplating to ensure stable conductivity and long-term electrical reliability. The brass body is finished with a copper-tin-zinc alloy plating that enhances corrosion resistance and mechanical durability. A PTFE insulator maintains consistent dielectric performance, while the solder cup terminal provides a secure soldered connection between the connector and cable conductor. The screw-lock coupling mechanism supports more than 500 mating cycles and is rated for operation from -55°C to +155°C.

The N2GFB50-2550A/H4 is ideal for antenna feed systems, RF communication equipment, microwave assemblies, wireless infrastructure, RF testing platforms, and industrial electronics. Its durable construction and dependable RF characteristics make it a reliable N-type connector solution for professional high-frequency interconnect applications.
