Key Specifications
Type Design:
Standard
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
11
VSWR, Max:
1.20
Connector Style:
Panel Connector
Connector Series:
N
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Solder End
Description

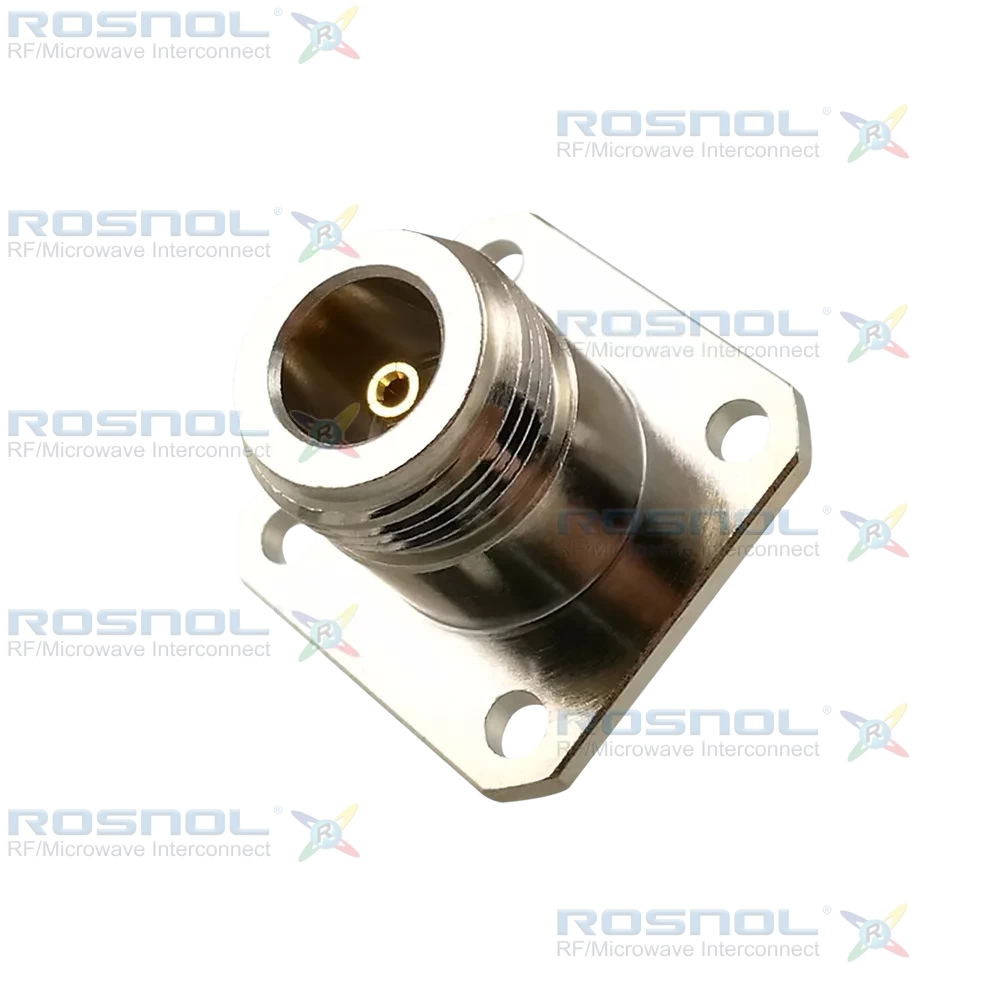

N Jack (Female) | Solder Attachment | 4-Hole Flange Mount | Stainless Steel Body
The ROSNOL N2GFB50-2830A/HX is engineered for demanding RF applications, offering DC to 11 GHz operation with 50 Ω impedance, VSWR ≤ 1.20, and insertion loss ≤ 0.1√f (GHz) dB. Electrical specifications include insulation resistance ≥ 5 GΩ and contact resistance ≤ 1 mΩ (center) and ≤ 0.25 mΩ (outer). Mechanical features include screw-lock coupling, ≥ 500 mating cycles, and captivated solder cup terminal for secure installation.The center contact is phosphor bronze with gold plating over nickel-phosphorus underplating, while the body is stainless steel with passivated finish. PTFE insulation ensures thermal stability from -55°C to +155°C.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All ROSNOL RF components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring environmental safety and global standards. Customization services for plating, materials, and mechanical design are available upon request.
