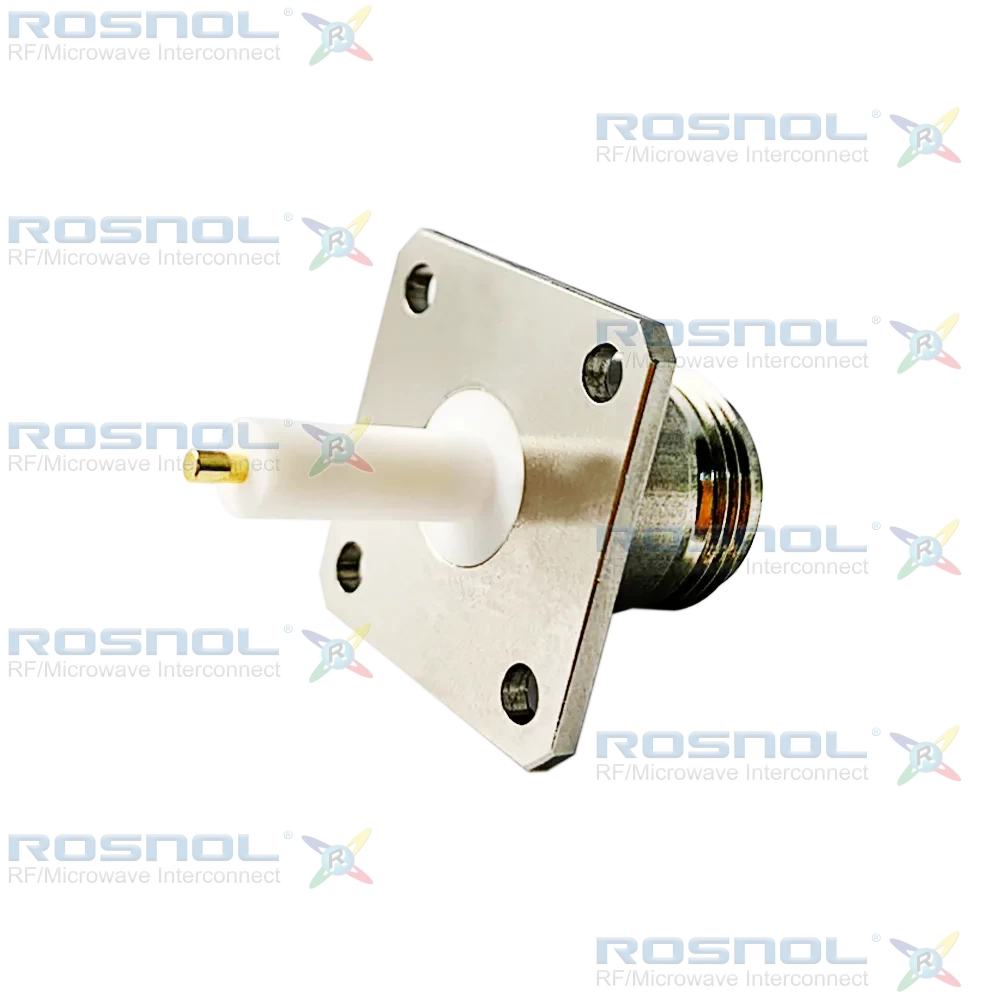

N Female Connector, 4 Hole Flange, 11 GHz

Order No:N2GFA50-3660A/H4
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
11
VSWR, Max:
1.20
Connector Series:
N
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Brass
Body Plating:
Copper-Tin Zinc Alloy
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

N Female Connector, 4 Hole Flange Mount, Stub Terminal, 18.25 mm Hole Spacing, 50 Ω, DC-11 GHz, VSWR ≤1.20.

ROSNOL N2GFA50-3660A/H4 is a precision N Jack (Female) connector designed for RF and microwave systems that require stable electrical performance and robust mechanical mounting. Featuring a 4-hole flange mount design with 18.25 mm (0.719 inch) hole spacing and a solder attachment stub terminal, this connector provides secure integration into communication and measurement equipment. Operating from DC to 11 GHz with a characteristic impedance of 50 Ω, VSWR ≤ 1.20, and insertion loss ≤ 0.1 × √F (GHz) dB, it supports efficient signal transmission and excellent return-loss performance.

The connector incorporates a phosphor bronze center contact with gold plating over a non-magnetic nickel-phosphorus underplating, ensuring reliable conductivity and long-term mating stability. Its brass body is finished with a copper-tin-zinc alloy plating that enhances durability and resistance to environmental exposure. A PTFE insulator provides dependable dielectric performance, while the soldered stub terminal structure allows secure conductor termination. The screw-lock coupling mechanism supports at least 500 mating cycles, and the connector operates reliably within a temperature range of -55°C to +155°C.

The N2GFA50-3660A/H4 is suitable for antenna feed networks, RF communication systems, microwave equipment, laboratory instrumentation, wireless infrastructure, and industrial electronics. Its stable RF characteristics and durable construction make it an effective interconnect solution for demanding high-frequency applications.
