BMA 2 Hole Flange Female Connector, 22 GHz

Order No:BMA2GTA50-1495A-EC/9X
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
22
VSWR, Max:
1.25
Connector Series:
BMA
Connector Gender:
Jack (Female)
Connection Method:
Slide-On
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Epoxy Captivation
Bankend Type:
Coaxial End

Description

BMA Female Connector, 2 Hole Flange Mount, 12.22 mm (.481 in) Hole Spacing, 50 Ω, DC-22 GHz VSWR ≤ 1.25.

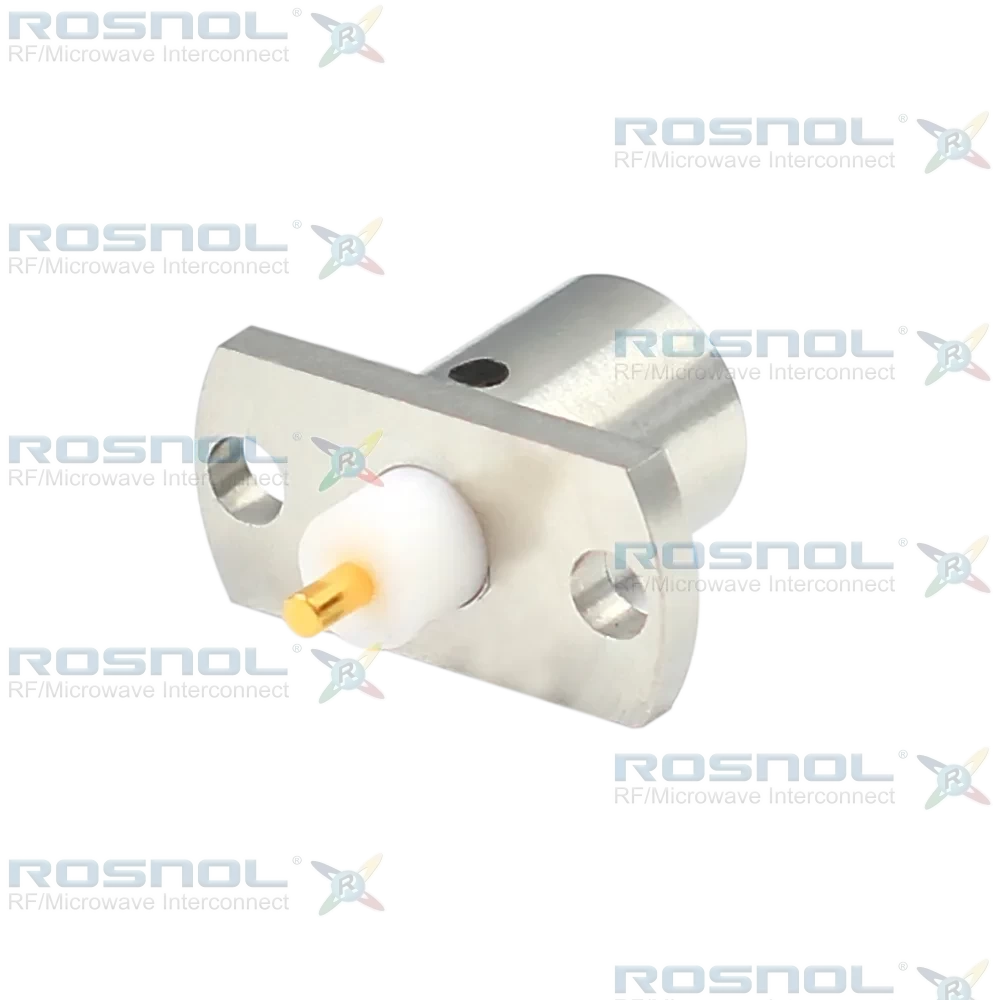

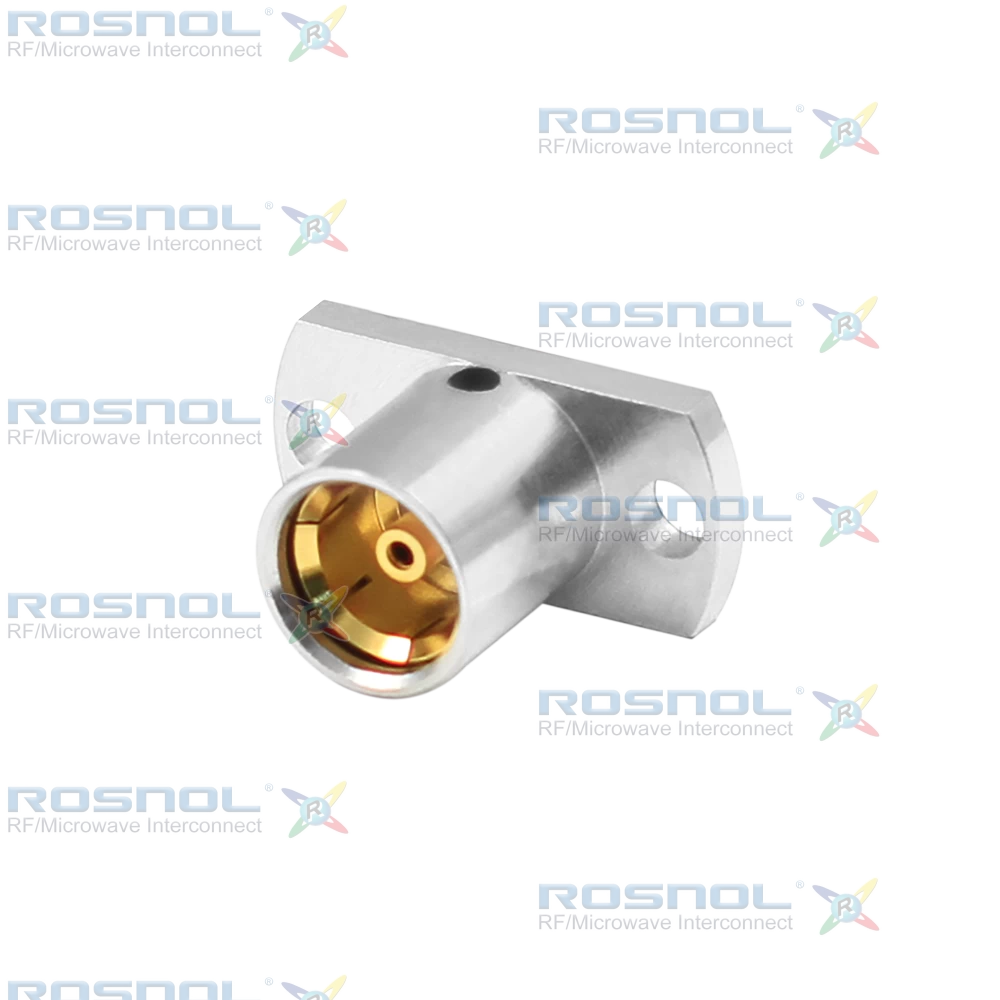

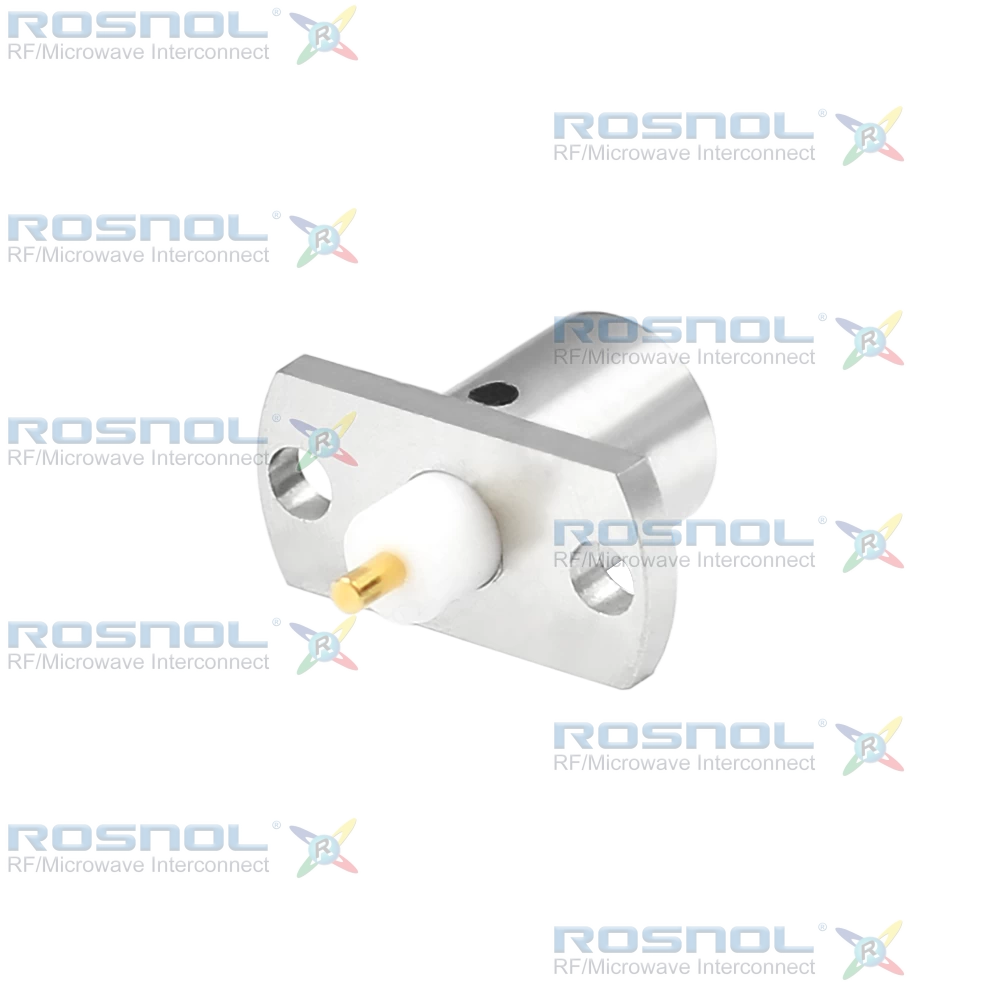

ROSNOL BMA2GTA50-1495A-EC/9X is a BMA Jack (Female) RF Connector designed for high-frequency RF and microwave applications requiring reliable signal transmission and compact panel integration. Featuring a 2-hole flange mount configuration with 12.22 mm hole spacing, this connector supports efficient installation while maintaining consistent mechanical alignment. Designed with 50 Ω impedance and operating from DC to 22 GHz, it delivers excellent RF performance with VSWR ≤ 1.25, low insertion loss, and high RF leakage shielding. The connector also incorporates an epoxy captivated center contact structure, enhancing mechanical stability in demanding RF environments.

The connector utilizes a beryllium copper center contact with gold plating over a non-magnetic nickel-phosphorus underplating for superior conductivity and durability. The passivated stainless-steel body provides robust mechanical strength and corrosion resistance, while the PTFE insulator ensures stable dielectric performance across the operating frequency range. The center contact features a solder attachment design that provides secure electrical and mechanical cable termination. Additional features include a slide-on coupling mechanism, 1000 mating cycles minimum, center contact retention of ≥27 N, and an operating temperature range of-65°C to +165°C.

This BMA Female Connector is suitable for RF communication systems, microwave modules, wireless infrastructure, radar equipment, aerospace electronics, and high-density RF interconnect platforms. Its broadband frequency capability, epoxy captivated construction, and durable mechanical design provide engineers with a dependable solution for maintaining signal integrity in professional RF applications.
