Key Specifications
Type Design:
Standard
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
7.5
VSWR, Max:
1.20
Connector Style:
Panel Connector
Connector Series:
7/16
Connector Gender:
Plug (Male)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Brass
Body Plating:
Copper-Tin Zinc Alloy
Captivated Type:
Mechanical Captivation
Bankend Type:
Flat End
Description

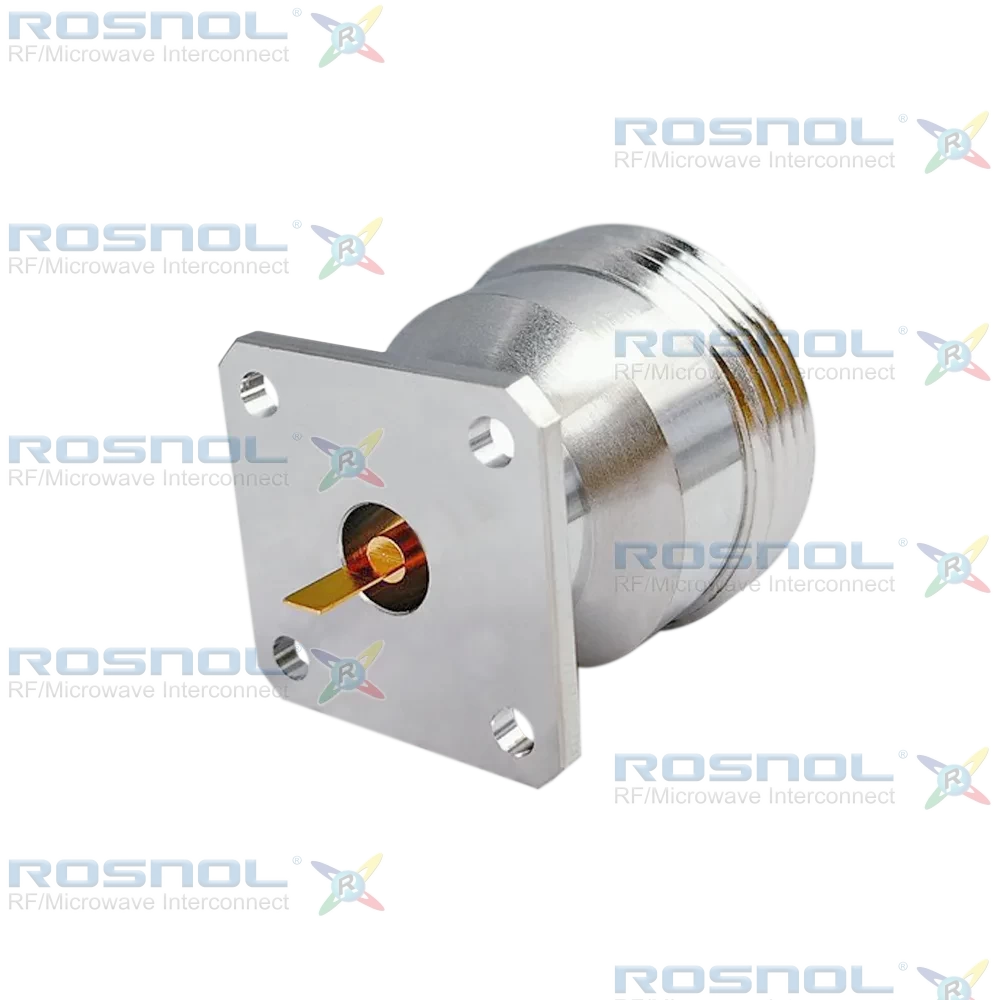

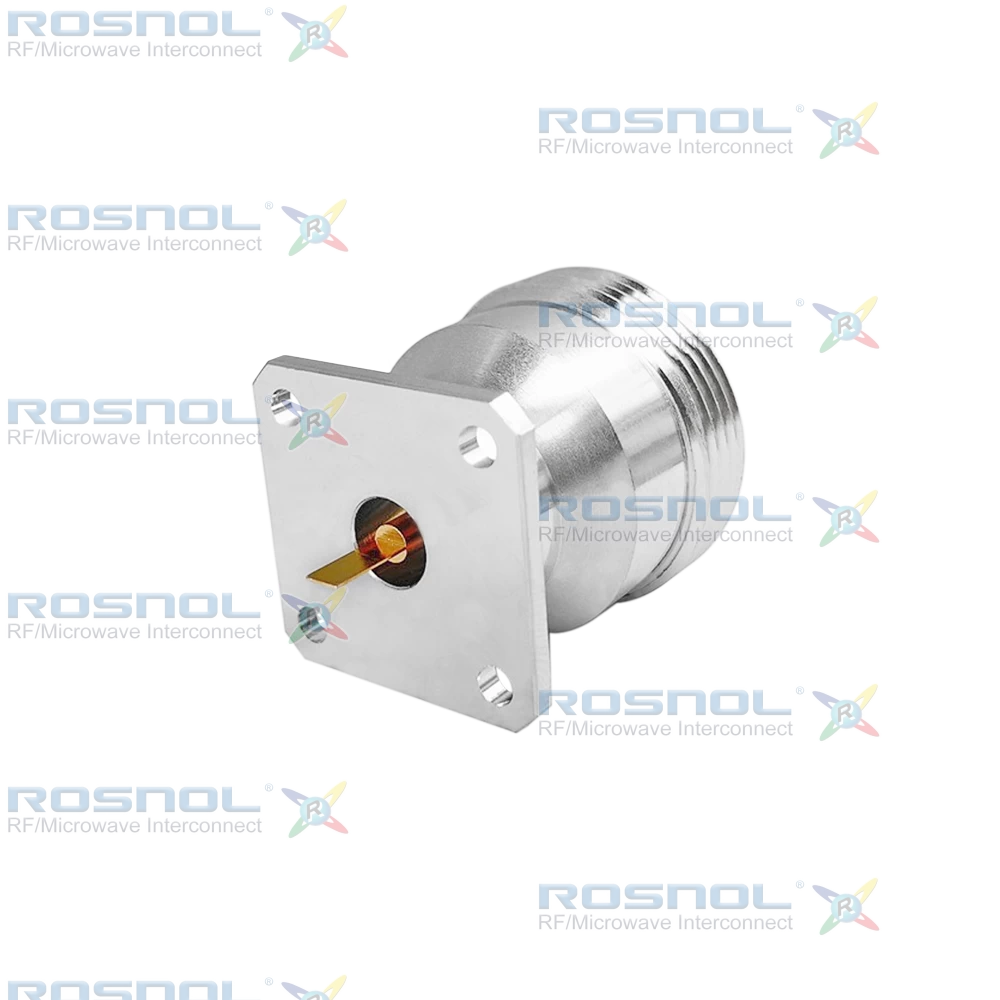

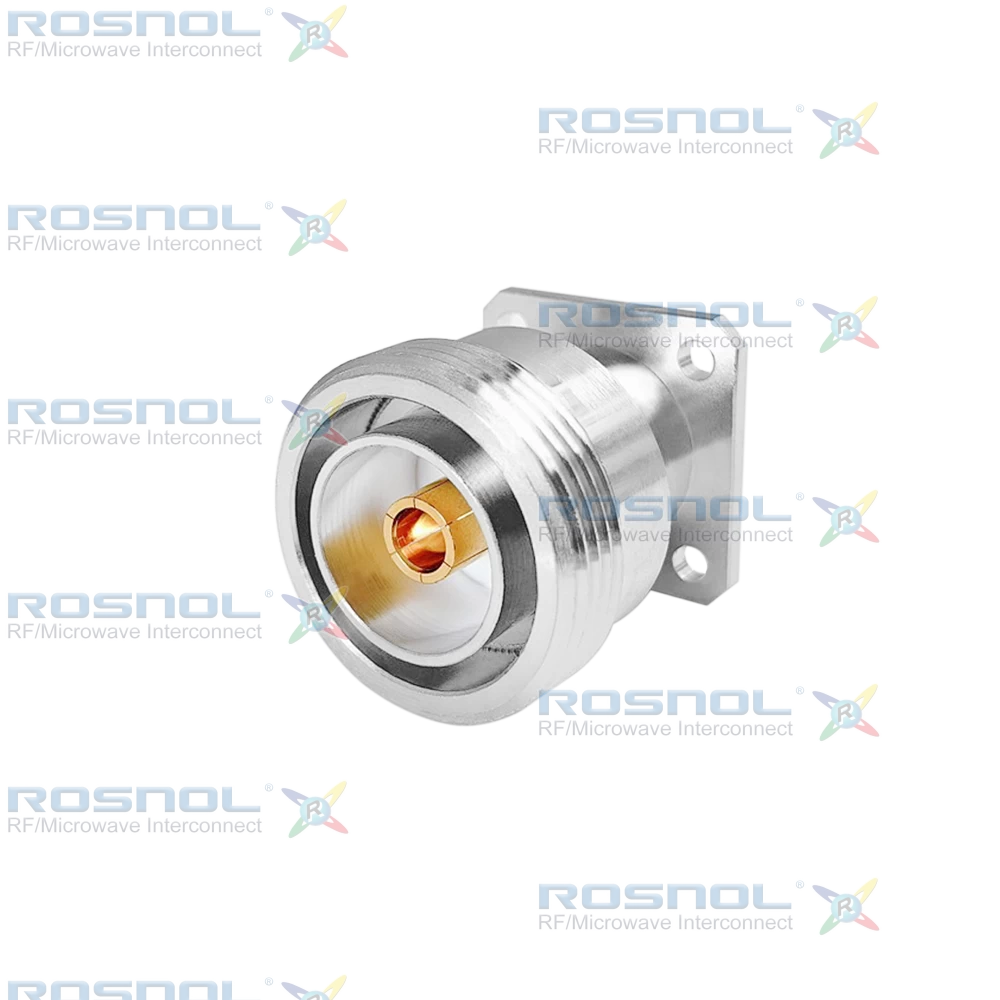

7/16 Jack (Female) | Straight Panel Receptacle | Screw-lock | Brass Body
The ROSNOL 716-2GFD50-3720A/H4 is designed for RF and microwave systems requiring secure straight panel mounting. Rated for DC to 7.5 GHz, it offers 50 Ω impedance, dielectric withstanding voltage of 4000 V rms, and reliable RF performance for critical applications. Mechanical features include screw-lock coupling, ≥ 500 mating cycles, and captivated flat-end design for robust mechanical integrity.The center contact is phosphor bronze with gold plating over nickel underplating for optimal conductivity, while the body is brass with copper-tin-zinc alloy finish. PTFE insulators ensure excellent dielectric properties, and the connector is designed to withstand extreme temperatures from -65°C to +165°C.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All ROSNOL RF components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring environmental safety and global standards. Customization services for plating, materials, and mechanical design are available upon request.
