Key Specifications
Type Design:
Standard
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
6.0
VSWR, Max:
1.20
Connector Style:
Panel Connector
Connector Series:
4.3-10
Connector Gender:
Plug (Male)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Brass
Body Plating:
Copper-Tin Zinc Alloy
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End
Description

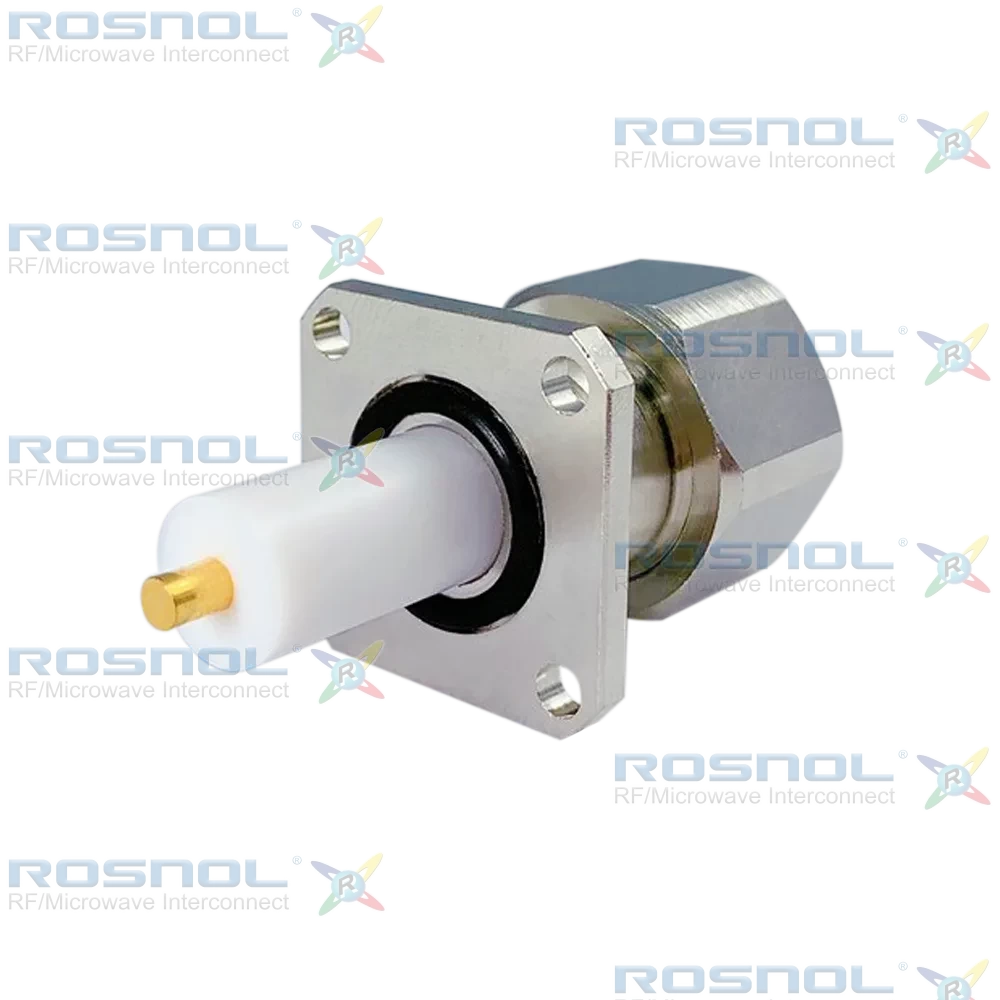

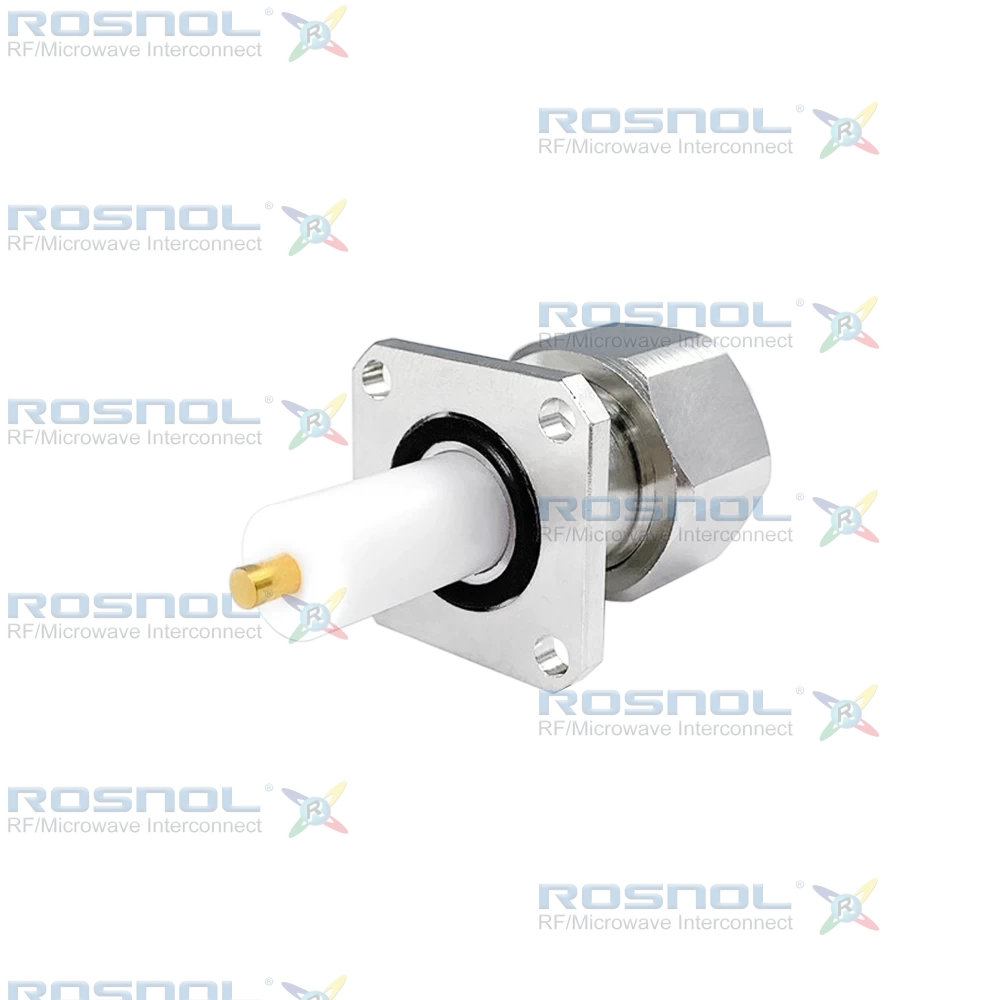

4.3-10 Plug (Male) | 4-Hole Flange Panel Mount | Screw-lock | Brass Body
The ROSNOL 43101GFA50-5095A/144 is a high-performance 4.3-10 plug connector designed for panel receptacle mounting with a 4-hole flange and stub terminal configuration. It supports DC to 6 GHz with 50 Ω impedance, VSWR ≤ 1.20 (≥ 20.83 dB return loss), and insertion loss ≤ 0.1√f (GHz) dB. Electrical integrity includes insulation resistance ≥ 5 GΩ, RF leakage ≥ 110 dB up to 6 GHz for tool-tightened plugs, and power handling up to 500 W at 2 GHz. Mechanical reliability is ensured with screw-lock coupling, ≥ 500 mating cycles, and recommended torque of 5 Nm.Constructed for durability, the center contact is brass with 3 μinch gold plating over 80 μinch non-magnetic nickel-phosphorus underplating. The body and coupling nut are brass with copper-tin-zinc alloy finish, while the insulator is PTFE for superior dielectric performance. A silicone rubber gasket provides environmental sealing, ensuring IP68 compliance for moisture resistance.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All ROSNOL RF components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring environmental safety and global standards. Customization services for plating, materials, and mechanical design are available upon request.
