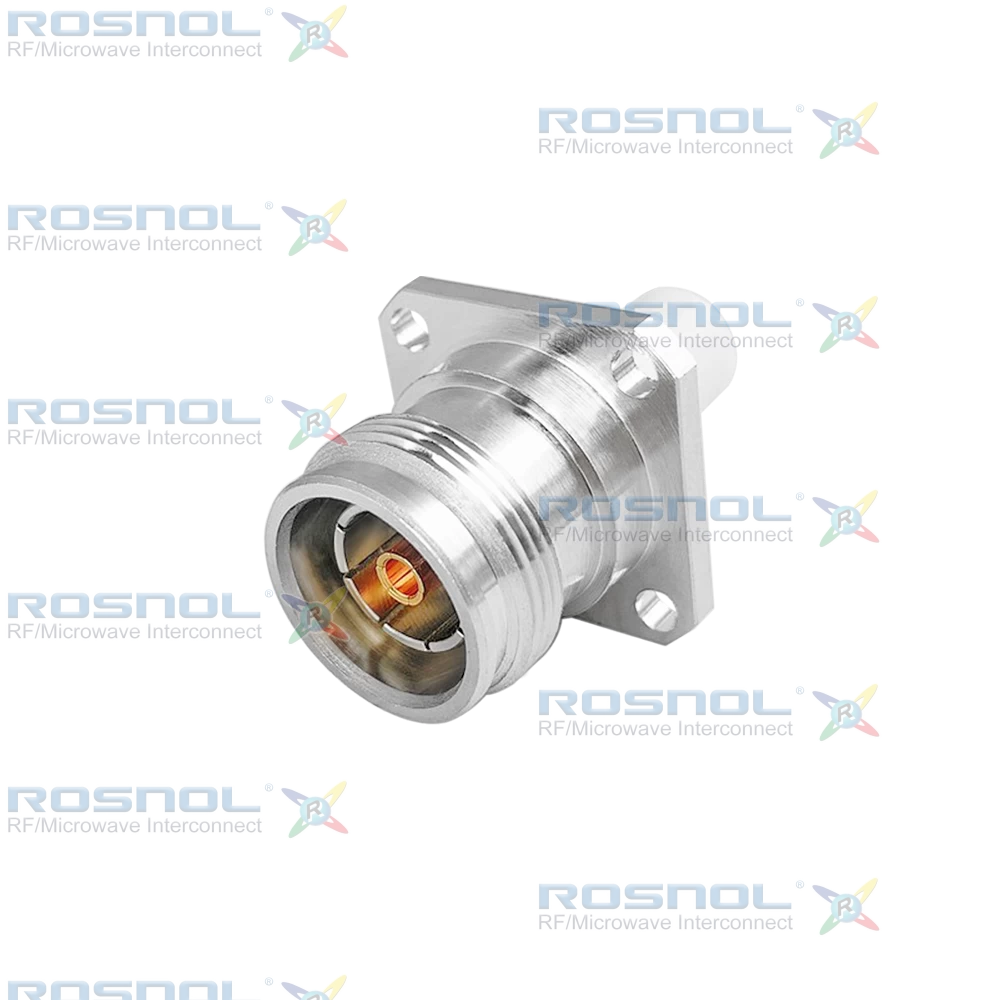

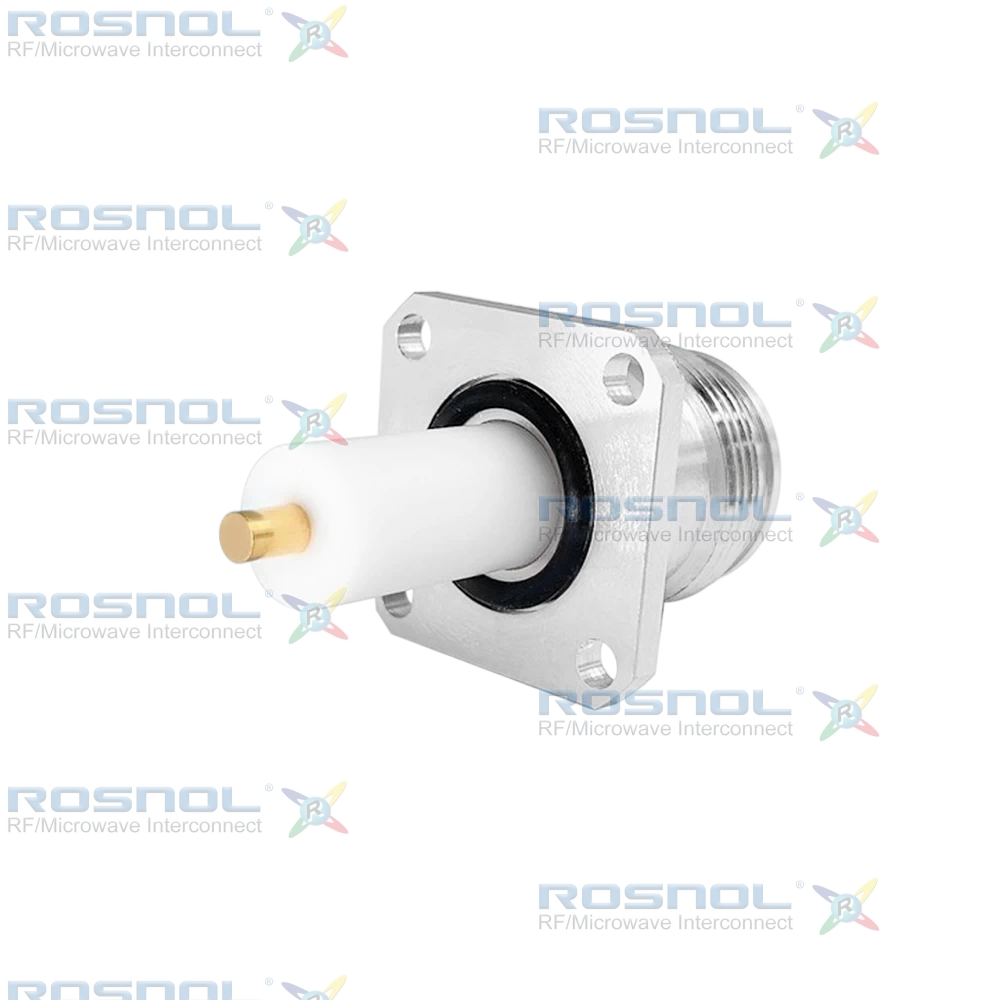

4.3-10 Female Connector, 4 Hole Flange, 12 GHz

Order No:43102GFA50-4380A/H4-LP
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
12
VSWR, Max:
1.20
Connector Series:
4.3-10
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Brass
Body Plating:
Copper-Tin Zinc Alloy
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

4.3-10 Female Connector, 4 Panel Receptacle Mount, Stub Terminal, 19 mm Hole Spacing, DC- 6 GHz, VSWR ≤1.20 (low pin).

The ROSNOL 43102GFA50-4380A/H4-LP is a 4.3-10 jack (female) low-PIM connector with 4-panel receptacle mount and stub terminal, featuring 19 mm (.748 inch) hole spacing. This female connector operates from DC to 12 GHz at 50 Ω impedance. Electrical data include VSWR of ≤ 1.20 (return loss ≥ 20.83 dB) from DC to 6 GHz, insertion loss of ≤ 0.1 × √f (GHz) dB in the same range, RF leakage of ≥ 110 dB from DC to 6 GHz for tool-tightened plugs, power handling of 500 W at 2.0 GHz, and a PIM level of ≥ 155 dBc from 0.4 GHz to 4 GHz.

Construction uses a brass body with copper-tin-zinc alloy plating and a phosphor bronze center contact with 3 μinch gold plating over non-magnetic nickel-phosphorus underplating. The insulator is PTFE and the gasket is silicone rubber. Mechanical characteristics include screw-lock coupling, mechanical captivation of the center contact, stub terminal, and ≥ 500 mating cycles, with recommended torque of 5 Nm. The temperature range is –65 °C to +165 °C, and the connector is RoHS compliant.

This low-PIM 4.3-10 female panel-mount connector is designed for RF and microwave systems that require minimized passive intermodulation up to 12 GHz. It is appropriate for multi-carrier wireless infrastructure, base-station applications, and telecommunications equipment where low PIM performance, stable VSWR, and reliable mechanical captivation help maintain signal quality.
