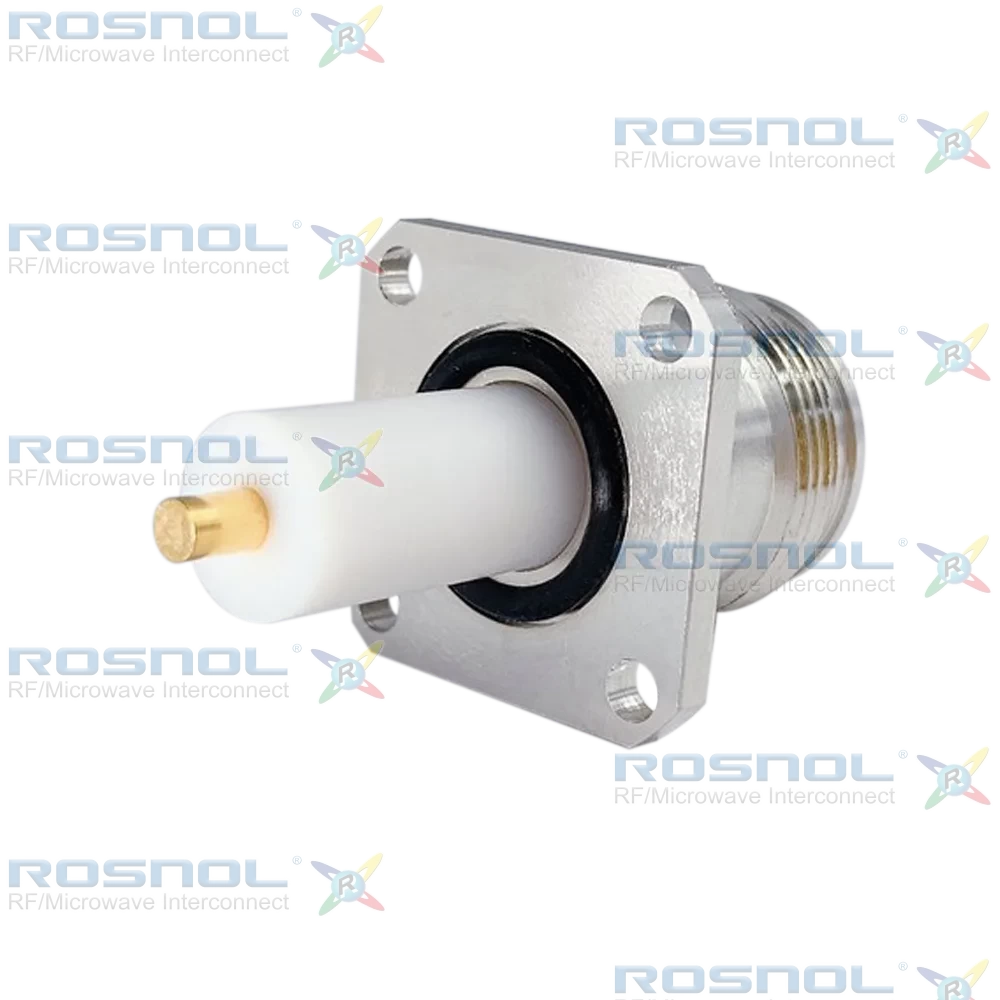

4.3-10 Female Connector, 4 Hole Flange, 6 GHz

Order No:43102GFA50-4380A/H4
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
6.0
VSWR, Max:
1.20
Connector Series:
4.3-10
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Brass
Body Plating:
Copper-Tin Zinc Alloy
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

4.3-10 Female Connector 4 Panel Receptacle Mount, Stub Terminal, 19 mm Hole Spacing, 50 Ω, DC- 6 GHz, VSWR ≤1.20.

The ROSNOL 43102GFA50-4380A/H4 is a 4.3-10 jack (female) connector with 4-panel receptacle mount and stub terminal, utilizing 19 mm (.748 inch) hole spacing. This female connector supports operation from DC to 6 GHz at 50 Ω impedance. Key specifications include VSWR of ≤ 1.20 (return loss ≥ 20.83 dB), insertion loss of ≤ 0.1 × √f (GHz) dB, RF leakage of ≥ 110 dB from DC to 6 GHz for tool-tightened plugs, and power handling of 500 W at 2.0 GHz, providing consistent electrical performance for RF signal paths.

The body is brass plated with copper-tin-zinc alloy, and the center contact is phosphor bronze finished with 3 μinch gold plating over non-magnetic nickel-phosphorus underplating. PTFE serves as the insulator and silicone rubber as the gasket. Screw-lock coupling, mechanical captivation, stub terminal design, and ≥ 500 mating cycles form the mechanical features, with a recommended torque of 5 Nm. Operating temperature extends from –65 °C to +165 °C, and the product is RoHS compliant.

This 4.3-10 female panel-mount connector addresses RF and microwave applications up to 6 GHz. It is suitable for high-power wireless systems, base-station interconnects, and telecommunications infrastructure where stable impedance matching, controlled insertion loss, and durable mechanical performance support long-term reliability.
