Key Specifications
Type Design:
Precision
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
40
VSWR, Max:
1.20
Connector Style:
Panel Connector
Connector Series:
2.92mm
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End
Description

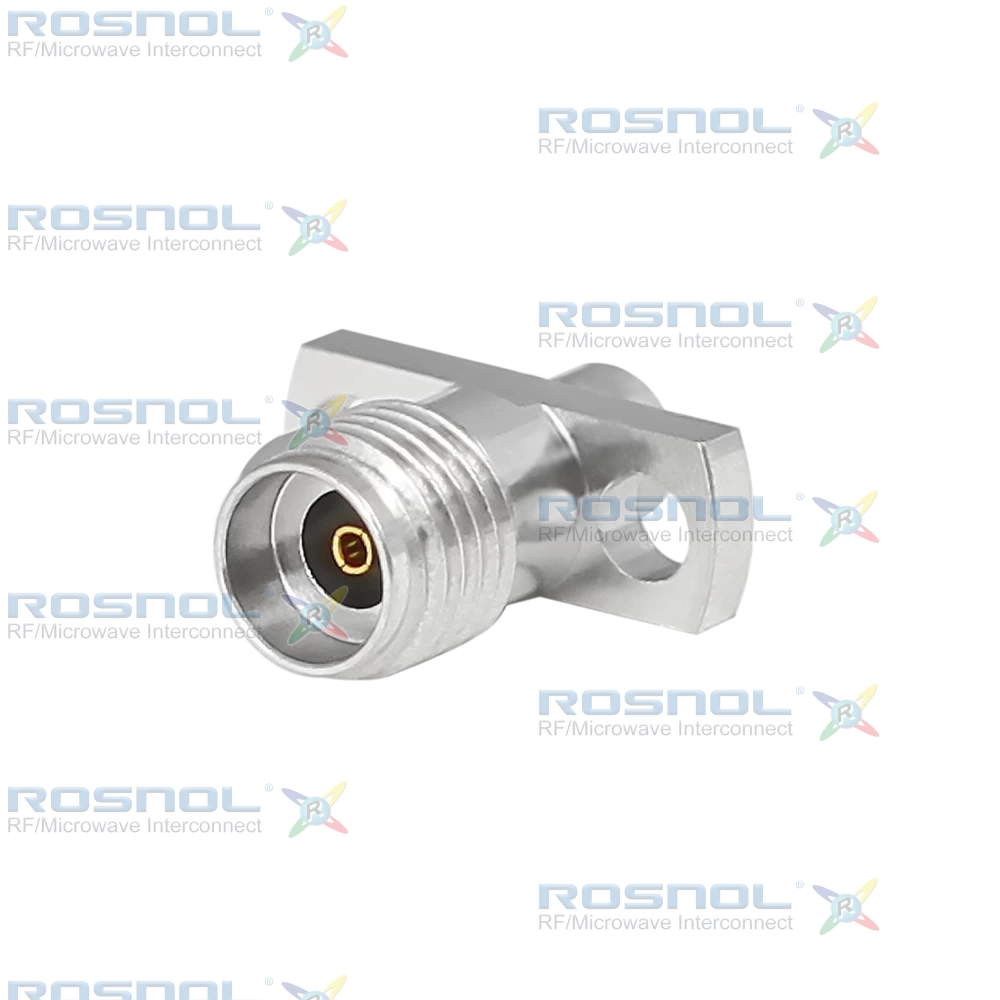

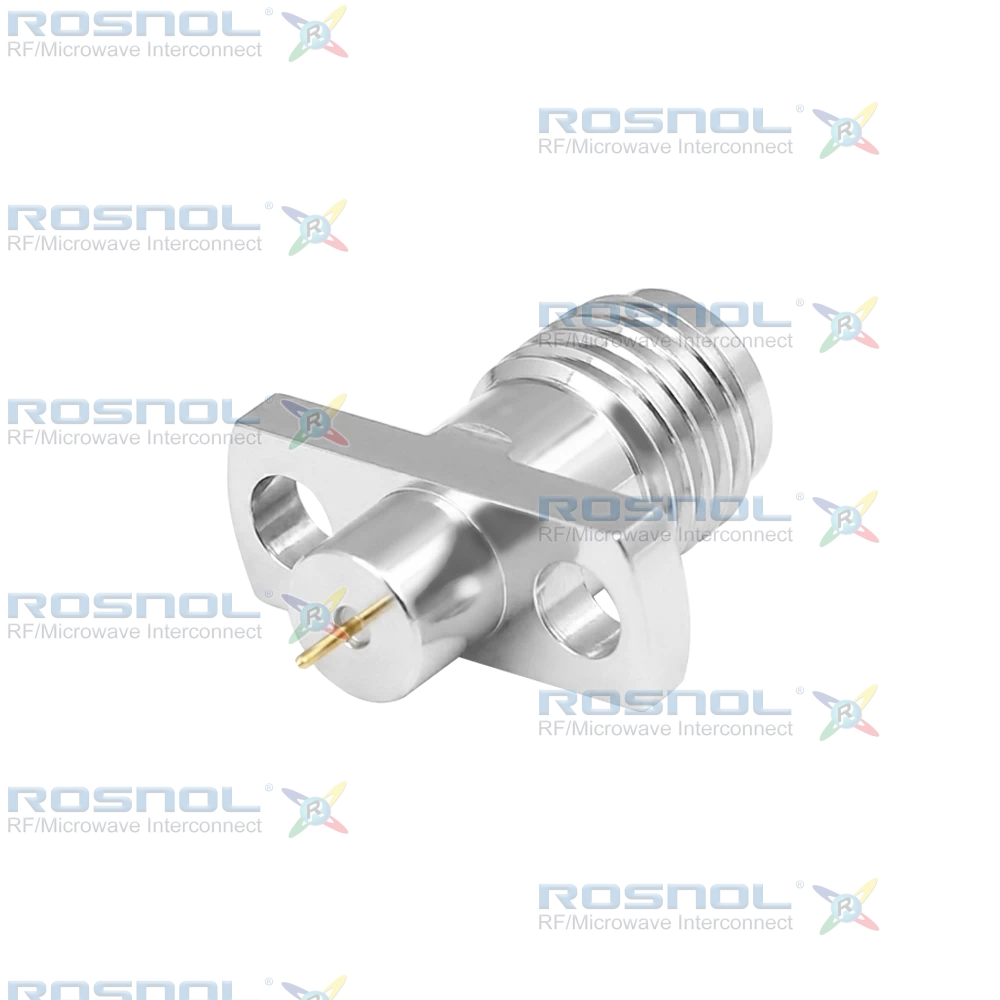

2.92mm Jack (Female) | Solder Attachment | 2-Hole Flange Mount | Stainless Steel Body
The ROSNOL K2GTA50-1450D/9X is designed for RF and microwave systems requiring secure solder attachment and compact flange mounting. Rated for DC to 40 GHz, it offers 50 Ω impedance, VSWR ≤ 1.20, insertion loss ≤ 0.04√f (GHz) dB, and RF leakage ≥ 85 dB up to 1 GHz. Electrical performance includes insulation resistance ≥ 5 GΩ and power handling up to 100 W at 1 GHz. Mechanical features include screw-lock coupling, ≥ 500 mating cycles, and captivated stub terminal for robust mechanical integrity.The center contact is beryllium copper with gold plating over nickel-phosphorus underplating for optimal conductivity, while the body is stainless steel with passivated finish. PEI/PTFE insulators ensure excellent dielectric properties, and the connector is designed to withstand extreme temperatures from -55°C to +165°C.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All ROSNOL RF components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring environmental safety and global standards. Customization services for plating, materials, and mechanical design are available upon request.
