BMA Male Field Replaceable, 2 Hole, 22 GHz

Order No:BMA1BT50-0020A-EMI/9X
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
22
VSWR, Max:
1.25
Connector Series:
BMA
Connector Gender:
Plug (Male)
Connection Method:
Slide-On
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Accepts Pin ∅0.51 [.020]

Description

BMA Male Field Replaceable Connector, 2 Hole Flange Mount, .020 inch Accept Pin With EMI Gasket, DC-22 GHz, VSWR ≤ 1.2.

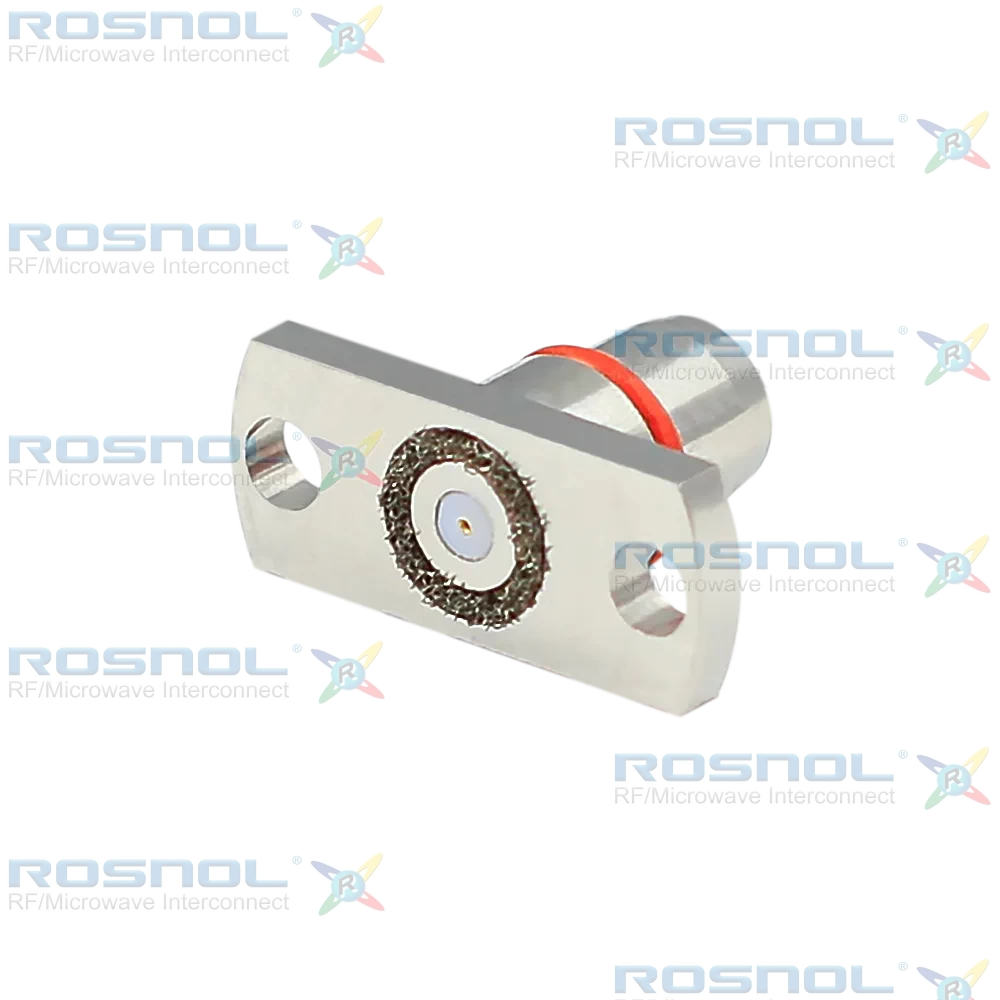

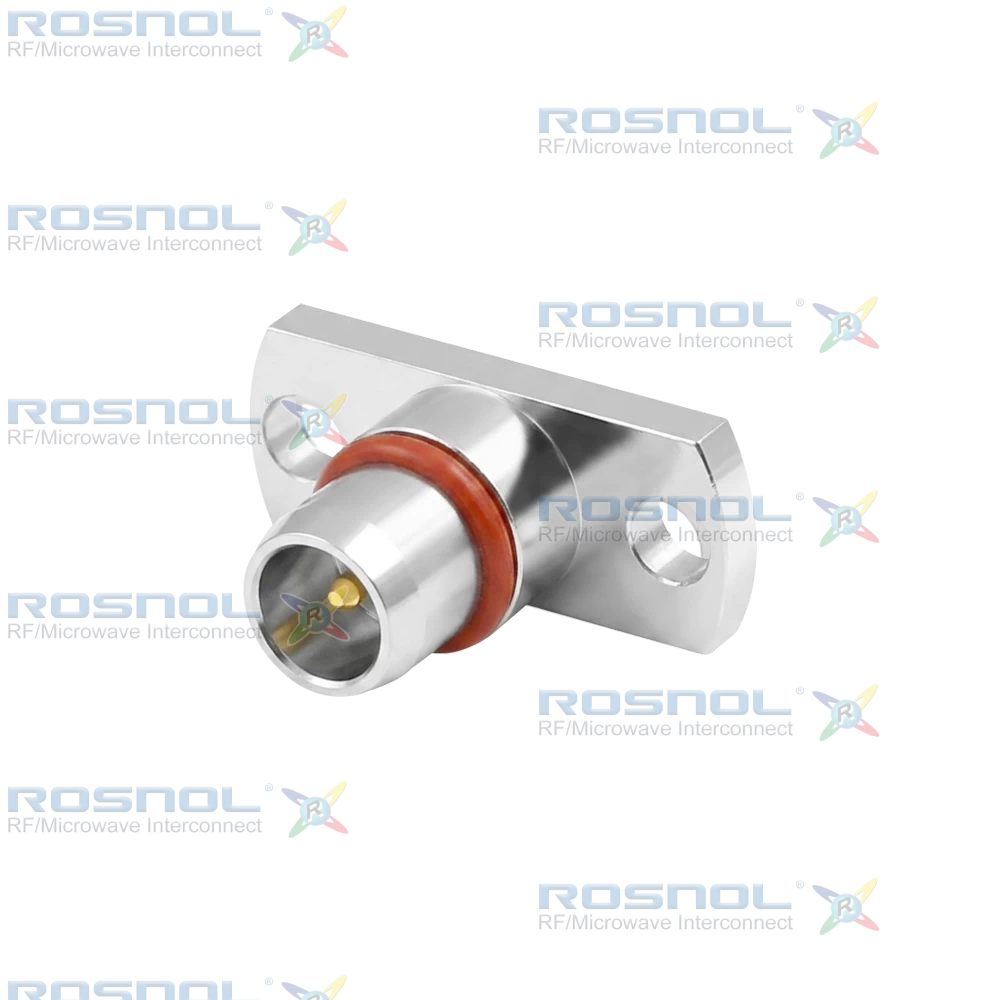

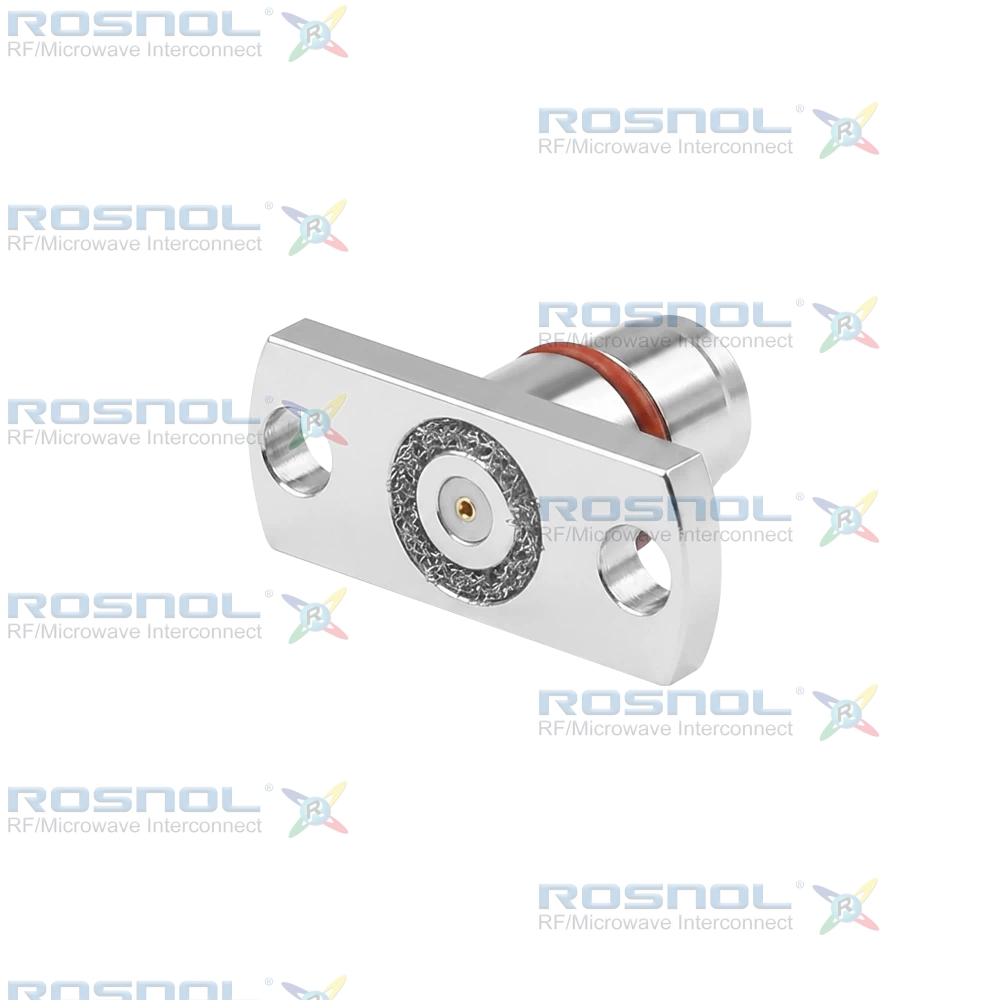

ROSNOL BMA1BT50-0020A-EMI/9X is a BMA Plug (Male) Slide-On Field Replaceable Connector designed with a 2-hole flange mount and integrated EMI gasket for RF and microwave applications up to 22 GHz. Accepting a 0.020-inch (0.51 mm) pin, this 50 Ω connector combines high-frequency electrical performance with enhanced panel shielding capability. Important electrical specifications include VSWR ≤ 1.25 (Return Loss ≥ 19.08 dB), insertion loss ≤ 0.05 × √F (GHz) dB, insulation resistance ≥ 5 GΩ, and a working voltage of 400 V rms, making it suitable for demanding RF environments.

The connector features a beryllium copper center contact with gold plating over non-magnetic nickel-phosphorus underplating to provide excellent conductivity and wear resistance. The body is manufactured from passivated stainless steel, while the PTFE insulator ensures stable dielectric performance. In addition to the standard silicone rubber gasket, a conductive silicone elastomer EMI gasket enhances shielding effectiveness at the mounting interface. The slide-on coupling mechanism supports at least 1,000 mating cycles, with center contact captivation of ≥ 27 N and an operating temperature range from -65°C to +165°C.

BMA1BT50-0020A-EMI/9X is suitable for RF communication equipment, microwave modules, shielded electronic enclosures, aerospace electronics, and high-density RF assemblies where EMI control is important. Its field replaceable structure, slide-on interface, and integrated EMI sealing provide a reliable interconnect solution for advanced RF system designs.
