2.92mm Female Field Replaceable, 40 GHz

Order No:K2BF50-0015B/9X
Add Cart

Key Specifications

Type Design:
Precision
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
40
VSWR, Max:
1.15
Connector Series:
2.92mm
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Mount Method:
4 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Accepts Pin ∅0.38 [.015]

Description

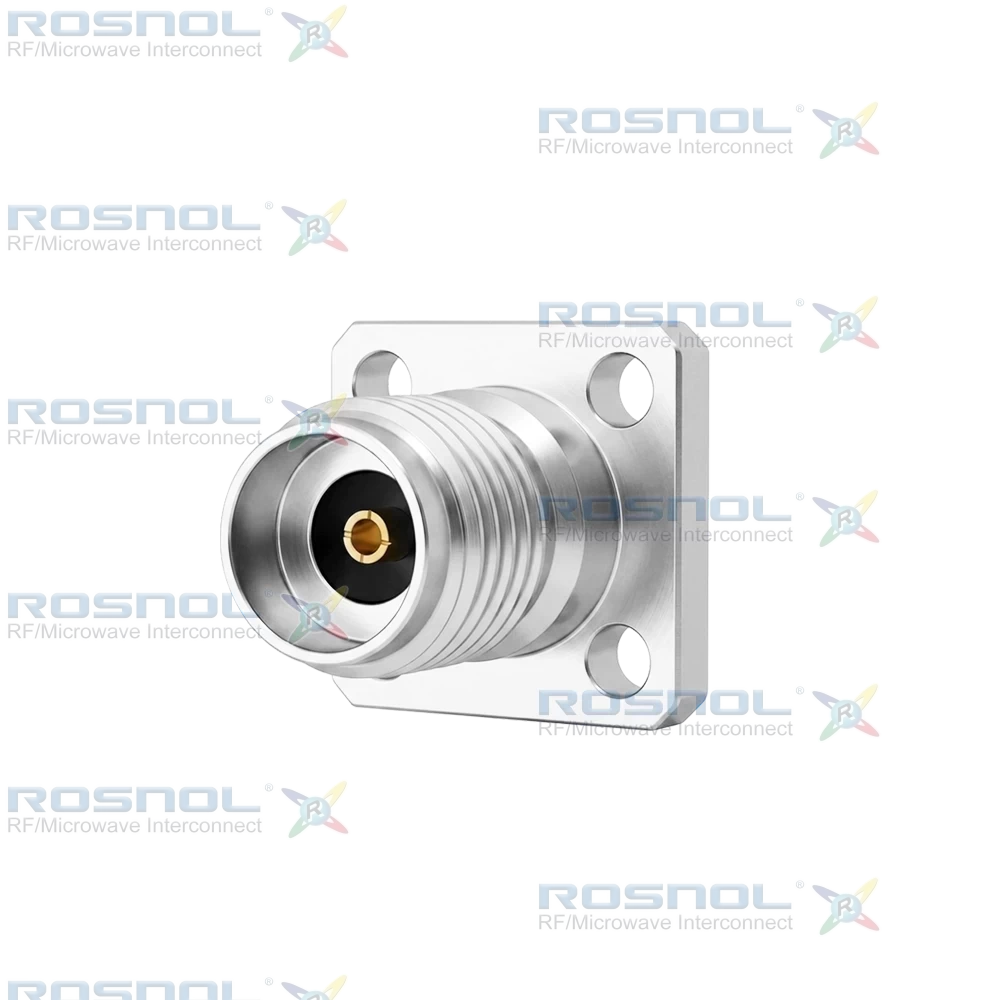

2.92mm Female Field Replaceable Connector, 4 Hole Flange, 6.35mm Hole Spacing, 40 GHz VSWR ≤ 1.15.

ROSNOL K2BF50-0015B/9X is a high-performance 2.92mm Jack (Female) RF connector engineered for broadband microwave applications from DC to 40 GHz. This 50 Ohm straight field replaceable connector features a compact 4-hole flange mount design with 6.35 mm (.250 inch) hole spacing and a 0.38 mm (.015 inch) pin size interface. The connector delivers excellent electrical characteristics including VSWR ≤1.10 through 27 GHz and ≤1.15 through 40 GHz, insertion loss ≤0.3 dB, insulation resistance ≥5 GΩ, and RF leakage ≥100 dB up to 1 GHz, supporting accurate signal transmission in critical RF systems.

The center contact is manufactured from beryllium copper and finished with gold plating over non-magnetic nickel-phosphorus underplating to ensure reliable conductivity and wear resistance. A passivated stainless-steel body provides durability and environmental resistance, while the PS insulator maintains stable electrical performance. Mechanical features include a screw-lock coupling system, center contact captivation of at least 20 N, recommended coupling torque from 0.80 Nm to 1.10 Nm, and more than 500 mating cycles. The operating temperature range extends from -65°C to +155°C.

This connector is ideal for microwave instrumentation, RF communication infrastructure, radar electronics, aerospace systems, semiconductor testing equipment, and laboratory measurement platforms. Its compact flange configuration and field replaceable construction make it a practical and reliable RF interconnect solution for high-frequency applications.
