2.92mm Female Field Replaceable, 40 GHz

Order No:K2BF50-0012B/9X
Add Cart

Key Specifications

Type Design:
Precision
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
40
VSWR, Max:
1.15
Connector Series:
2.92mm
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Mount Method:
4 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Accepts Pin ∅0.30 [.012]

Description

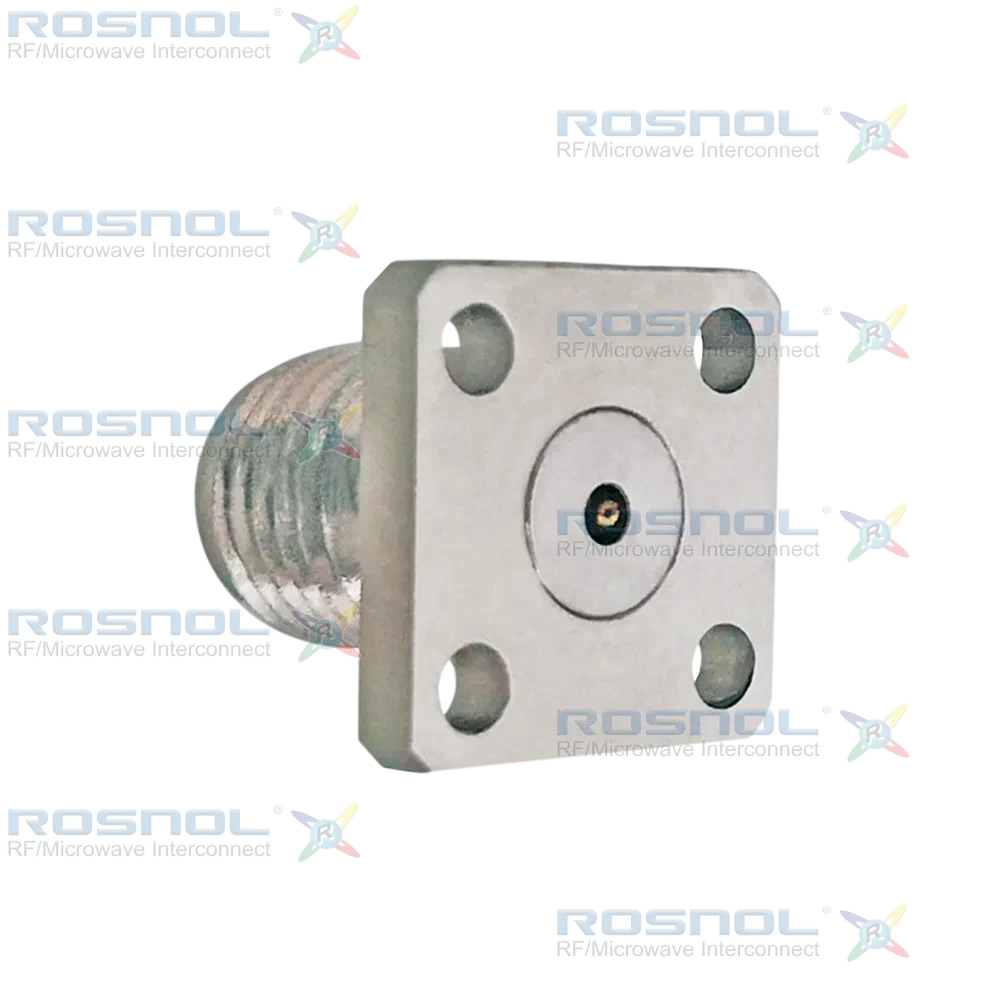

2.92mm Female Field Replaceable Connector, 4 Hole Flange, 6.35mm Hole Spacing, 40 GHz VSWR ≤ 1.15.

ROSNOL K2BF50-0012B/9X is a high-performance 2.92mm Jack (Female) RF connector designed for broadband microwave applications from DC to 40 GHz. This 50 Ohm straight field replaceable connector features a compact 4-hole flange mount configuration with 6.35 mm (.250 inch) hole spacing and a 0.30 mm (.012 inch) pin size interface. Electrical specifications include VSWR ≤1.10 up to 27 GHz and ≤1.15 through 40 GHz, insertion loss ≤0.3 dB, insulation resistance ≥5 GΩ, and RF leakage ≥100 dB up to 1 GHz. These performance characteristics support accurate signal transmission in precision RF systems.

The connector is constructed with a gold-plated beryllium copper center contact featuring non-magnetic nickel-phosphorus underplating for reliable conductivity and wear resistance. The passivated stainless-steel body enhances durability and corrosion protection, while the PS insulator provides stable electrical characteristics. Mechanical features include a screw-lock coupling mechanism, minimum 500 mating cycles, center contact captivation of at least 20 N, and a recommended coupling torque of 0.80 Nm to 1.10 Nm. The operating temperature range extends from -65°C to +155°C.

This 2.92mm Jack (Female) connector is ideal for microwave instrumentation, RF communication infrastructure, aerospace electronics, radar systems, and laboratory measurement platforms. Its combination of compact flange mounting, broadband performance, and field replaceable construction makes it a practical solution for demanding RF and microwave interconnect applications.
