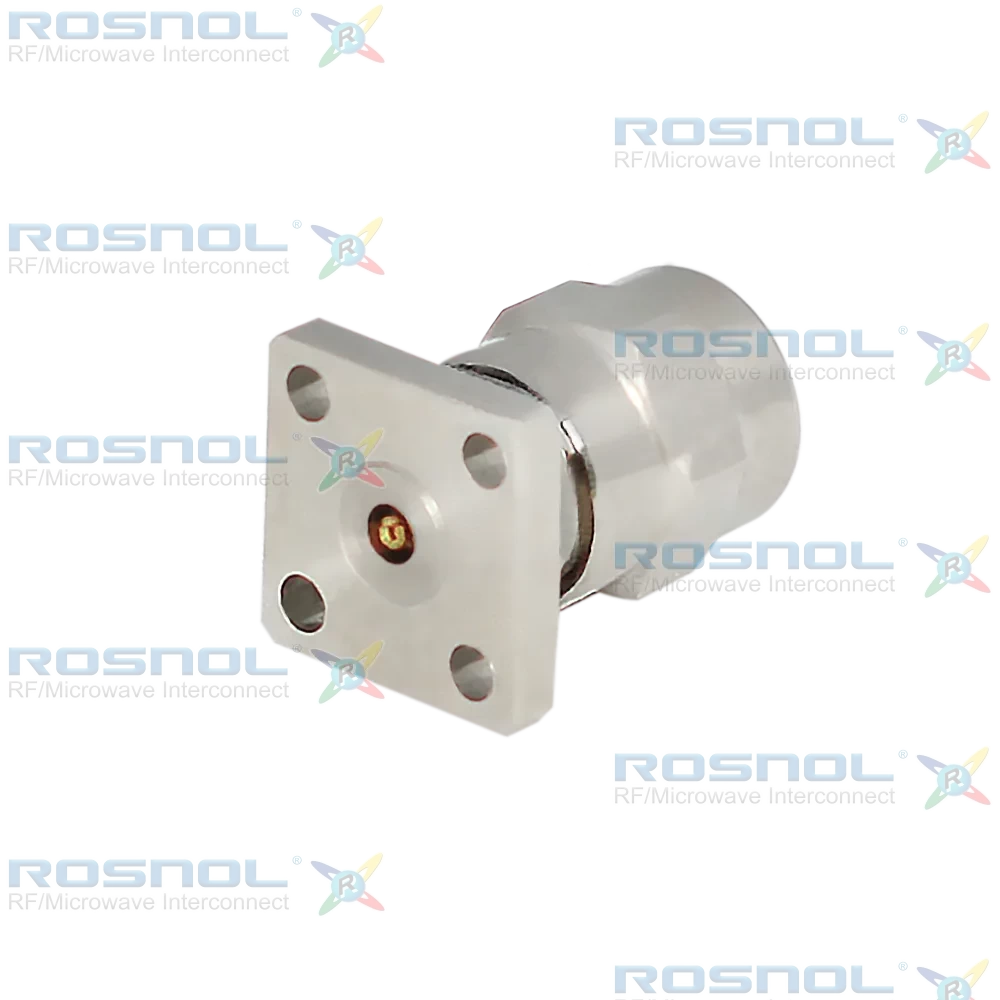

2.92mm Male Field Replaceable, 40 GHz

Order No:K1BF50-0012B/9XX
Add Cart

Key Specifications

Type Design:
Precision
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
40
VSWR, Max:
1.20
Connector Series:
2.92mm
Connector Gender:
Plug (Male)
Connection Method:
Threaded (Screw-lock)
Mount Method:
4 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Accepts Pin ∅0.30 [.012]

Description

2.92mm Male Field Replaceable Connector, 4 Hole Flange, 6.35mm Hole Spacing, 0.12" Accept Pin, 40 GHz VSWR ≤ 1.2.

ROSNOL K1BF50-0012B/9XX is a precision 2.92mm Plug (Male) RF connector developed for broadband microwave applications up to 40 GHz. This 50 Ohm straight field replaceable connector incorporates a 4-hole flange mounting configuration with 6.35 mm (.250 inch) hole spacing and a 0.30 mm (.012 inch) pin size. Electrical performance includes VSWR ≤1.15 through 27 GHz and ≤1.20 through 40 GHz, insertion loss ≤0.3 dB, and RF leakage ≥100 dB up to 1 GHz, supporting reliable signal integrity across the operating frequency range.

Constructed with a gold-plated beryllium copper center contact and non-magnetic nickel-phosphorus underplating, the connector delivers excellent electrical conductivity and contact reliability. The passivated stainless-steel body and coupling nut provide corrosion resistance and mechanical strength, while PEI/PTFE insulation and a silicone rubber gasket contribute to stable electrical and environmental performance. Mechanical features include a screw-lock coupling system, center contact captivation ≥20 N, and durability exceeding 500 mating cycles. The connector operates across a temperature range of -65°C to +155°C.

This 2.92mm Plug (Male) connector is suitable for microwave modules, RF communication systems, test instrumentation, aerospace electronics, radar subsystems, and research laboratories. Its compact flange design and high-frequency capability make it an effective interconnect solution for precision RF and microwave applications.
