2.92mm Female Field Replaceable, 40 GHz

Order No:K2BT50-0009A/9X
Add Cart

Key Specifications

Type Design:
Precision
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
40
VSWR, Max:
1.15
Connector Series:
2.92mm
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Accepts Pin ∅0.23 [.009]

Description

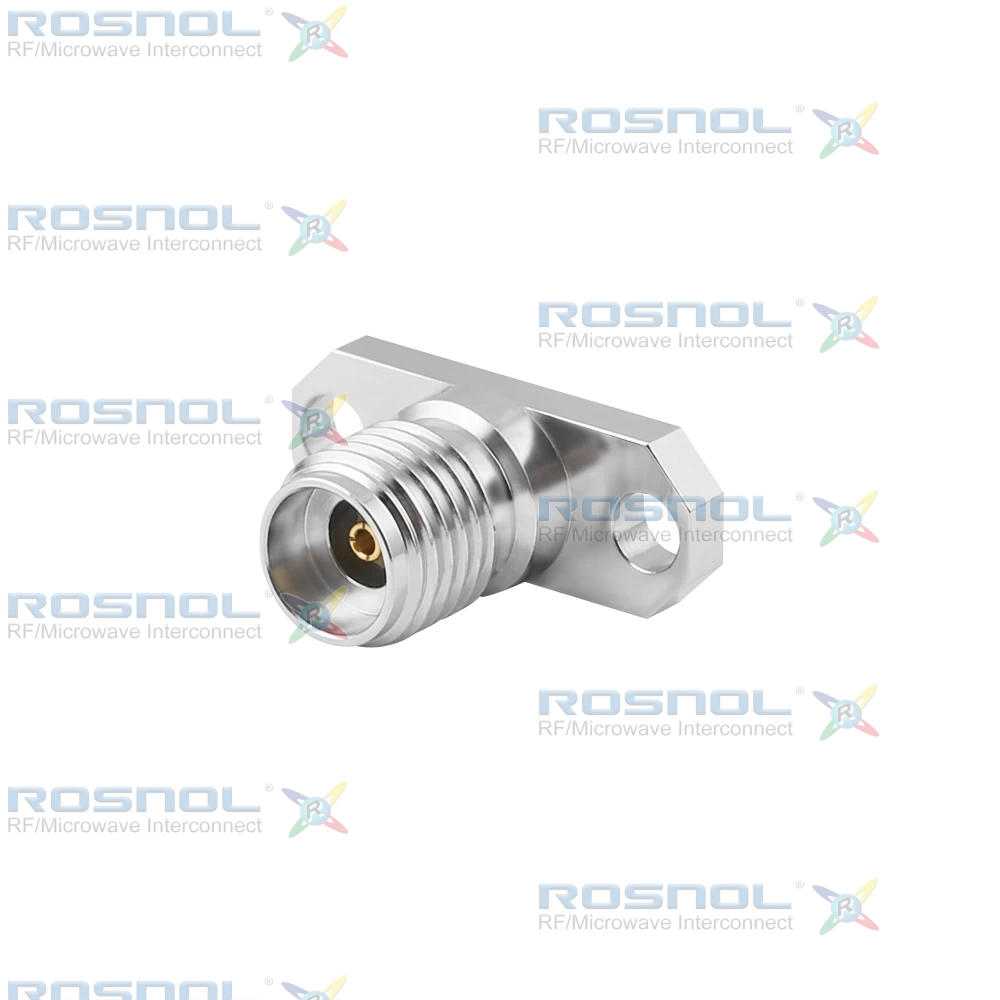

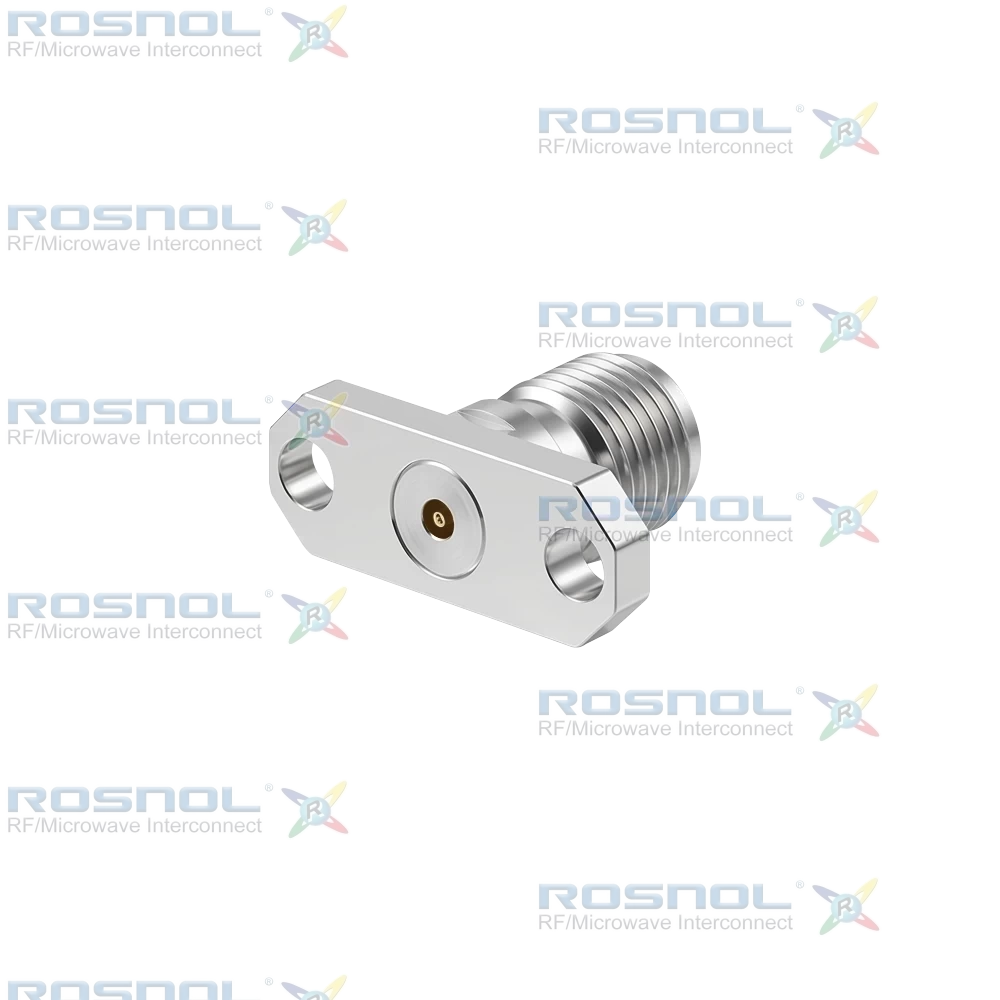

2.92mm Female Field Replaceable Connector, 2 Hole Flange, 12.22mm Hole Spacing, .009 Accepts Pin, 40 GHz VSWR ≤ 1.15.

ROSNOL K2BT50-0009A/9X is a precision 2.92mm Jack (Female) RF connector designed for high-frequency microwave and millimeter-wave applications. This straight field replaceable connector features a two-hole flange mounting configuration with 12.22 mm hole spacing and supports frequencies from DC to 40 GHz. With a characteristic impedance of 50 Ohms, VSWR of ≤1.10 up to 27 GHz and ≤1.15 up to 40 GHz, together with insertion loss of ≤0.3 dB, the connector provides excellent signal integrity for demanding RF interconnect systems.

The connector utilizes a gold-plated beryllium copper center contact with non-magnetic nickel-phosphorus underplating to ensure reliable conductivity and wear resistance. The body is manufactured from passivated stainless steel for long-term durability, while the PS insulator provides stable dielectric performance. A screw-lock coupling mechanism, mechanically captivated center contact, and minimum 500 mating cycles contribute to secure and repeatable mating performance. Additional features include insulation resistance of ≥5 GΩ, RF leakage of ≥100 dB up to 1 GHz, and an operating temperature range from -65°C to +155°C.

This 2.92mm Jack (Female) connector is ideal for RF test equipment, microwave instrumentation, communication infrastructure, aerospace electronics, radar systems, and laboratory measurement platforms. The field replaceable design enables convenient maintenance while maintaining consistent RF performance, making it a dependable solution for precision microwave applications.
