2.92mm Female Field Replaceable, 40 GHz

Order No:K2BT50-0012A/9X
Add Cart

Key Specifications

Type Design:
Precision
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
40
VSWR, Max:
1.15
Connector Series:
2.92mm
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Accepts Pin ∅0.30 [.012]

Description

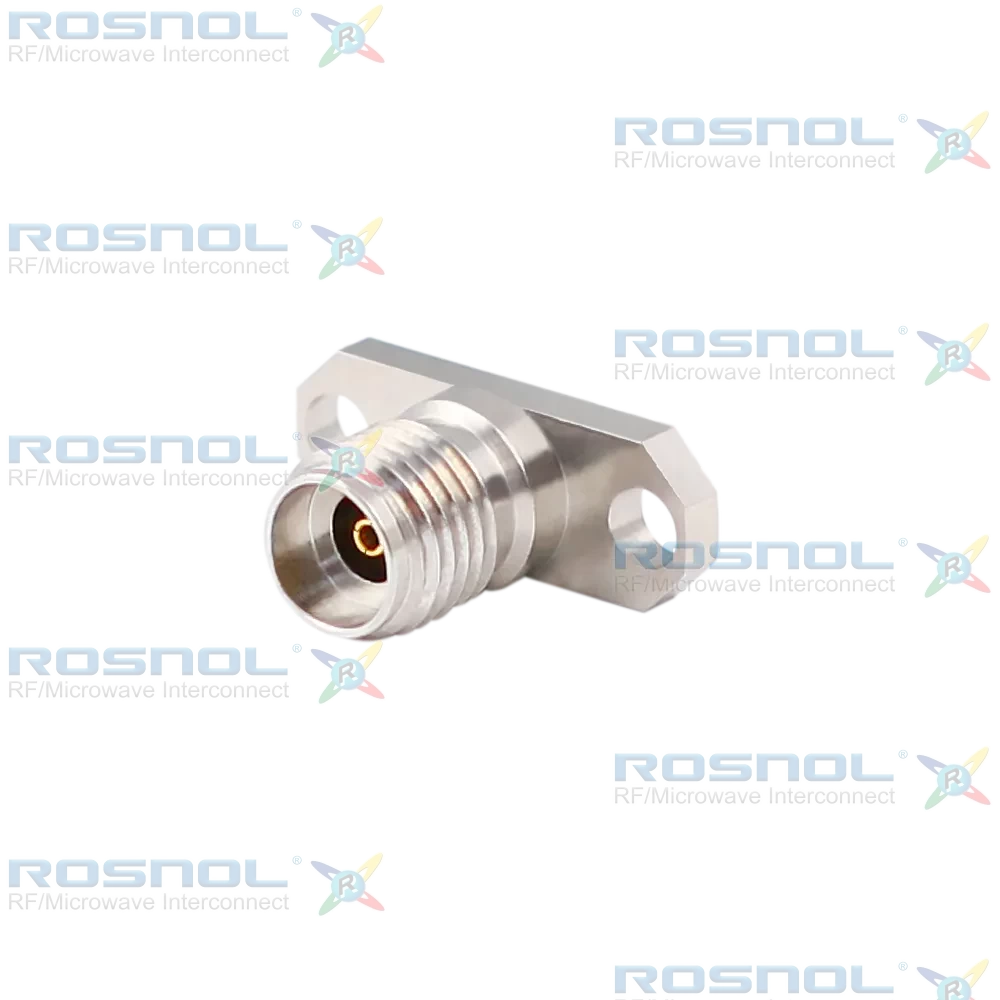

2.92mm Female Field Replaceable Connector, 2 Hole Flange, 12.22mm Hole Spacing, .012 Accepts Pin, 40 GHz VSWR ≤ 1.15.

ROSNOL K2BT50-0012A/9X is a high-performance 2.92mm Jack (Female) RF connector designed for broadband microwave applications operating from DC to 40 GHz. This straight field replaceable connector incorporates a two-hole flange mounting interface with 12.22 mm hole spacing, providing secure installation and reliable RF connectivity in demanding environments. With a nominal impedance of 50 Ohms, insertion loss ≤0.3 dB, and VSWR ≤1.10 through 27 GHz and ≤1.15 through 40 GHz, the connector supports accurate high-frequency signal transmission.

The connector is manufactured with a beryllium copper center contact featuring gold plating over non-magnetic nickel-phosphorus underplating for superior conductivity and wear resistance. Its passivated stainless-steel body enhances mechanical durability and corrosion protection, while the PS insulator maintains consistent electrical performance. The screw-lock coupling system, mechanically captivated center contact, and durability exceeding 500 mating cycles contribute to dependable long-term operation. The connector also provides insulation resistance of at least 5 GΩ and RF leakage of 100 dB minimum up to 1 GHz.

Suitable for RF instrumentation, microwave test benches, communication infrastructure, radar systems, and aerospace applications, this 2.92mm Jack (Female) connector delivers reliable broadband RF performance. Its field replaceable structure reduces maintenance complexity while ensuring stable operation in critical RF and microwave interconnection systems.
