Key Specifications
Type Design:
Standard
Connection Type:
Between Series
Connector 1 Series:
N
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
F
Connector 2 Gender:
Plug (Male)
Body Style:
Straight
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
2.0
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Nickel
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Nickel
VSWR, Max:
1.25
Impedance 1(Ohm):
50
Impedance 2(Ohm):
75
Description

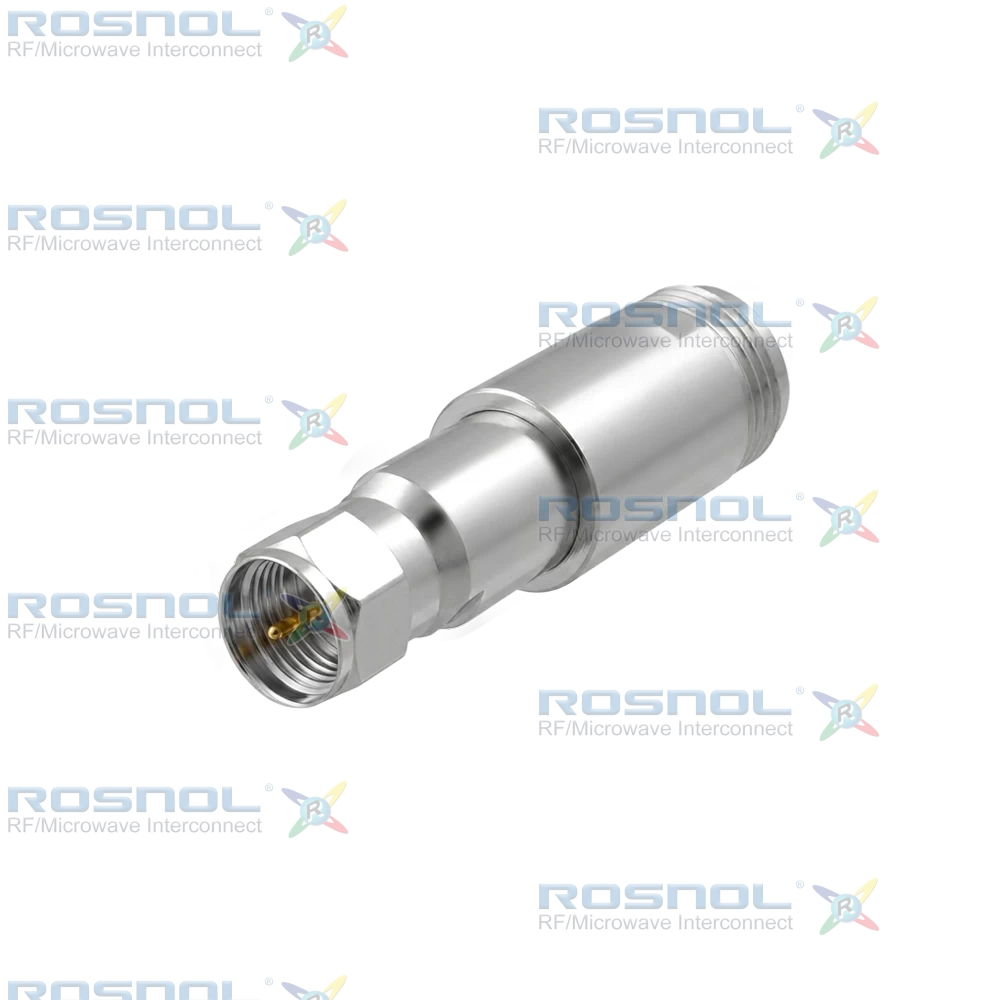

N 50 Ω Jack to F 75 Ω Plug Impedance Matching Pad | DC to 2 GHz
The ROSNOL MP-N25F17A-2G/H3-H33 impedance matching pad is designed to enable accurate impedance transition between N 50 Ω jack (female) and F 75 Ω plug (male) interfaces. Operating from DC to 2 GHz, the device provides a VSWR of ≤ 1.25 with an insertion loss of 5.7 dB ± 0.5 dB. The average power handling capability is rated at 2 W at +25 °C, with peak power support up to 250 W.The MP-N25F17A-2G/H3-H33 utilizes screw-lock coupling mechanisms on both N and F interfaces to ensure secure and repeatable mating. Center contacts are made from phosphor bronze with gold plating over nickel underplating. The connector body and coupling nut are constructed from nickel-plated brass. PTFE insulators provide stable dielectric characteristics and long-term reliability.
