HN Female Bulkhead Connector, DC-4 GHz

Order No:HN2BF50-3607A/G3
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
4.0
VSWR, Max:
1.30
Connector Series:
HN
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
Bulkhead
Body Material:
Brass
Body Plating:
Nickel
Captivated Type:
Mechanical Captivation
Bankend Type:
Solder End

Description

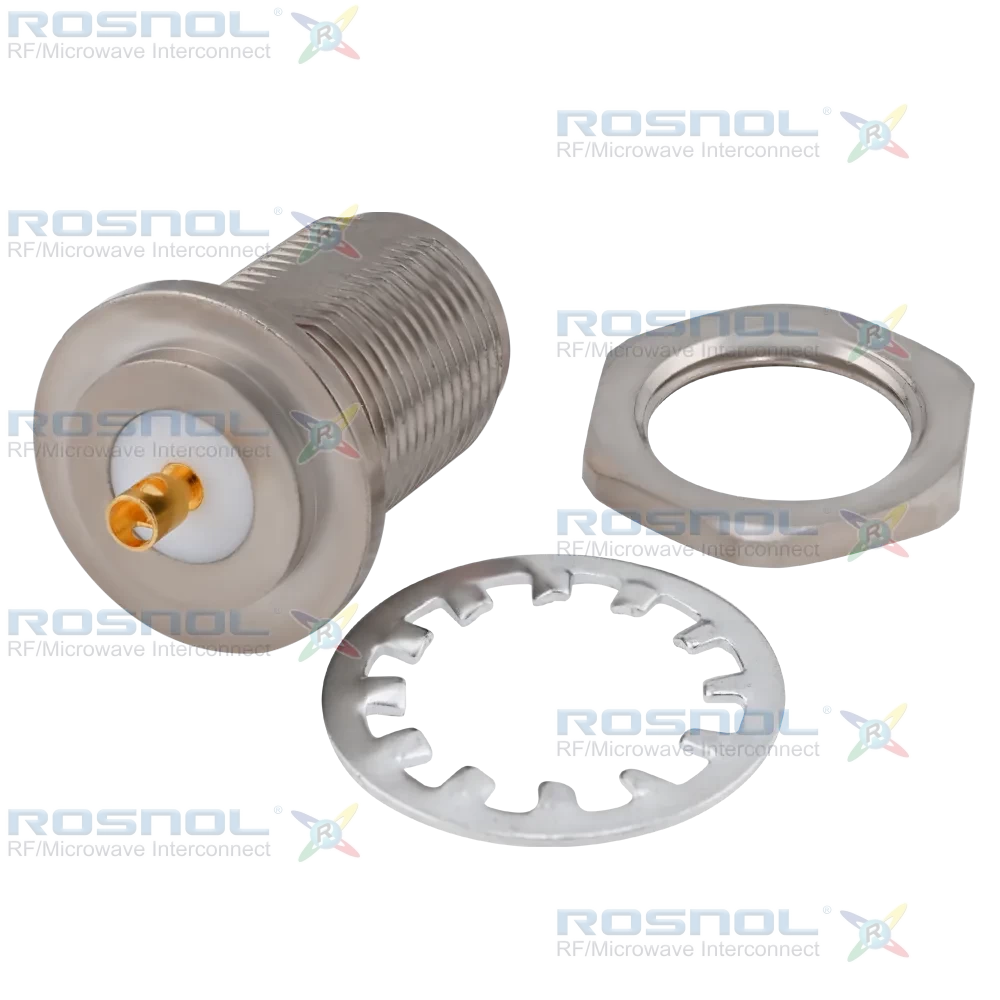

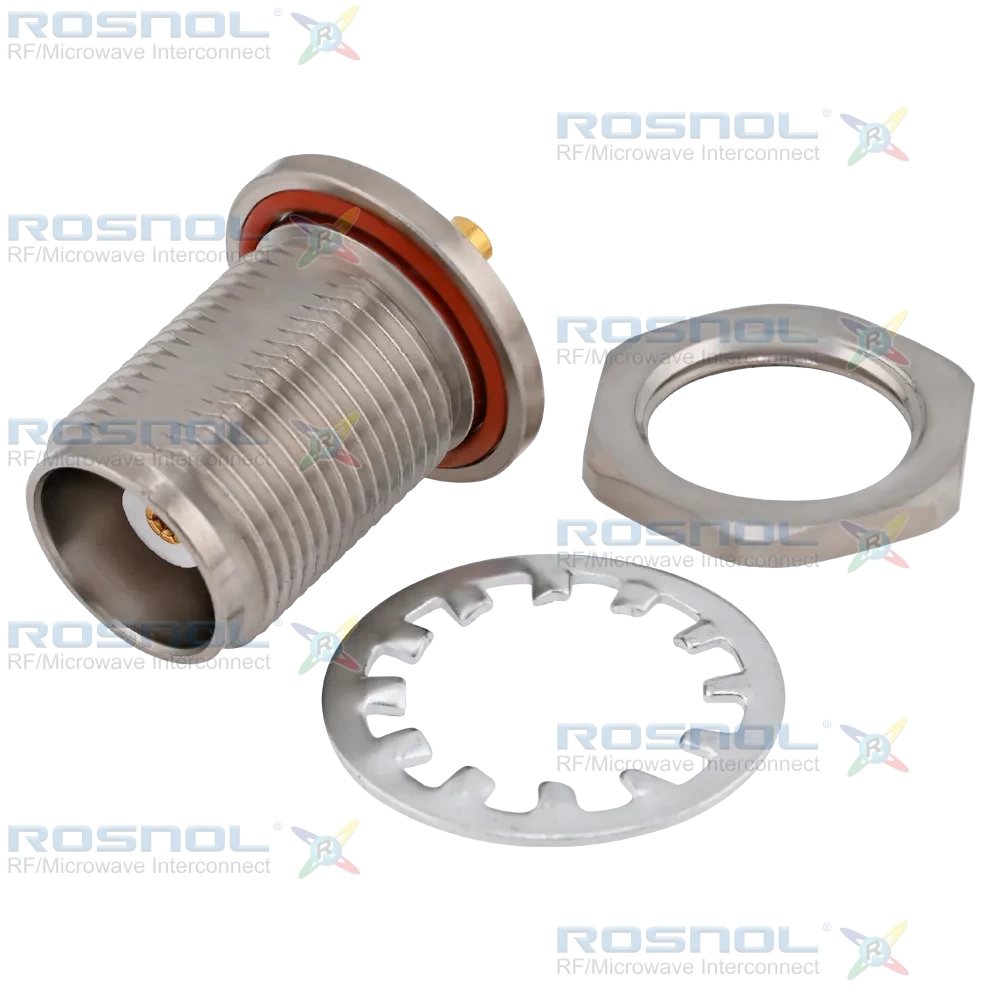

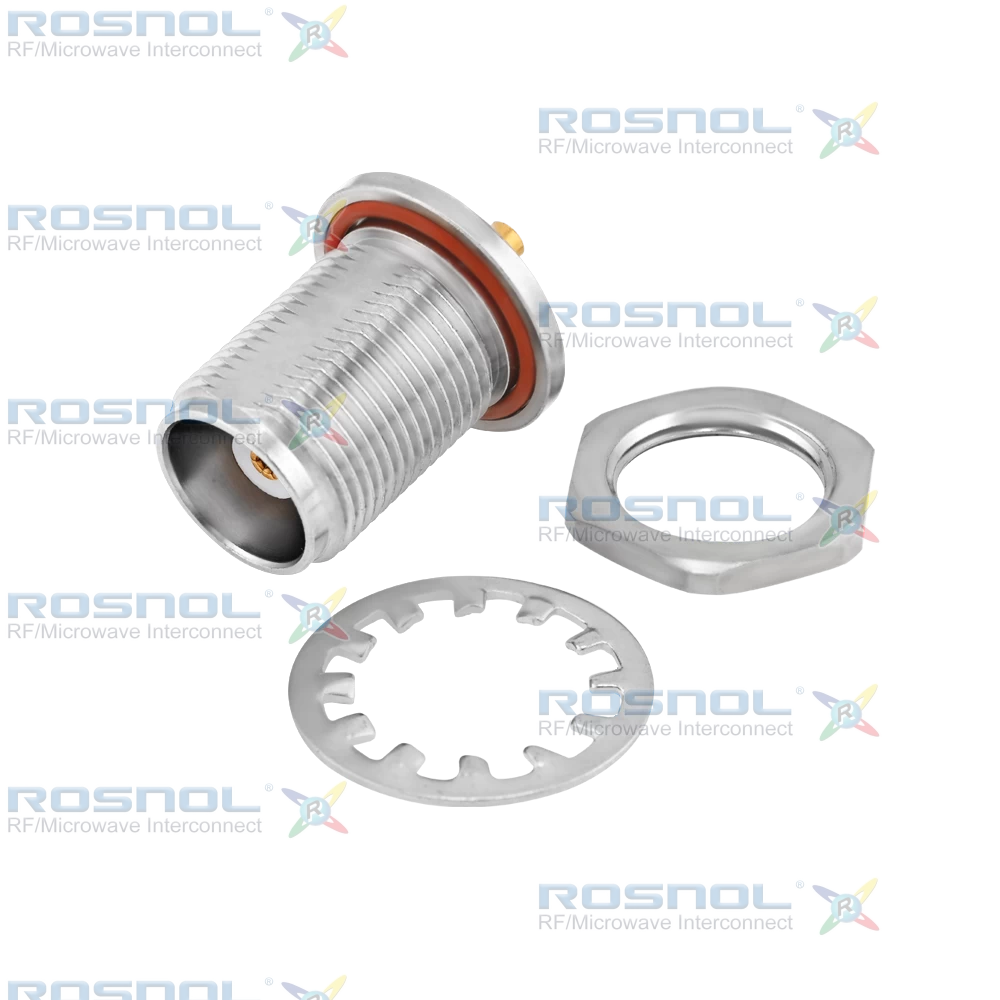

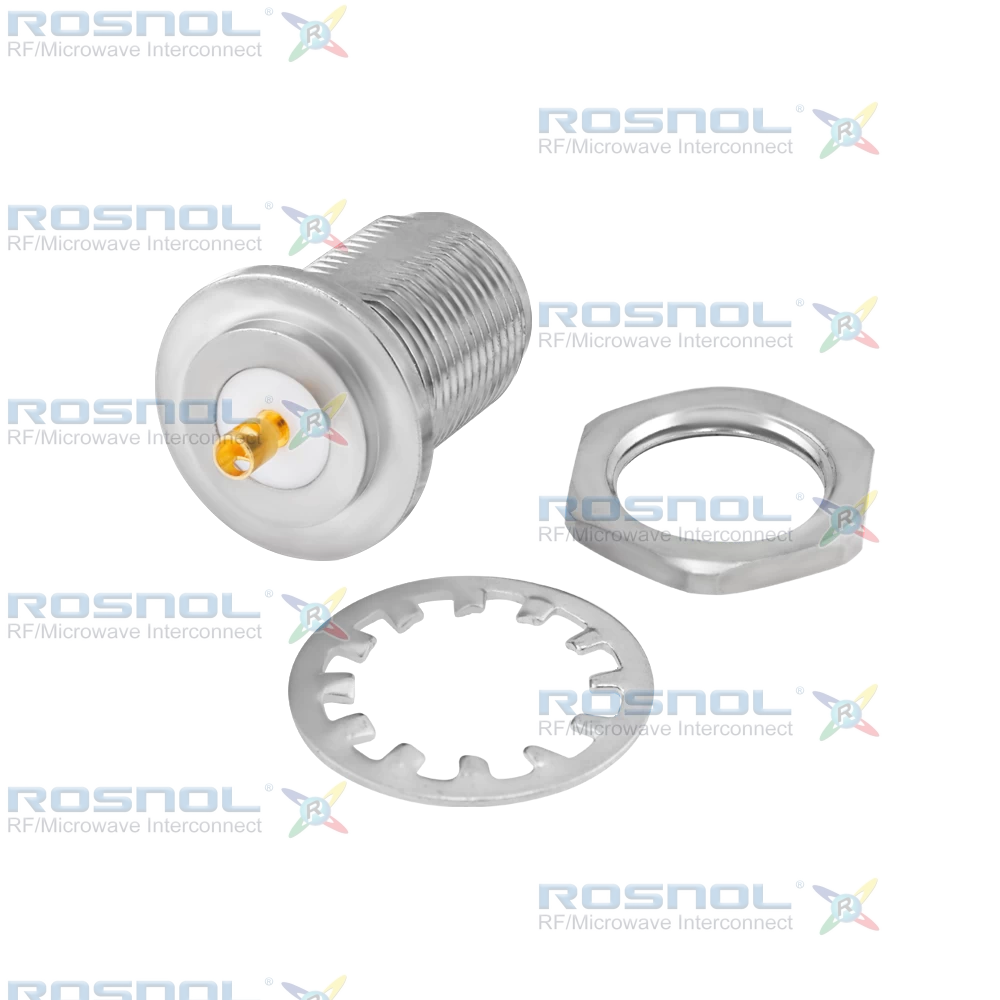

HN Female Bulkhead Mount Hermetically Sealed Connector, with Turret Terminal, DC-4 GHz VSWR ≤ 1.3.

The ROSNOL HN2BF50-3607A/G3 is a 50 Ω HN female bulkhead-mount hermetically sealed connector designed for high-reliability RF applications requiring secure panel mounting and effective environmental isolation. Featuring a solder attachment turret terminal, this connector operates from DC to 4 GHz with a maximum VSWR of 1.3 and insertion loss of no more than 0.05 × √F (GHz) dB. It also provides RF leakage performance of ≥ 128 dB from DC to 1 GHz, supporting excellent shielding effectiveness and signal integrity in critical RF systems.

The connector utilizes a phosphor bronze center contact with silver plating to ensure efficient signal transfer and low contact resistance. Its brass body is protected with a durable nickel finish to improve corrosion resistance and mechanical strength, while the PTFE insulator maintains stable dielectric performance. The hermetically sealed construction enhances environmental protection for sensitive RF equipment. A screw-lock coupling mechanism provides secure mating, with a minimum durability rating of 500 mating cycles and recommended coupling torque between 0.7 Nm and 1.1 Nm. The connector operates across a wide temperature range from -65°C to +165°C and is RoHS compliant.

Ideal for RF communication systems, military electronics, test and measurement equipment, shielded enclosures, and high-reliability industrial applications, the HN2BF50-3607A/G3 delivers secure connectivity and dependable RF performance. Its hermetically sealed design, excellent RF leakage characteristics, and rugged mechanical construction make it a valuable solution for demanding RF environments.
