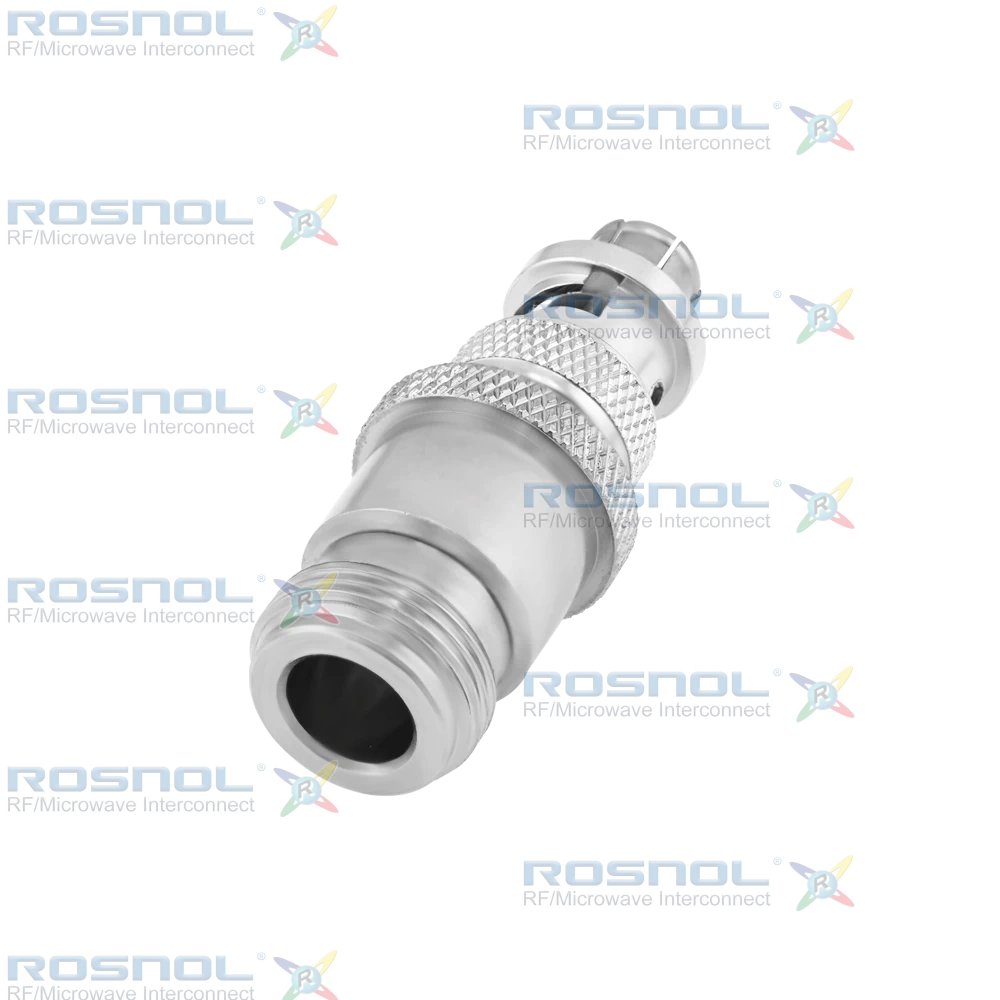

SHV Male to N Female Adapter, DC-200 MHz

Order No:AD-SV1N25A/944-94
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
Between Series
Connector 1 Series:
SHV
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
N
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Bayonet
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
200MHz
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Copper-Tin-Zinc Alloy
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Copper-Tin-Zinc Alloy
VSWR, Max:
N/A

Description

SHV Male to N Female Straight Adapter, DC-200 MHz, 50 Ω Impedance.

ROSNOL AD-SV1N25A/944-94 is a 50 Ω RF adapter featuring an SHV Plug (Male) to N Jack (Female) straight configuration. Designed for low-frequency RF and high-voltage applications, it supports frequencies from DC to 200 MHz. The bayonet-lock SHV interface and threaded N-type connection provide secure mating and dependable signal transmission for laboratory, instrumentation, and specialized RF systems.

The adapter is constructed with beryllium copper center contacts, brass bodies, PTFE insulators, and a silicone rubber gasket. Both SHV and N contacts utilize gold plating over non-magnetic nickel-phosphorus underplating to ensure excellent conductivity and low contact resistance. The bodies and SHV coupling nut feature copper-tin-zinc alloy plating, enhancing corrosion resistance and long-term mechanical durability.

With a minimum mating life of 500 cycles and an operating temperature range from -65°C to +165°C, the AD-SV1N25A/944-94 provides reliable performance in high-voltage test equipment, measurement systems, scientific instruments, RF laboratories, and specialized signal transmission applications requiring SHV-to-N interface conversion.
