N to N Female Bulkhead Adapter, DC-12 GHz

Order No:AD-N2N25A-BH/90-90
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
N
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
N
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
Bulkhead
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
12
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Silver
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Silver
VSWR, Max:
1.20

Description

N Female to N Female Bulkhead RF Adapter, 50Ω, DC-12 GHz, VSWR 1.20, silver-plated brass body.

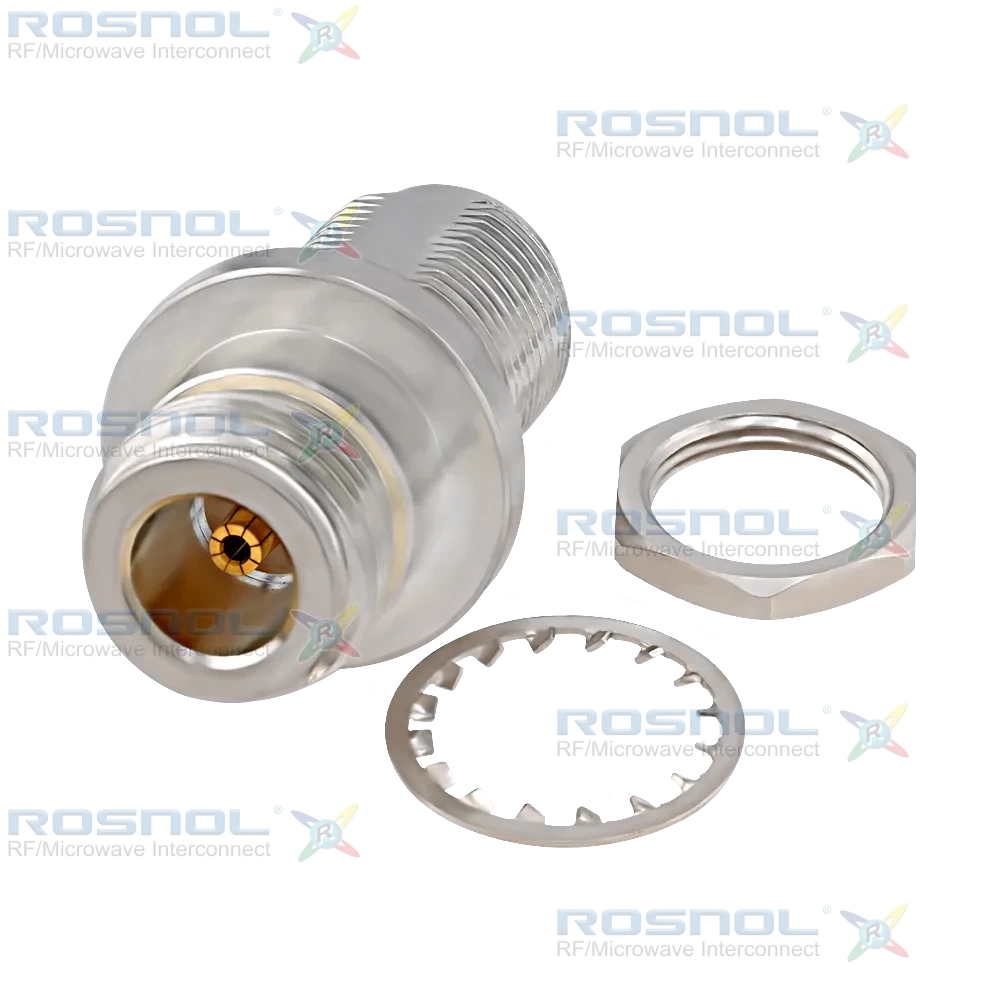

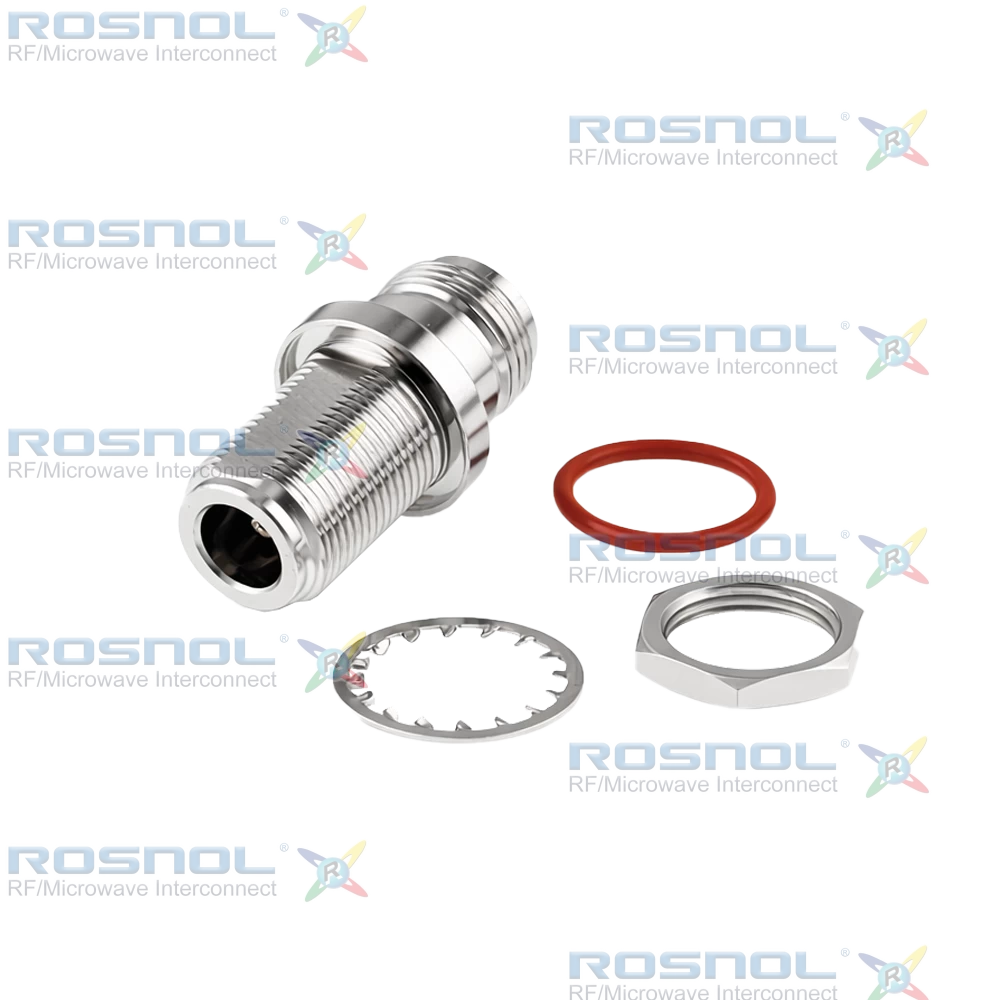

ROSNOL AD-N2N25A-BH/90-90 is an N Jack (Female) to N Jack (Female) Bulkhead RF Adapter engineered for high-performance RF interconnection and secure panel-mount installations. With 50 Ω impedance, DC to 12 GHz frequency coverage, and VSWR ≤ 1.20, this adapter supports reliable signal transmission across broadband RF and microwave systems.

The adapter incorporates beryllium copper center contacts with gold plating over a non-magnetic nickel-phosphorus underplating. The connector bodies are manufactured from brass with silver plating, while PTFE insulators ensure stable dielectric performance. Nickel-plated brass washers and fastening nuts provide secure mechanical mounting. Key performance specifications include insulation resistance ≥ 5 GΩ, insertion loss ≤ 0.05 × √F (GHz) dB, working voltage 500 Vrms, power handling up to 1000 W at 1 GHz, and RF leakage ≥ 128 dB up to 1 GHz.

Its bulkhead mounting configuration and screw-on N interfaces provide secure installation and long service life with a minimum of 500 mating cycles. AD-N2N25A-BH/90-90 is suitable for RF communication infrastructure, antenna systems, microwave equipment, test laboratories, and instrumentation applications requiring low-loss, high-reliability RF connectivity.
