Key Specifications
Type Design:
Standard
Connection Type:
Between Series
Connector 1 Series:
N
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
UHF
Connector 2 Gender:
Plug (Male)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
300MHz
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Copper-Tin-Zinc Alloy
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Copper-Tin-Zinc Alloy
VSWR, Max:
N/A
Description

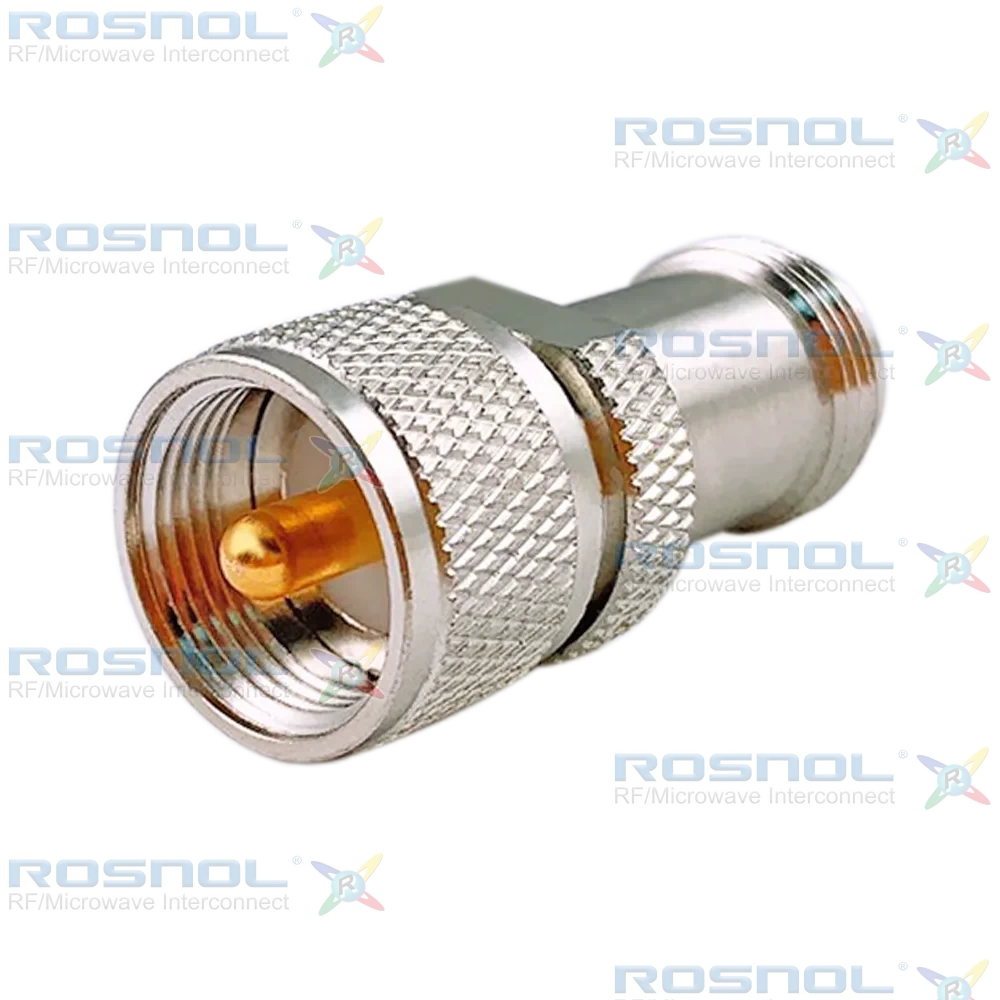

UHF Plug (Male) to N Jack (Female) | Straight Design | Screw-Lock | Brass Body
The ROSNOL AD-U1N25A/H44-H4 is designed for RF systems requiring robust performance from DC to 300 MHz with 50 Ω impedance. It delivers VSWR ≤1.20 and insertion loss ≤0.05√F (GHz) dB for superior signal integrity. Electrical ratings include insulation resistance ≥5 GΩ, center contact resistance ≤5 mΩ (UHF) and ≤1 mΩ (N), and outer contact resistance ≤5 mΩ and ≤0.25 mΩ respectively. Coupling mechanisms include screw-lock on both ends, with ≥500 mating cycles and center contact captivation ≥30 N (UHF) and ≥28 N (N).The center contacts are phosphor bronze with gold plating over nickel underplating for durability and conductivity. Bodies and coupling nuts are brass with copper-tin-zinc alloy finish, while insulators are PTFE for excellent dielectric performance. A silicone rubber gasket enhances environmental sealing. The adapter operates reliably from -55°C to +149°C, meeting the demands of harsh environments.
ROSNOL’s precision-engineered RF adapters deliver consistent performance across high-frequency applications. Manufactured in ISO 9001-certified facilities and fully compliant with RoHS and REACH, they provide a cost-effective alternative to leading European and American brands. Customization for materials, plating, and mechanical design is available to meet specialized requirements.
