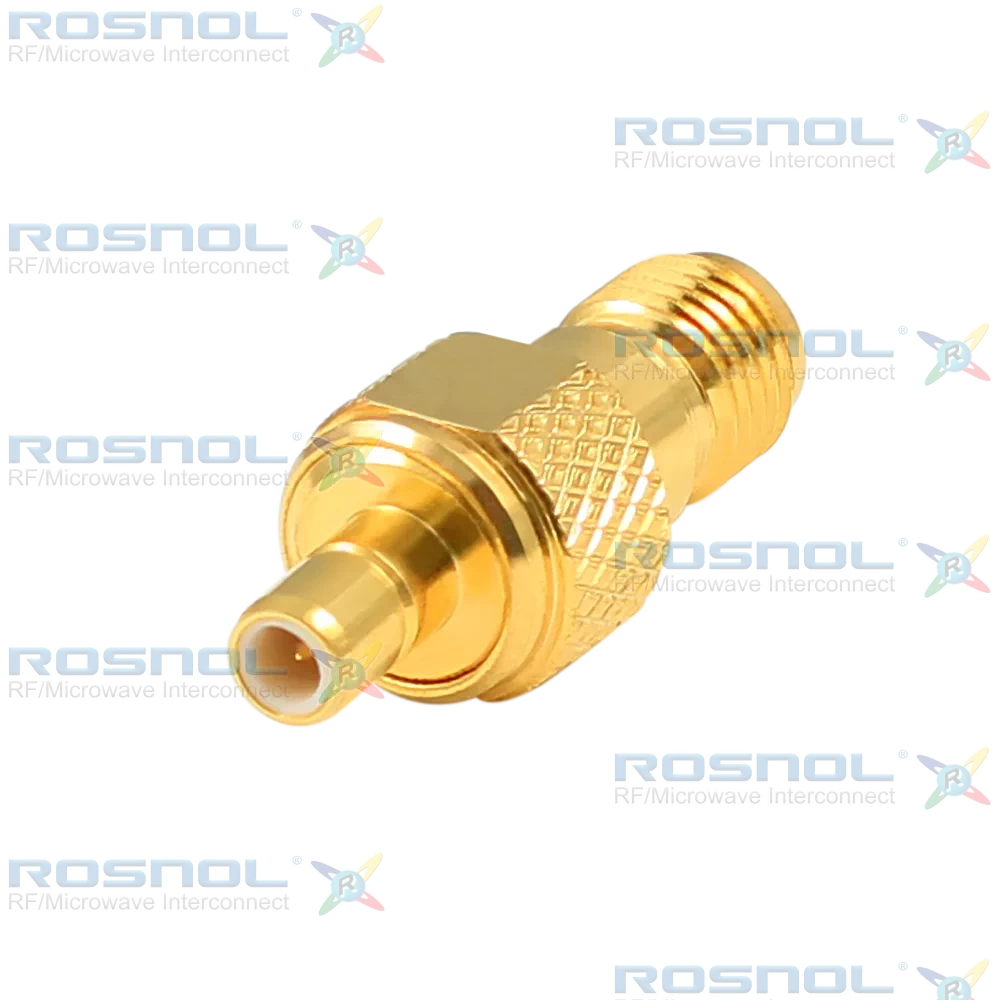

SMA Female to SMB Male Adapter, DC-4 GHz

Order No:AD-S1A25A/911-91
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
Between Series
Connector 1 Series:
SMA
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
SMB
Connector 2 Gender:
Plug (Male)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Snap-On
Frequency, Max (GHz):
4.0
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
VSWR, Max:
1.35

Description

SMA Female to SMB Male Straight Adapter, DC-4 GHz, VSWR ≤ 1.35, 50 Ω Impedance.

ROSNOL AD-S1A25A/911-91 is a high-performance RF adapter with an SMB Plug (Male) to SMA Jack (Female) configuration. Designed with 50 Ω impedance, it supports frequencies from DC to 4 GHz and delivers VSWR ≤ 1.35 with low insertion loss. The adapter combines SMB snap-on connectivity with SMA threaded coupling, providing secure and efficient RF signal transmission in compact equipment and communication systems.

The adapter features beryllium copper center contacts, brass bodies, and PTFE dielectric insulation. All conductive components are gold plated over non-magnetic nickel-phosphorus underplating to ensure excellent conductivity, durability, and corrosion resistance. Electrical performance includes insulation resistance ≥ 1 GΩ, RF leakage up to 55 dB at 1 GHz, working voltage of 250 Vrms, and low contact resistance for signal integrity.

With a minimum mating life of 500 cycles and an operating temperature range from -65°C to +165°C, the AD-S1A25A/911-91 is suitable for RF test equipment, wireless communication devices, instrumentation, antennas, and microwave subsystem integration. Its low VSWR and stable electrical characteristics help minimize signal reflection and transmission loss across demanding RF applications.
