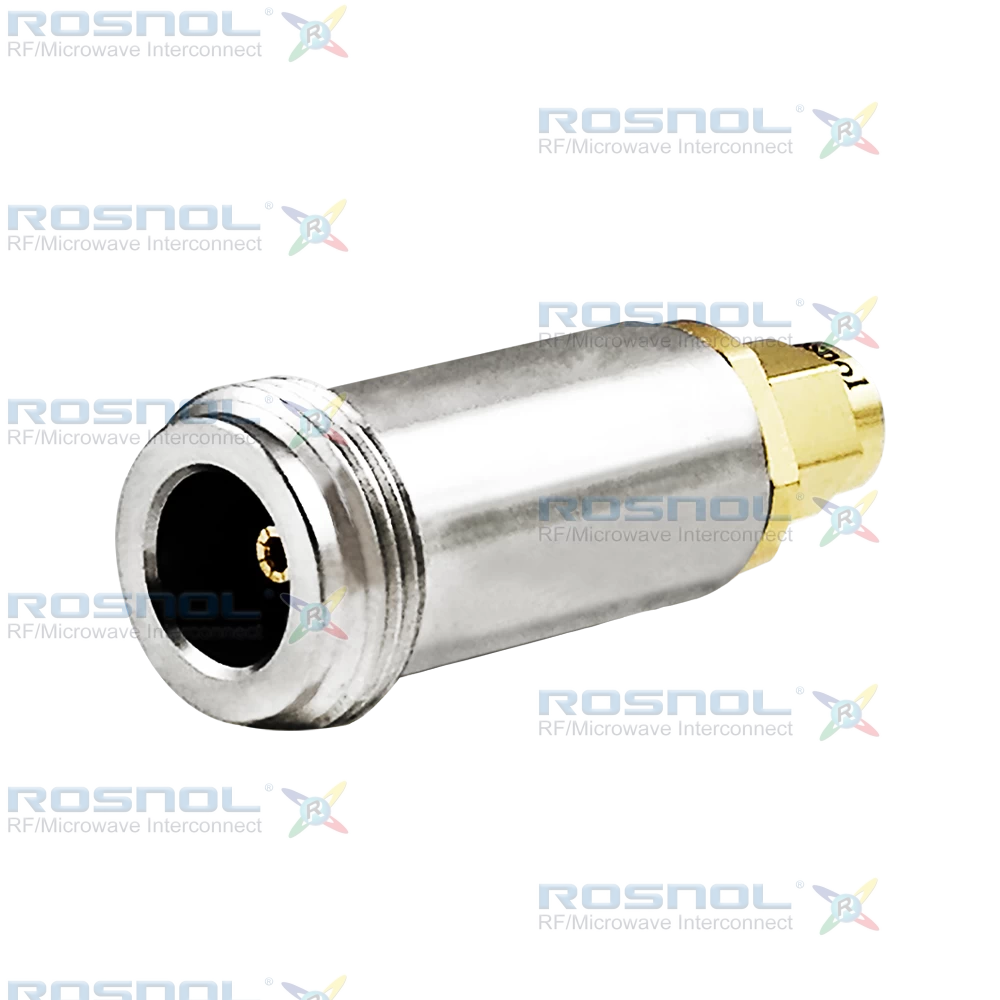

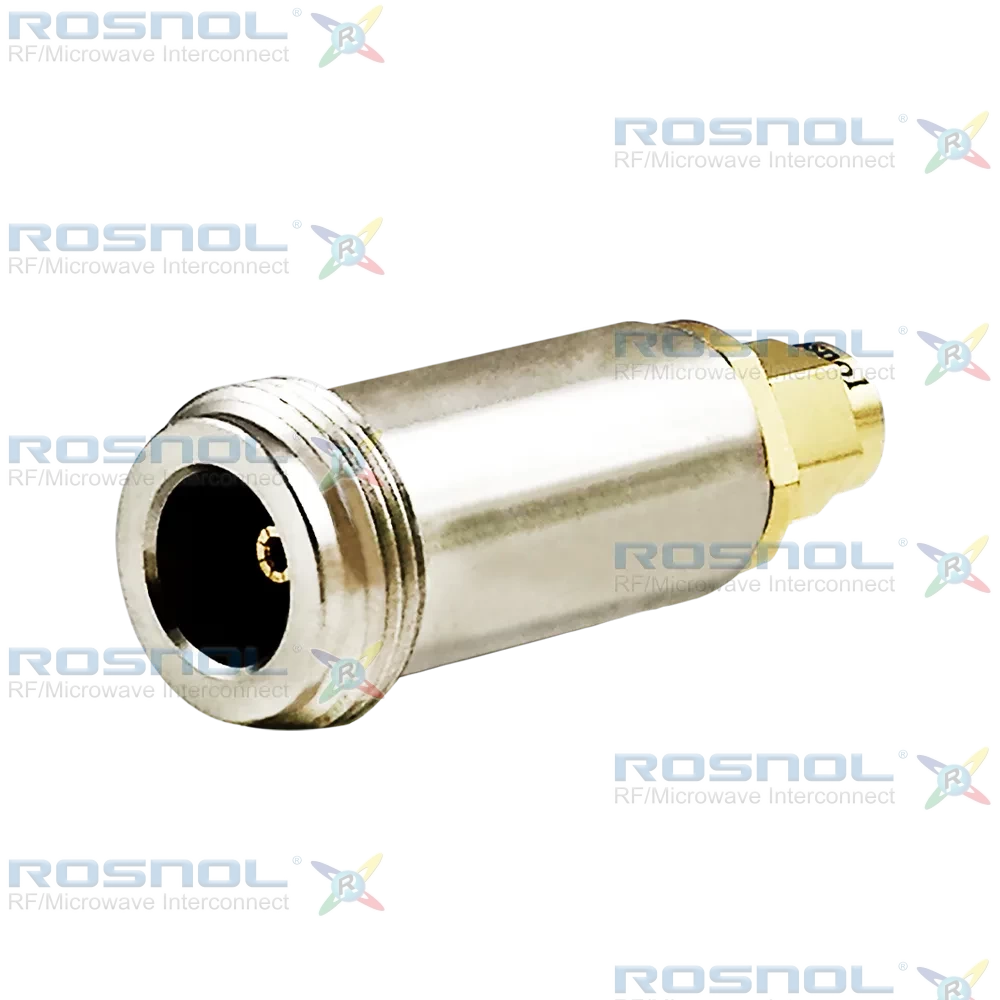

SMA Male to Precision N Female Adapter, 18 GHz

Order No:AD-A1PCN25A/911-9X
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
SMA
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
Precision N
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.15

Description

SMA Male to Precision N Female RF Adapter, 50Ω, DC-18 GHz, VSWR ≤1.15, low-loss signal transmission.

ROSNOL AD-A1PCN25A/911-9X is a straight RF Adapter engineered to interface SMA Plug (Male) and Precision N Jack (Female) connectors. Rated for 50 Ω impedance and operation from DC to 18 GHz, the adapter maintains VSWR ≤ 1.15, providing efficient impedance matching and dependable broadband RF performance.

The design incorporates beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating to enhance conductivity and durability. The Precision N body is constructed from passivated stainless steel, while the SMA body and coupling nut utilize gold-plated brass. PTFE and PEI insulators provide electrical stability, and insertion loss is specified at ≤ 0.05 × √F (GHz) dB.

Featuring a precision SMA Male to Precision N Female interface and screw-lock coupling, this adapter is suitable for RF interconnection networks, microwave systems, laboratory measurement equipment, and test & measurement applications. Its robust construction and controlled electrical performance help ensure reliable signal transfer in high-frequency environments.
