SMA Plug (Male) to Precision N Jack (Female) Adapter, DC-18GHz VSWR 1.15

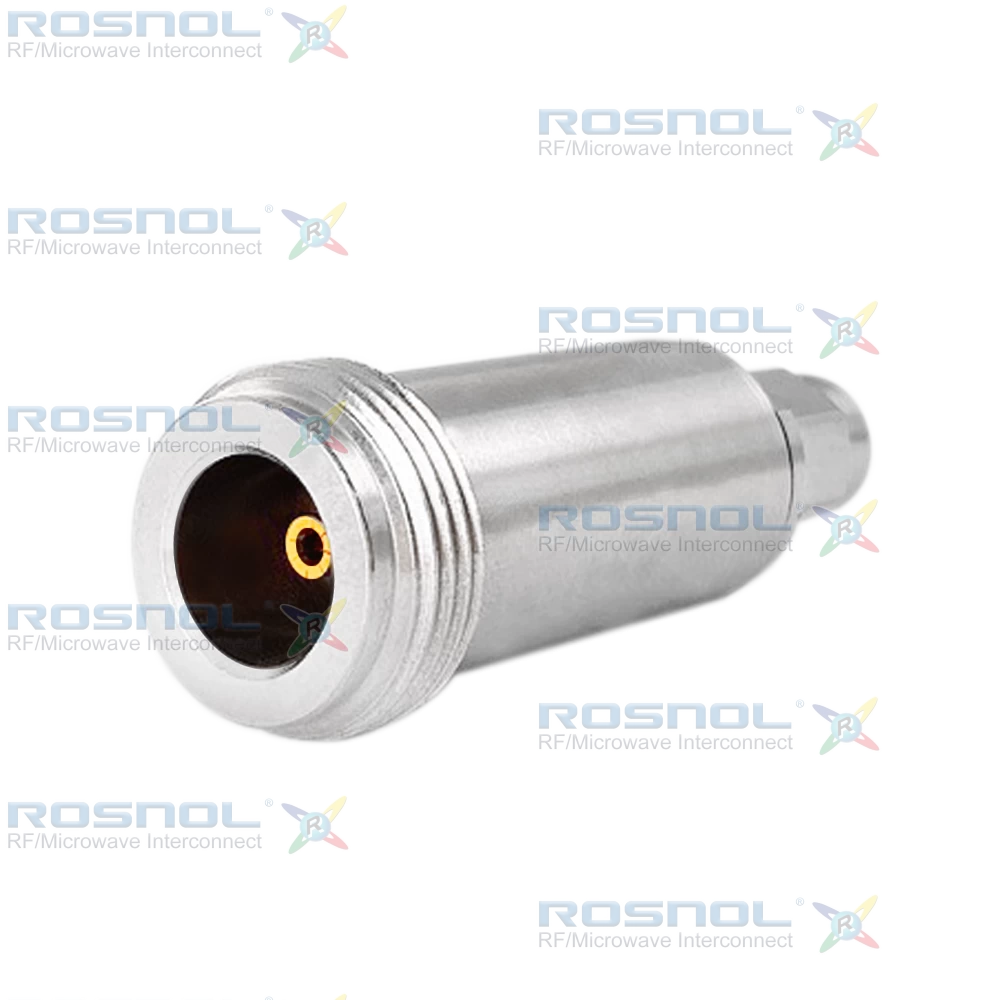

SMA Plug (Male) to Precision N Jack (Female) | Straight Adapter | Screw-lock | Stainless Steel Body

The ROSNOL AD-A1PCN25A/9XX-9X adapter ensures exceptional RF performance with a 50 Ω impedance and frequency coverage from DC to 18 GHz. It delivers VSWR ≤ 1.15 (≥ 23.1 dB return loss), insertion loss ≤ 0.05 × √F (GHz) dB, and insulation resistance ≥ 5 GΩ. Center contact resistance is ≤ 3 mΩ on the SMA side and ≤ 1 mΩ on the Precision N side, while outer contact resistance is ≤ 2 mΩ and ≤ 0.25 mΩ respectively. Rated for 1000 V rms test voltage and 480 V rms working voltage, it supports power handling up to 200 W at 2 GHz with RF leakage ≥ 100 dB up to 1 GHz. Mechanical integrity includes screw-lock coupling, axial captivation ≥ 28 N, and torque range of 0.80–1.10 Nm (SMA) and 0.70–1.10 Nm (N), with a minimum of 500 mating cycles.

Constructed from premium stainless steel with passivated finish for both body and coupling nut, and beryllium copper contacts with 3 μinch gold plating over 80 μinch non-magnetic nickel-phosphorus underplating, this adapter guarantees durability and corrosion resistance. Insulators are PTFE (SMA) and PS (N), complemented by a silicone rubber gasket for environmental sealing. Overall length is 43.8 mm [1.724 in], with hex size 8 mm [.315 in] and thread 5/8-24 UNEF-2A.

ROSNOL’s precision-engineered RF adapters deliver reliable performance across a wide range of RF and microwave systems. Designed to meet the stringent demands of high-frequency signal transmission, ROSNOL adapters offer a cost-effective alternative to products from leading European and American brands. All ROSNOL RF components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring global environmental and safety standards. Customization services for materials, plating, and mechanical design are available to support specialized interconnect requirements.
