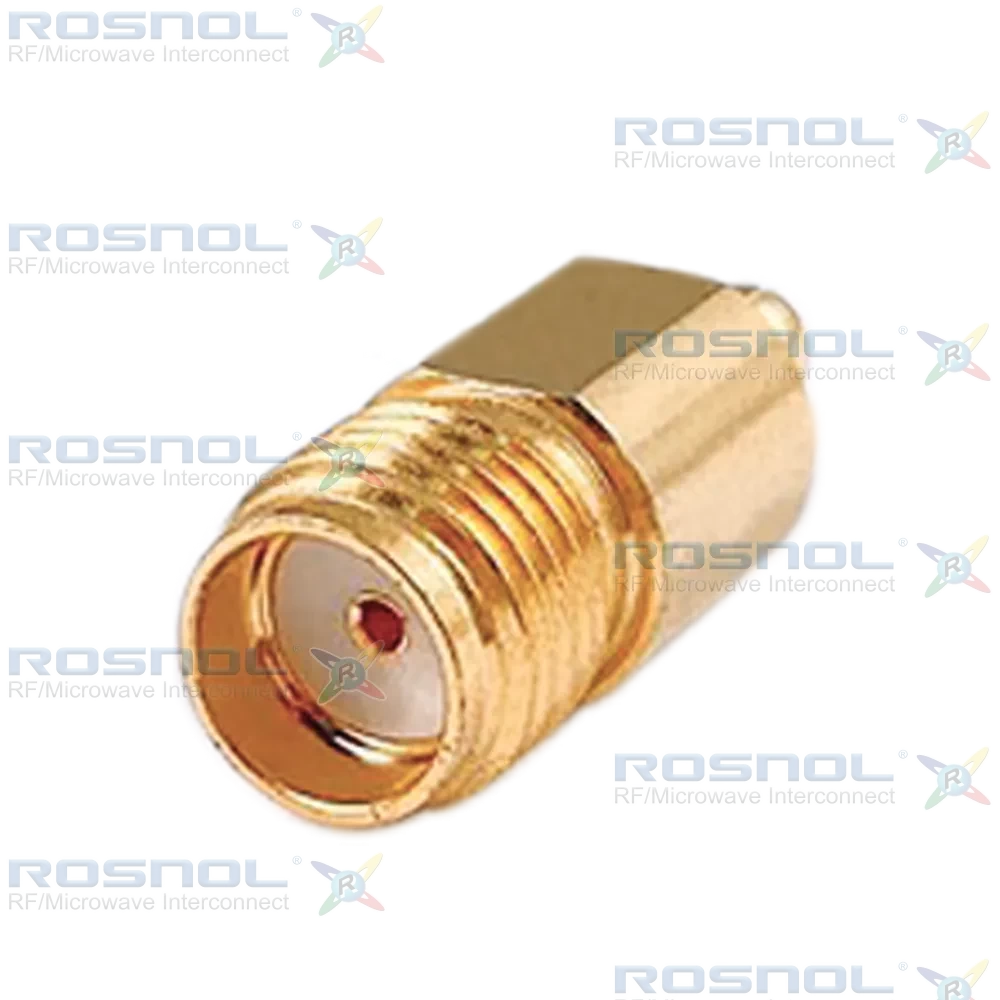

SMA Female to MHFI Male Adapter, DC-6 GHz

Order No:AD-MHFI1A25A/99-91
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
Between Series
Connector 1 Series:
SMA
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
IPEX I (MFHI)
Connector 2 Gender:
Plug (Male)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
6.0
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Gold Plating (Nickel underplated)
Connector 2 Body Material:
Beryllium Copper
Connector 2 Body Plating:
Gold Plating (Nickel underplated)
VSWR, Max:
1.30

Description

SMA Female to IPEX I (MHF I) Male Straight Adapter, DC- 6 GHz, VSWR ≤ 1.3, 50 Ω Impedance.

ROSNOL AD-MHFI1A25A/99-91 is a compact RF adapter featuring an IPEX I Plug (Male) to SMA Jack (Female) configuration. Designed for 50 Ω impedance applications, it supports frequencies from DC to 6 GHz with VSWR ≤ 1.30 and insertion loss below 0.25 dB. This adapter provides a reliable interface between miniature RF modules and standard SMA-connected equipment, making it suitable for wireless communication devices, embedded RF systems, antennas, and testing applications.

The adapter utilizes beryllium copper center contacts with gold plating over nickel underplating to ensure excellent conductivity and signal integrity. The SMA body is manufactured from brass with gold plating, while the IPEX I body uses beryllium copper with gold plating for enhanced durability and contact reliability. PTFE insulators provide stable dielectric performance, and the assembly is designed to withstand up to 500 V rms dielectric voltage.

Combining the compact profile of the IPEX I interface with the robustness of SMA connectivity, this adapter is ideal for RF modules, wireless devices, IoT equipment, embedded systems, and laboratory testing environments. With a durability rating of 500 mating cycles and an operating temperature range from -65°C to +155°C, it offers dependable long-term RF performance.
